EBT-72-1350 Auto 2 Speed | Battery Torque Multiplier, 200 - 1350 Nm, 1'' square drive
The Evotorque Battery Tool (Ebt) Features A New Brushless Motor, Data Memory And Data Transfer Capabilities. Norbar Have Combined This With Their Respected Gearboxes To Deliver A Range Of Fast, Reliable And Accurate Battery Torque Tools.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

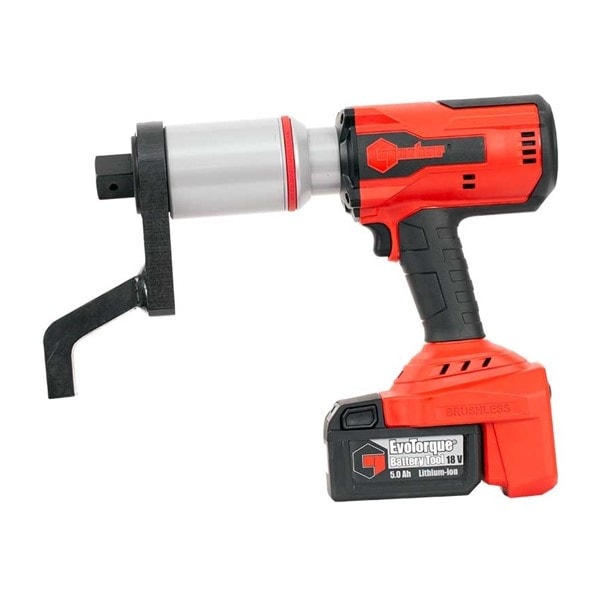

Norbar Battery Torque Multiplier, 200 - 1350 Nm, 1'' square drive
Battery Torque Multiplier, 200 - 1350 Nm, 1'' square drive, model #EBT-72-1350 Auto 2 Speed(180469); available to order from Flexible Assembly Systems. Do you see this Norbar torque multiplier available elsewhere for a different price? Contact Customer Service to price match!
Norbar EBT-72-1350 Auto 2 Speed, 180469, EVOTORQUE® Battery Tool
THE EVOTORQUE® BATTERY TOOL (EBT) FEATURES A NEW BRUSHLESS MOTOR, DATA MEMORY AND DATA TRANSFER CAPABILITIES. NORBAR HAVE COMBINED THIS WITH THEIR RESPECTED GEARBOXES TO DELIVER A RANGE OF FAST, RELIABLE, ACCURATE BATTERY TORQUE TOOLS
Fast: EBT uses a powerful motor coupled with either a single speed or auto two speed gearbox for rapid joint completion times.
Durable: The industrial motor used by the EBT will keep going where most other battery tools will overheat.
Accurate: EBT is a transducer controlled battery powered torque tool designed for accurately applying torque to threaded fasteners. The unique 'intelligent joint sensing' technology continually measures the joint during tightening and when necessary, employs dynamic braking to avoid torque over-shoot due to motor inertia, consistently achieving highly accurate results of ±3% of setting.
Features
- Tool is not constrained by power cable or hose, improving safety, convenience and versatility
- Retains key features and user interface from EvoTorque®2
- Multiple units of torque measurement, including N·m, lbf·ft and kgf·m
- Torque, Torque & Angle with Final Torque and Torque Audit functionality available in 'Advanced' mode
- Optional 'Ease of Use' functionality when in 'Torque Only' mode, minimising operator error
- Display and on-board storage of final torque or torque and angle values
- 3,000 reading memory, time and date stamped
- Clear indication of successful joint application
- USB and Bluetooth® 4.0 data transfer (also called Bluetooth® Smart)
- Complimentary PC software 'EvoLog' for data management and tool configuration
- 12 user IDs can be downloaded to the tool and results can be stored against individual users
- 20 unique stand-alone targets plus 20 unique work group targets for each work group
- Results can be output in CSV (comma-separated values) format for users not able to use EvoLog
- Ability to produce and store real time graphs via EvoLog
- 'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
- 'Operation Direction' feature designed primarily for undoing bolts.
- When doing sequence tightening, it is possible to undo an incorrectly tightened bolt without interrupting the sequence.
- Two stage tightening gives faster application of a Snug Torque & Angle Target
- 'Turn Angle' option can be used to check if bolts have already been
- tightened in an assembly process
- Allows tool integration into third party control systems
- Maximum Audit Mode target angle (720°)
- Available in single speed and auto 2 speed configurations
| Technical Specifications | |
|---|---|
| Model | EBT-72-1350 Auto 2 Speed |
| Drive size | 1'' square |
| Manufacturer | Norbar |
| Min Torque (Ft Lb) | 150 |
| Free Speed (RPM) | 32 |
| SKU | NOR180469 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 1000 |
| Min Torque (Nm) | 200 |
| Max Torque (Nm) | 1350 |
| Weight (lbs) | 13.0 |
| Series | EBT-72 |
| Voltage | 18V |
| Weight (kg) | 5.9 |
| MPN | EBT-72-1350 Auto 2 Speed |
| Features & Benefits | |
| Multiple units of measuremen: Nm, lbf ft and kgf m | |
| Torque, Torque & Angle and Torque Audit modes | |
| 3,000 reading memory, time and date stamped | |
| integrates into third party control systems | |
| Multiple units of measuremen: Nm | |
| lbf ft and kgf m | |
| Torque | |
| Torque & Angle and Torque Audit modes | |
| 3 | |
| 000 reading memory | |
| time and date stamped | |
