PLUTO Screwdriver Controller

Kolver EDU1AE/C/DT

Pluto Screwdriver Controller (Programmable Dual Torque Controller)

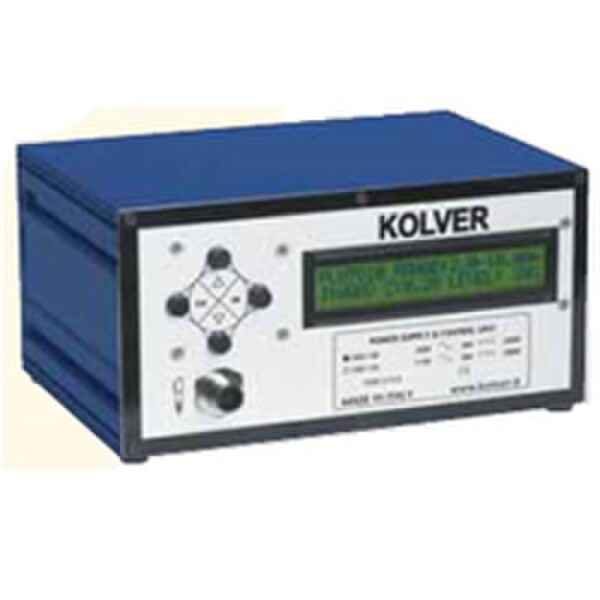

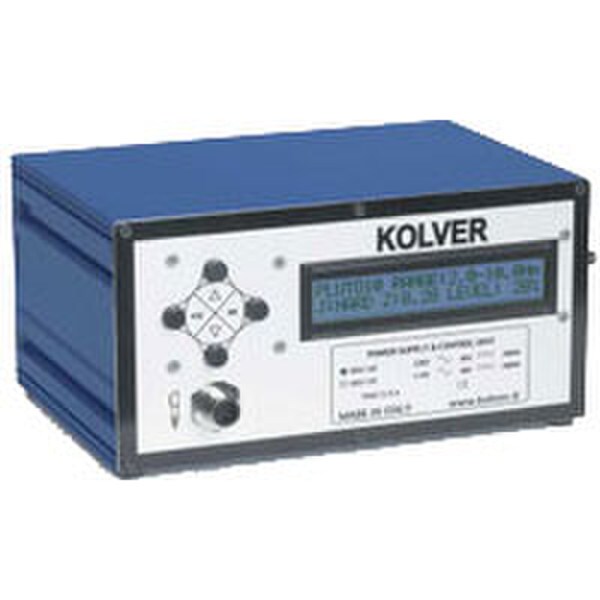

The EDU1AE/C/DT Dual-Torque Precision DC-Electric Torque Control Unit:

This system allows parameters to be set up to control the torque and RPM profile for one program. The system is set up through a LCD display on the front of the unit. Changes to the parameters are preformed by scrolling through the settings using four buttons.

The second torque setting is adjusted by a trim-pot on the back of the controller. The RPM profile is the same for both torque settings. The systems works well when used for two joints with similar stiffness characteristics. It is not recommended for dissimilar joints, i.e.: hard an soft.

The Torque Level is set as a percentage of the tools torque range. After you choose a torque level percentage the resulting torque must be validated back to an external transducer or torque tester. The stiffness of your joint will have an impact on the resulting torque. For this reason you must know how much rotation is in the tightening portion of your joint and the corresponding settings for Hard or Soft joint should be set accordingly. See our blog or call us for details.

Features:

• One controller only for a torque range from 2 to 15 Nm
• RPM control for slow start, run down speed and slow speed tightening
• Soft or hard joint parameter settings
• Automatic reverse at cycle end possible
• Autostop on elapsed time
• Driver on (trigger start) and off (torque reached) outputs
• Start and reverse inputs
• Low noise level, only 55 dBA, low weight, only 0.5 kg
