Datasensing95B080030

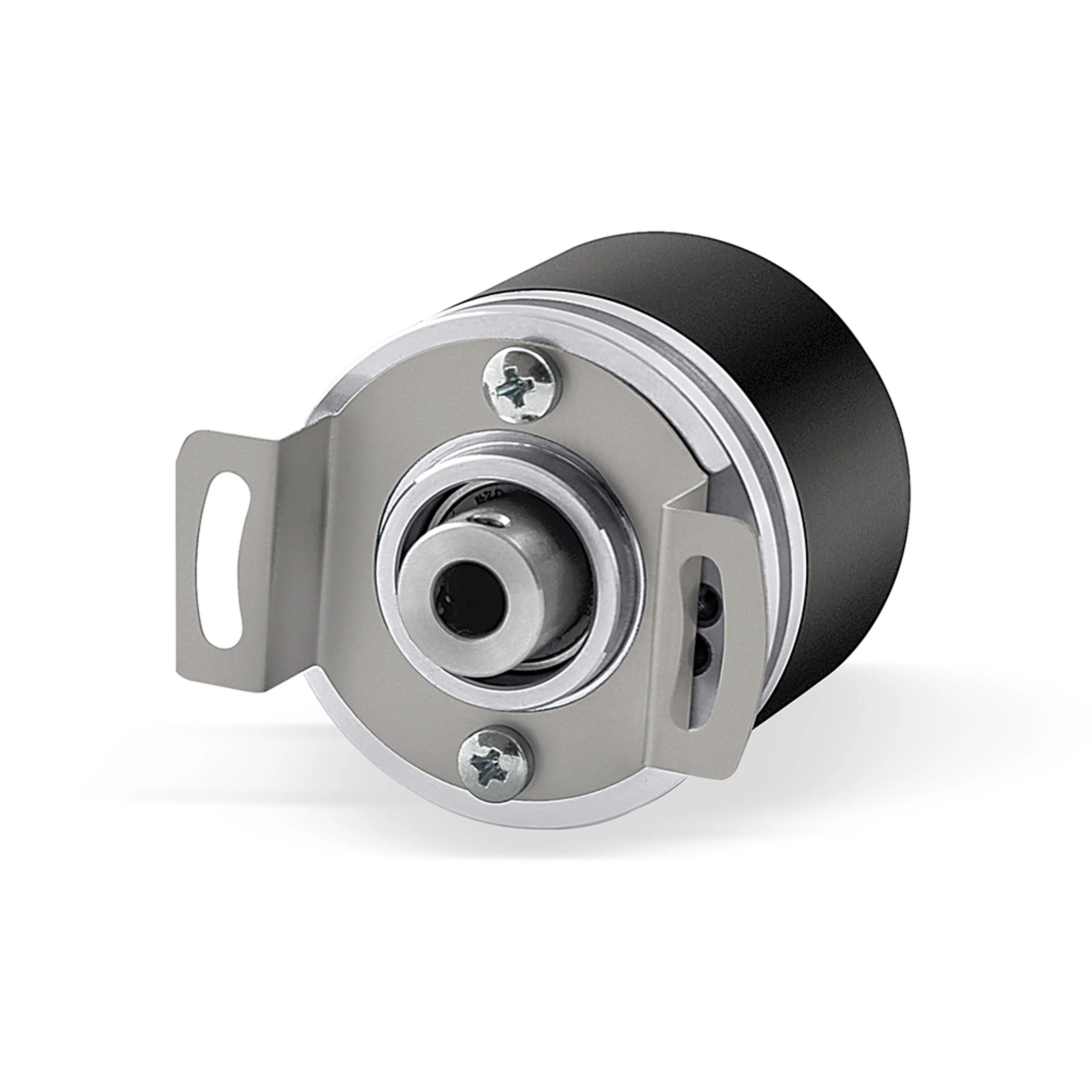

ENC41-S06-1000-C15 | Incremental 41mm - shaft 6mm -1000PPr - cable
ENC41 is the low-end, encoder basic line, which distinguish itself for cost and dimension reduction, without compromising robustness and overall performance. The typical applications for this encoder can be found in working and assembling lines, automated packaging machinery, light conveyors.
$113.25List $193.05
Save $79.80Total$113.25Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B080030 | ENC41-S06-1000-C15 | Incremental 41mm - shaft 6mm -1000PPr - cableENC41-S06-1000-C15
Total$113.25
1
Details
Product information
Overview
Datalogic ENC41-S06-1000-C15 / 95B080030
Incremental 41mm - shaft 6mm -1000PPr - cable
ENC41 is the low-end, encoder basic line, which distinguish itself for cost and dimension reduction, without compromising robustness and overall performance. The typical applications for this encoder can be found in working and assembling lines, automated packaging machinery, light conveyors.
Features:
- Compact dimension ø41
- Hollow or solid shaft
- Cost effective
- Light duty
Applications:
- Working and assembling lines
- Packaging machinery
- Light conveyors
| Technical Specifications | |
|---|---|
| Resolution | 1000 ppr |
| Sensitivity Adjustment | n/a |
| Application Description | Shaft Ø6mm |
| Encoder Type | Incremental |
| Output Type | Push-pull / Line driver |
| Response Time | n/a |
| Operating Voltage | 5-30 VDC |
| Dimensions | Ø41x38 mm |
| Connection | 1.5 m cable |
| Housing Material | Fibre glass / Aluminium |
| MPN | ENC41-S06-1000-C15 |
