Incremental 58mm - blind hollow 14mm -65536PPr Prog - M23

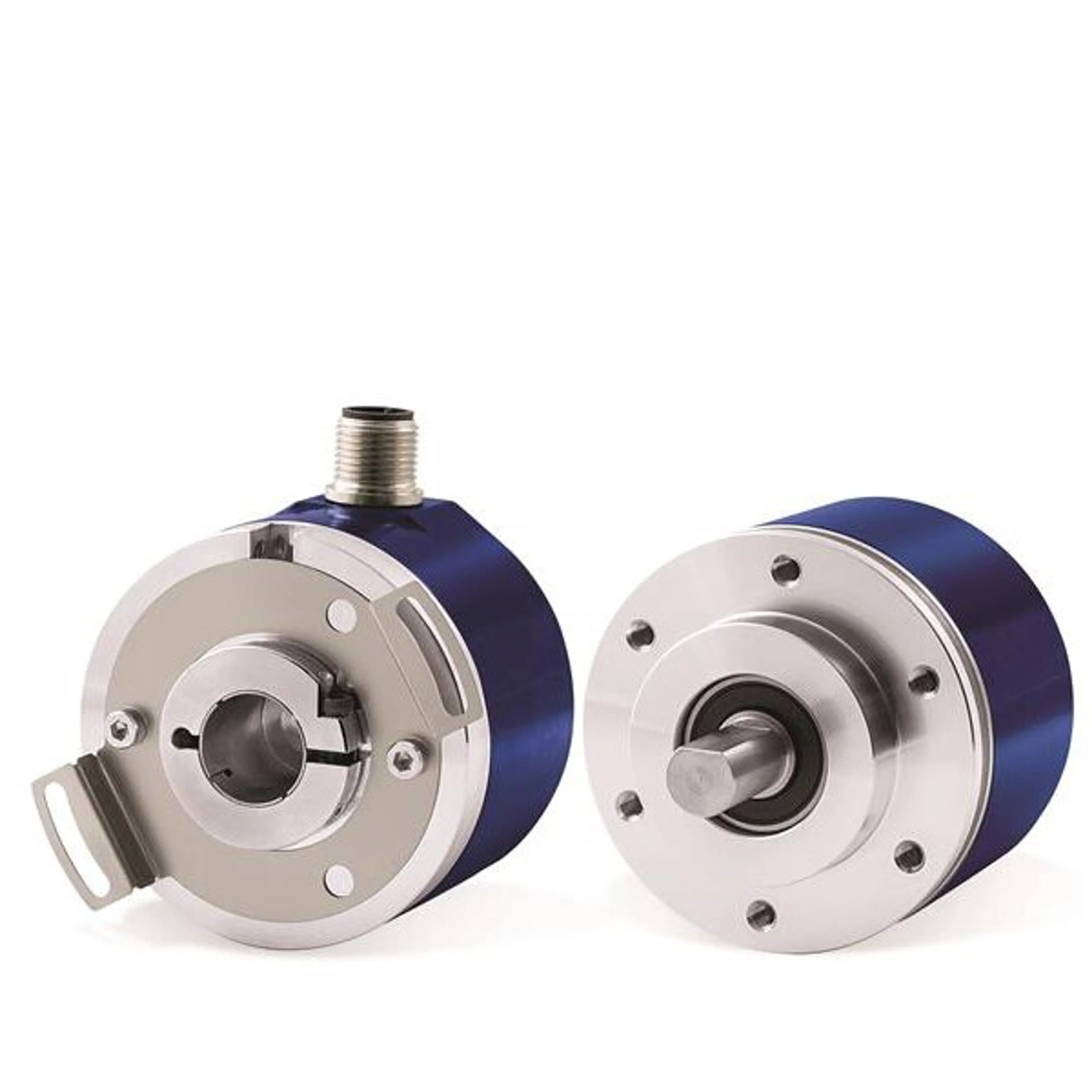

IEP58 programmable encoder line includes all mechanical coupling versions with Ø6, 8 or 10 mm solid shaft and Ø14 or 15 mm hollow shaft; whereas the electrical connection can be chosen amongst 1.5 m cable, M12 or M23 connector version.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic ENC58-H14-PROG-M23 / 95B080650
Incremental 58mm - blind hollow 14mm -65536PPr Prog - M23
IEP58 programmable encoder line includes all mechanical coupling versions with ?ÿ6, 8 or 10 mm solid shaft and ?ÿ14 or 15 mm hollow shaft; whereas the electrical connection can be chosen amongst 1.5 m cable, M12 or M23 connector version.
The encoder programmability is feasible via PC?Æs USB port, using a dedicated sw on-line and programming tool available as accessory, allowing to set the resolution from 1 to 16384 pulse per revolution, the zero index length at 90?? or 180??, and the counting direction CW or CCW.
The reduction of part numbers provided by the programmability, along with very affordable prices, make the IEP58 the ideal encoder line to stock for distributors, system integrators and machinery manufacturers.
Features:
- Standard dimension Ø58mm
- Hollow or solid shaft
- High resolution up to 16384 PPR
- Programmable via USB cable
Applications:
- Motion control
- Automated machinery
- Conveyor lines
| Technical Specifications | |
|---|---|
| Model | 95B080650 |
| Type | Incremental Solid Shaft Encoder |
| Manufacturer | Datalogic |
| SKU | 95B080650 |
| Diameter - mm | 58 |
| Communication | M23 Connector |
| Power supply | 5 - 30 VDC |
| Connection | M23 Connector |
| Series | AMT / AST / ENC |
| Housing | Aluminum |
| MPN | 95B080650 |
