Atlas Copco8436 6230 06

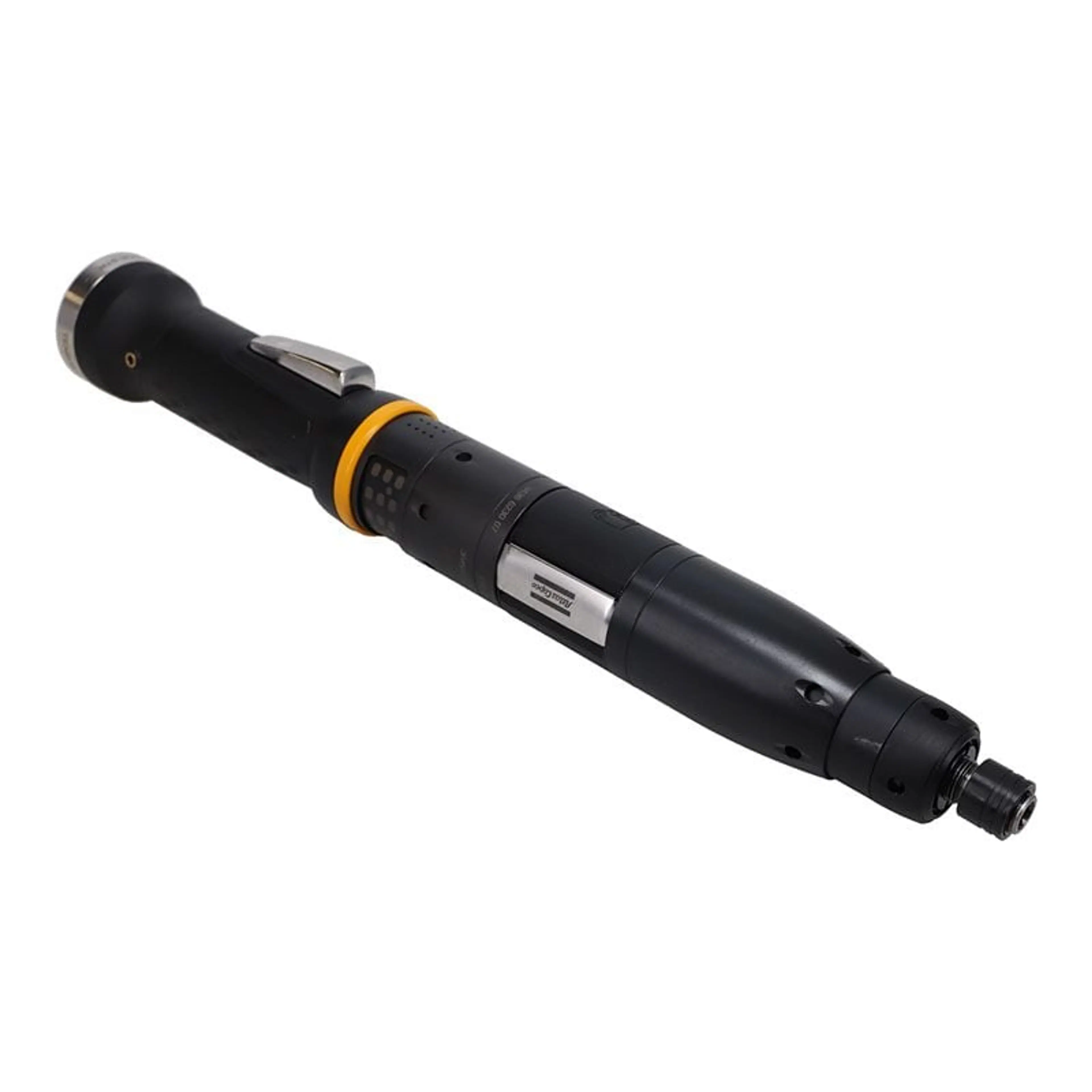

ETD STR31-05-10-T25 | Inline Electric Nutrunner, 3/8'' square, 5 Nm, telescopic
The latest generation of Tensor tools where ergonomics and productivity are taken to a new level
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8436 6230 06 | ETD STR31-05-10-T25 | Inline Electric Nutrunner, 3/8'' square, 5 Nm, telescopicETD STR31-05-10-T25
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| csdistance | 11 mm |
| height | 42 mm |
| length | 437 mm |
| outputsize | 3/8' |
| weight | 2.4 lb |
| modeltype | Angle |
| outputtype | Square, Male |
| shutoffsystem | Transducer |
| toolfamily | STR |
| torquerangemax | 5 Nm |
| torquerangemin | 1.5 Nm |
| torquescatter3s | ≤ 5 % |
| speedrangemax | 1310 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| cqccertified | No |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 61000-6-2:2019 |
| kccertified | No |
| kcid | na |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 62841-1:2015 + AC:2015 + A11:2022 |
| weee | 5 - Small equipment <50cm |
| motorpower | 1500 W |
| motorvoltagetype | 3 a.c. |
| motorvoltage | 200 V |
| MPN | ETD STR31-05-10-T25 |
| Features & Benefits | |
| Able withstand the toughest environments. IP CLASS 90 | |
| Built in gyroscope to detect operators influence on tightening | |
| High cycle rate capability due to improved heat dissipation. | |
| Modular design for parts commonality between models and sizes | |
| Able withstand the toughest environments. IP CLASS 90,Built in gyroscope to detect operators influence on tightening,High cycle rate capability due to improved heat dissipation. | |
