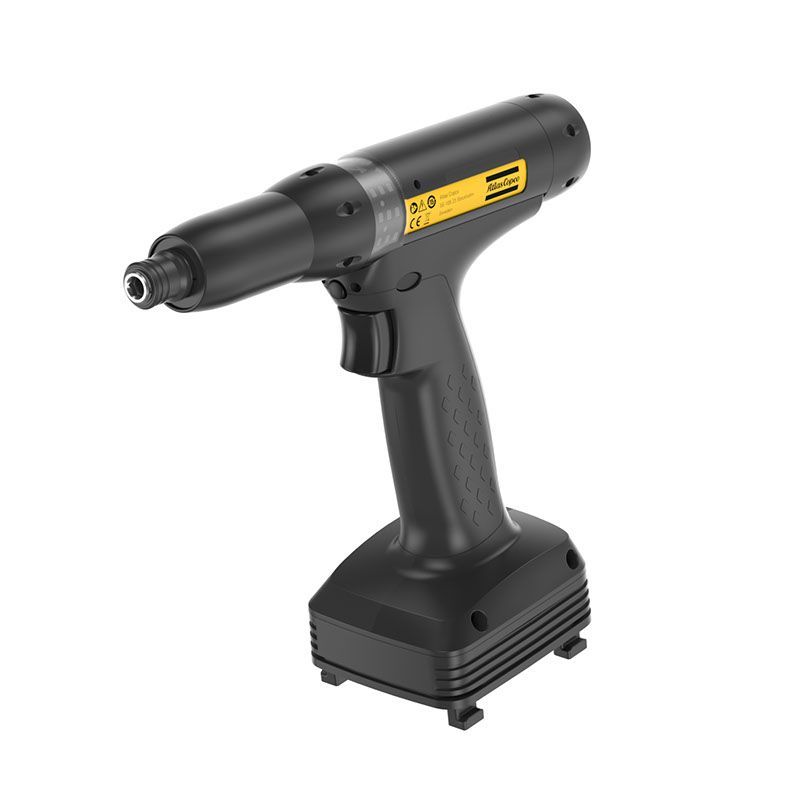

ETP SRB31-25-10 | 18/36V Transducerized Cordless Pulse Tool, 3/8'' square, 25 Nm
The SRB reports wirelessly to the Power Focus 6000 system and takes full advantage of Virtual Stations, able to perform low reaction strategies as TurboTight and Tensor Pulse, and traditional strategies as the two steps.
A specialist replies within one business day.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 3/8 Sq. In. 3.7 - 18.4 ft lb Pulse Tool, 1500 rpm
ETP SRB 31-25-10
The cordless Tensor SRB will change the way you plan your assembly stations. Experience low reaction, one-handed operations in an error-proof production.
FlexibleLow reaction and all strategies, from the standard 2 steps, quick step – to the more advance TurboTight and TensorPulse
ProductiveNew electronics and an improved motor, gives you the possibility to reach 1500 rpm boosting your productivity.
Perfect your strategiesTensor SRB offers the possibility to use both traditional strategies and the more advanced strategies such as TurboTight and TensorPulse.
Take care of OperatorsThe Tensor SRB has low weight and great balance – ergonomically designed to prevent operator fatigue. The new design also guarantees the correct temperature in contact with the operator.
Benefit from intelligent batteriesThe Tensor SRB is powered by our new generation of batteries and chargers. With a multi charger you have one charger for all batteries. Choose between 18v or 36v battery - without compromising the performance of speed or torque.
Note: 4211 6030 85 Power supply required to use the ETP SRB 31-25-10
| Technical Specifications | |
|---|---|
| height | 211 mm |
| length | 223 mm |
| outputsize | 3/8' |
| weight | 2.535 lb |
| width | 74 mm |
| modeltype | Pistol |
| outputtype | Square, Male |
| shutoffsystem | Transducer |
| toolfamily | SRB |
| torquerangemax | 25 Nm |
| torquerangemin | 6 Nm |
| torquescatter3s | ≤ 5 % |
| speedrangemax | 1500 r/min |
| soundpowerpulse | 0 dB(A) |
| soundpressure | <70 dB(A) |
| soundpressurepulse | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertaintypulse | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertaintypulse | 1,5 m/s² |
| vibrationvalue | <2,5 m/s² |
| vibrationvaluepulse | 12 m/s² |
| ccccertified | No |
| cmiitid | 2018AJ0238 |
| eaccertified | Yes |
| eulegislation | (EU) 2022/30 |
| eustandard | EN 18031-1:2024 |
| etlcontrolnumber | 3008099 |
| etllisted | Yes |
| etltext | 6 - 62841-2-2 |
| eusarvalue | 0.49 W/kg |
| fccid | PVH 0965 |
| icid | 5325A-0965 |
| kccertified | Yes |
| kcid | R-R-50A-SRB |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 18031-1:2024 |
| weee | 5 - Small equipment <50cm |
| motorpower | 500 W |
| motorvoltagetype | d.c. |
| motorvoltage | 38.1 V |
| battery | Li-Io 18/36 V |
| typeofbattery | 1 Li-ion |
| weightinclbattery | 3.638 lb |
| MPN | ETP SRB31-25-10 |
| Features & Benefits | |
| Operator feedback and battery status via LED indicator | |
| Dual antenna | |
| Rapid Backup Unit (RBU) functionality | |
