Atlas Copco8433 3270 31

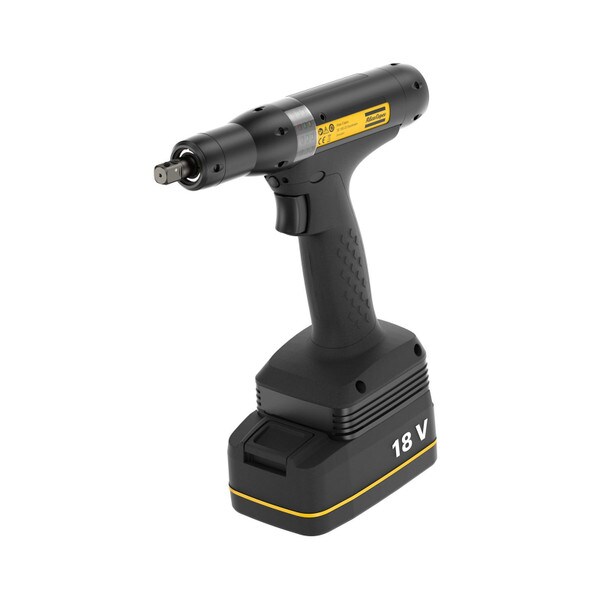

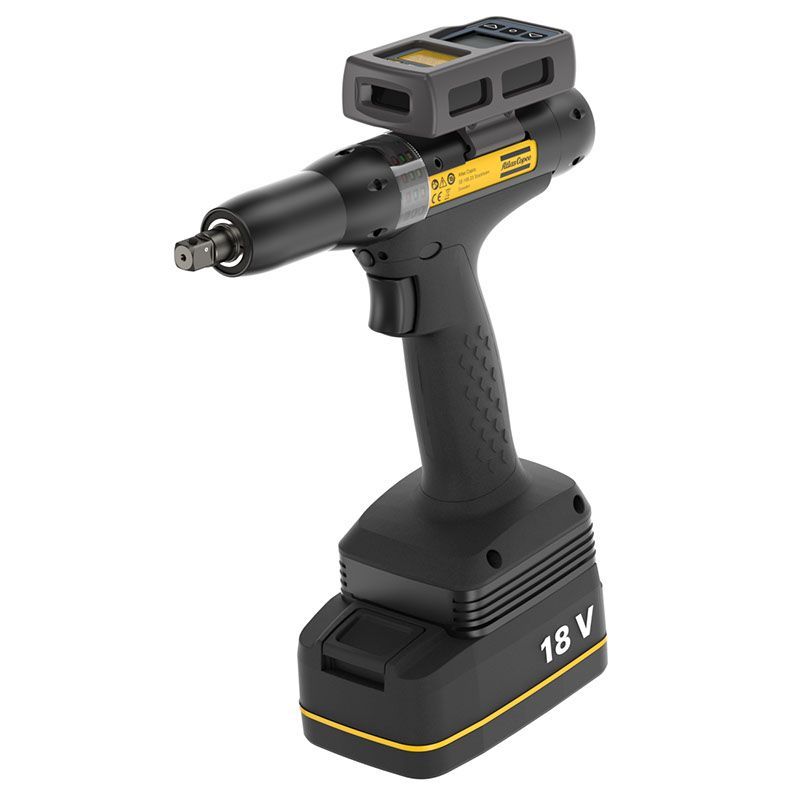

ETP SRB31-20-I06 | 18/36V Transducerized Cordless Pulse Tool, 3/8'' square, 20 Nm
The SRB reports wirelessly to the Power Focus 6000 system and takes full advantage of Virtual Stations, able to perform low reaction strategies as TurboTight and Tensor Pulse, and traditional strategies as the two steps.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8433 3270 31 | ETP SRB31-20-I06 | 18/36V Transducerized Cordless Pulse Tool, 3/8'' square, 20 NmETP SRB31-20-I06
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| height | 211 mm |
| length | 212 mm |
| outputsize | 1/4' |
| weight | 2.535 lb |
| width | 74 mm |
| modeltype | Pistol |
| outputfeature | Bit holder |
| outputtype | Hexagon, Female |
| shutoffsystem | Transducer |
| toolfamily | SRB |
| torquerangemax | 20 Nm |
| torquerangemin | 5 Nm |
| torquescatter3s | ≤ 5 % |
| speedrangemax | 1500 r/min |
| soundpressure | <70 dB(A) |
| soundpressurepulse | 75 dB(A) |
| soundstandard | ISO15744 |
| sounduncertaintypulse | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertaintypulse | 1,3 m/s² |
| vibrationvalue | <2,5 m/s² |
| vibrationvaluepulse | 9,5 m/s² |
| ccccertified | No |
| cmiitid | 2018AJ0238 |
| eaccertified | Yes |
| eulegislation | (EU) 2022/30 |
| eustandard | EN 18031-1:2024 |
| etlcontrolnumber | 3008099 |
| etllisted | Yes |
| etltext | 6 - 62841-2-2 |
| eusarvalue | 0.49 W/kg |
| fccid | PVH 0965 |
| icid | 5325A-0965 |
| kccertified | No |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 18031-1:2024 |
| weee | 5 - Small equipment <50cm |
| motorpower | 500 W |
| motorvoltagetype | d.c. |
| motorvoltage | 38.1 V |
| battery | Li-Io 18/36 V |
| typeofbattery | 1 Li-ion |
| weightinclbattery | 3.638 lb |
| MPN | ETP SRB31-20-I06 |
| Features & Benefits | |
| Operator feedback and battery status via LED indicator | |
| Dual antenna | |
| Rapid Backup Unit (RBU) functionality | |
