Atlas Copco8433 3230 22

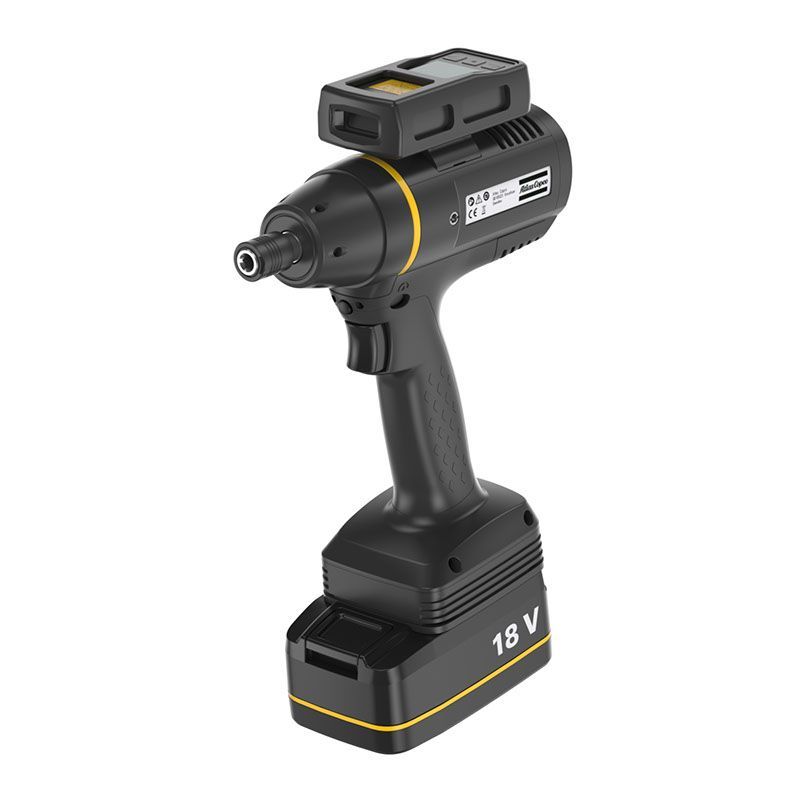

ETP TBP61-32-42 | 18V Transducerized Cordless Pulse Tool, 1/4'' square, 35 Nm
TBP is a low reaction tool with maximum lexibility and high torque. Thanks to the DuraPulse technology the tool uptime is increased and keeps it on the line instead of the tool crib.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8433 3230 22 | ETP TBP61-32-42 | 18V Transducerized Cordless Pulse Tool, 1/4'' square, 35 NmETP TBP61-32-42
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| csdistance | 29 mm |
| height | 231 mm |
| length | 195 mm |
| outputsize | 1/4' |
| weight | 2.93 lb |
| communicationtype | Bluetooth/W-LAN |
| light | Yes |
| modeltype | Pistol |
| outputtype | Hexagon, Female |
| shutoffsystem | Transducer |
| toolfamily | TBP |
| torquerangemax | 35 Nm |
| torquerangemin | 12 Nm |
| torquescatter3s | ≤ 7.5 % |
| speedrangemax | 6000 r/min |
| speedrangemin | 1000 r/min |
| soundpressure | 78 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| cmiitid | 2018AJ0237 |
| eaccertified | Yes |
| eulegislation | (EU) 2022/30 |
| eustandard | EN 18031-1:2024 |
| etlcontrolnumber | 3008099 |
| etllisted | Yes |
| etltext | 6 - 62841-2-2 |
| eusarvalue | 0.26 W/kg |
| fccid | PVH0965 |
| icid | 5325A-0965 |
| kccertified | Yes |
| kcid | R-R-50A-TBP |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN 300 328 V2.2.2 |
| weee | 5 - Small equipment <50cm |
| oilvolumeinfullpulseunit | 6.5 ml |
| motorpower | 350 W |
| motorvoltagetype | d.c. |
| motorvoltage | 18 V |
| battery | Li-Io 18/36 V |
| typeofbattery | 1 Li-ion |
| weightinclbattery | 4.05 lb |
| MPN | ETP TBP61-32-42 |
| Features & Benefits | |
| High Torque | |
| DuraPulse technology with new sealing and air separator | |
| Excellent ergonomics | |
| Rapid Backup Unit (RBU) functionality. | |
| High Torque,DuraPulse technology with new sealing and air separator,Excellent ergonomics,Rapid Backup Unit (RBU) functionality. | |
