M-900iA Series Robots
The FANUC M-900iA series robot is engineered for precise, very high payload/high speed operations, user friendly setup and maximum reliabilit
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
5 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Manufacturer | Model | Reach | Price | Qty | |
|---|---|---|---|---|---|---|
 M-900iA/150PM-900iA/150P | 6 Axis, 150 kg Heavy Payload Robot, 3507 mm reach | FANUC | M-900iA/150P | 3507 mm | 1 | View details | |

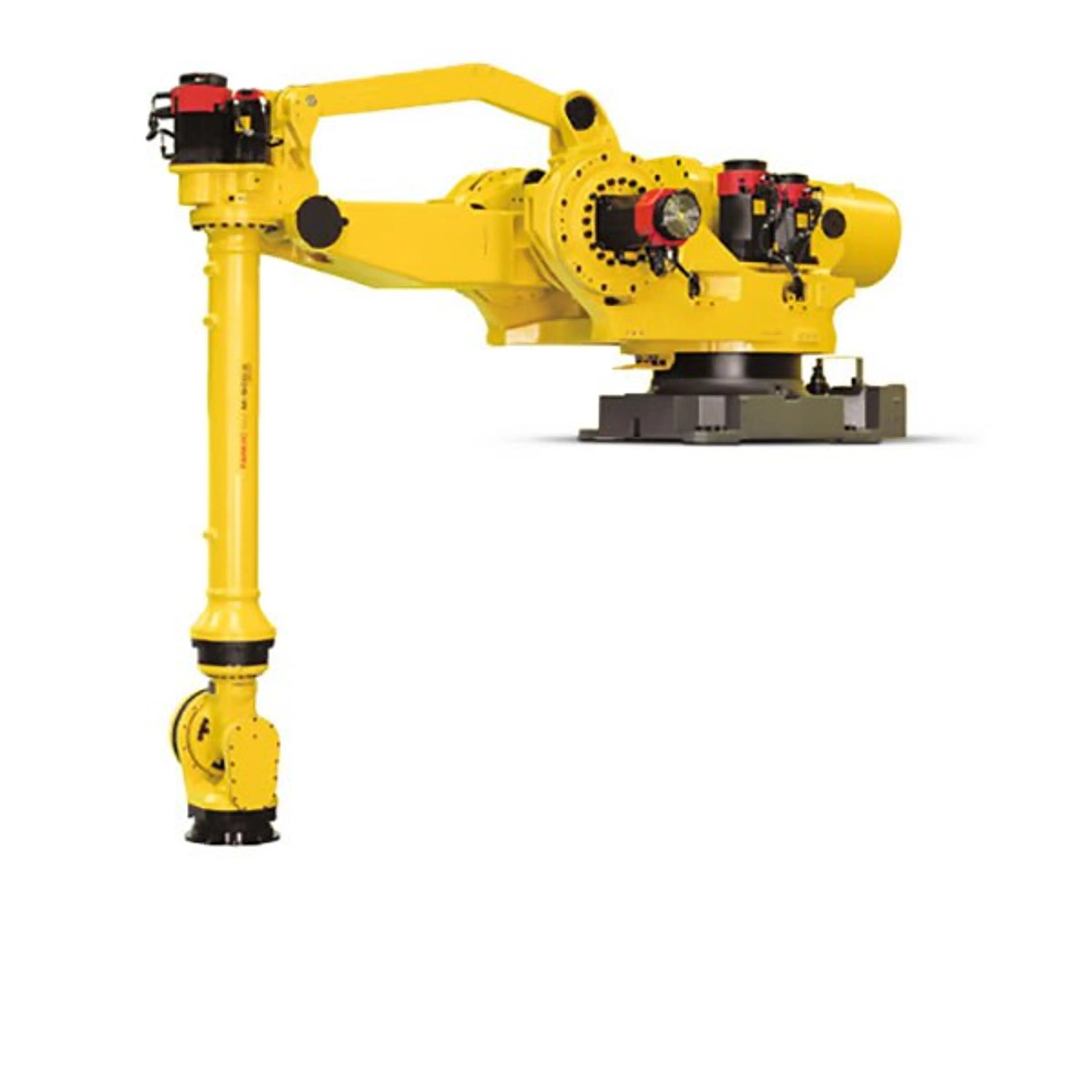

 M-900iA/200PM-900iA/200P | 6 Axis, 200 kg Heavy Payload Robot, 3507 mm reach | FANUC | M-900iA/200P | 3507 mm | 1 | View details | |

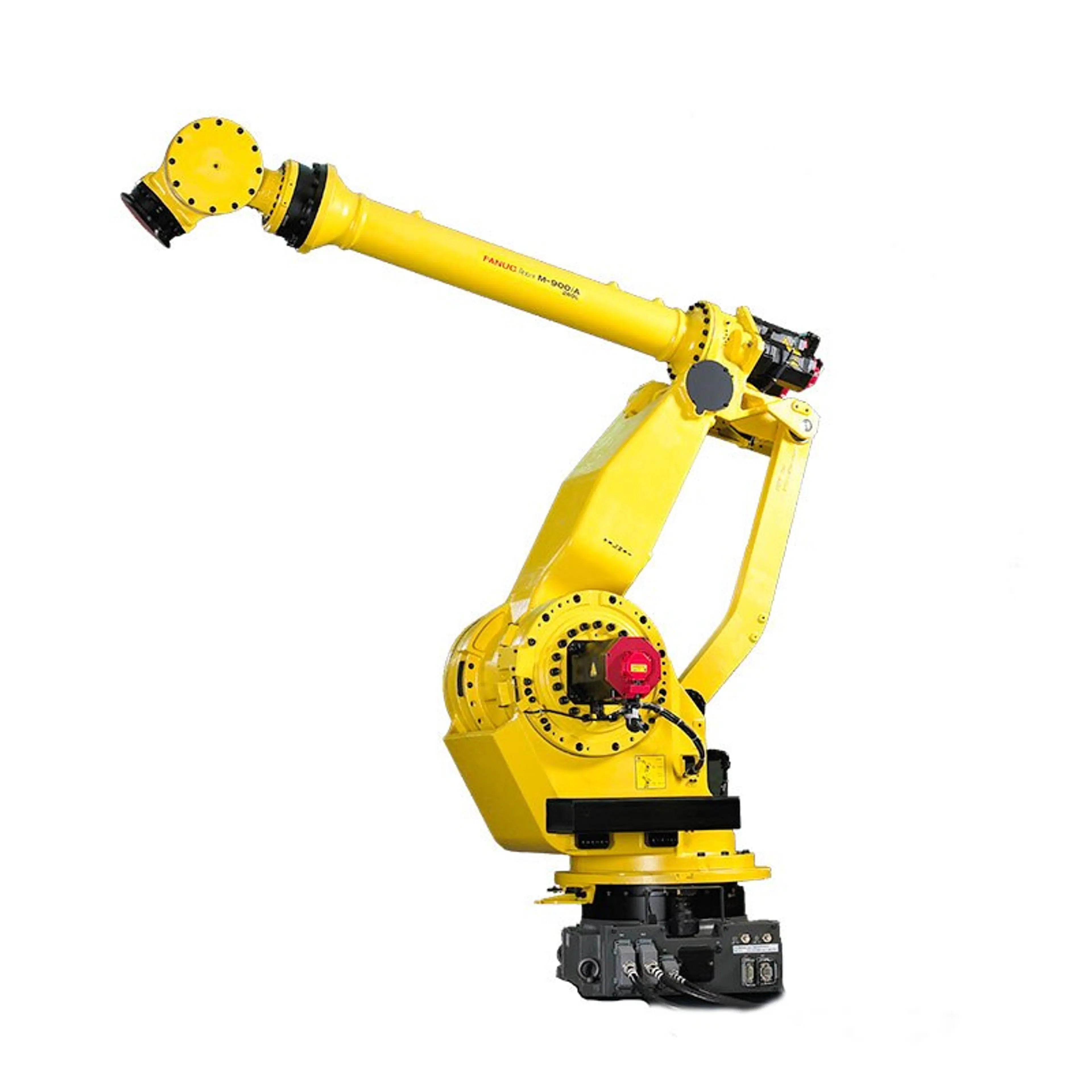

 M-900iA/260LM-900iA/260L | 6 Axis, 260 kg Heavy Payload Robot, 3100 mm reach | FANUC | M-900iA/260L | 3100 mm | 1 | View details | |

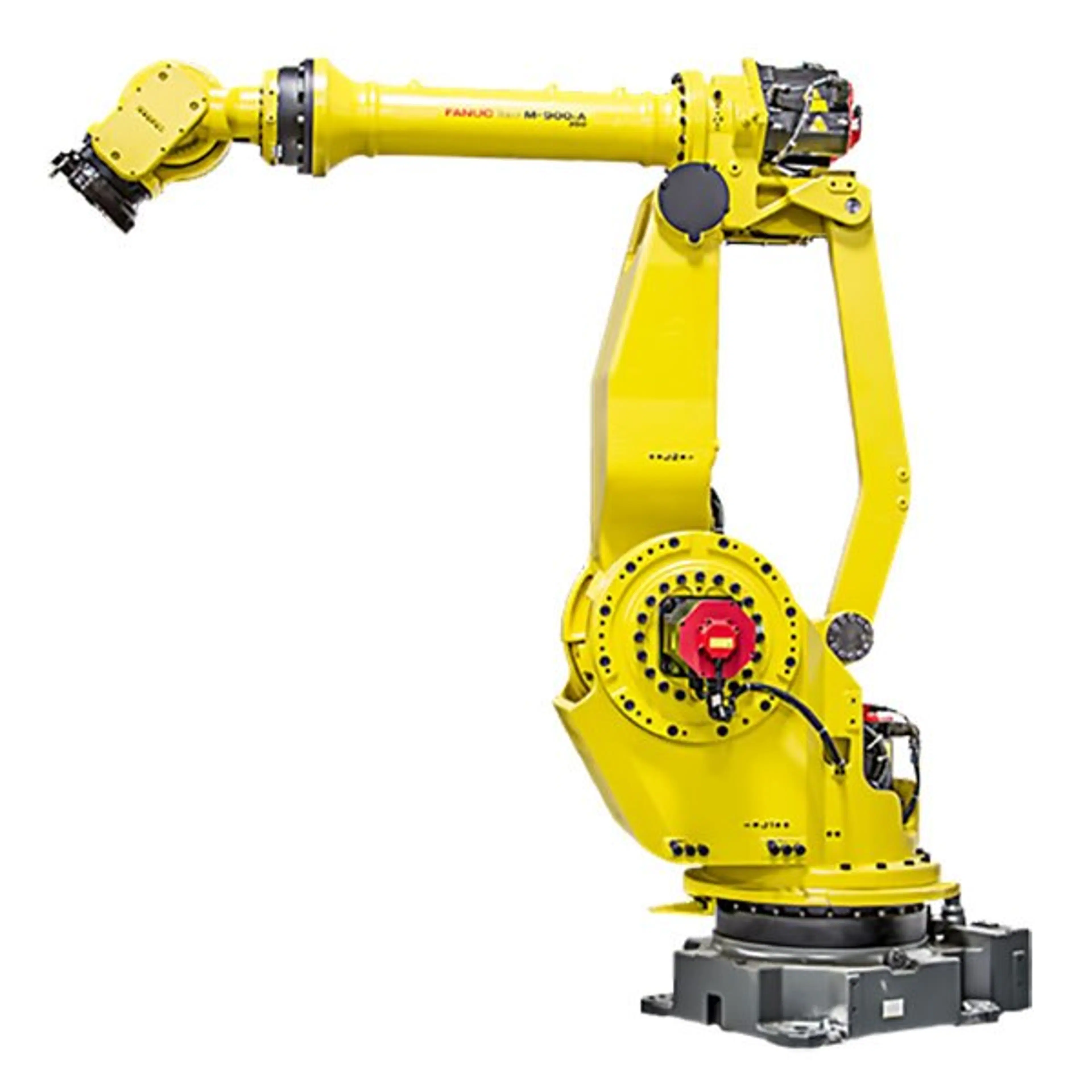

 M-900iA/350M-900iA/350 | 6 Axis, 350 kg Heavy Payload Robot, 2650 mm reach | FANUC Robotics | — | — | 1 | View details | |

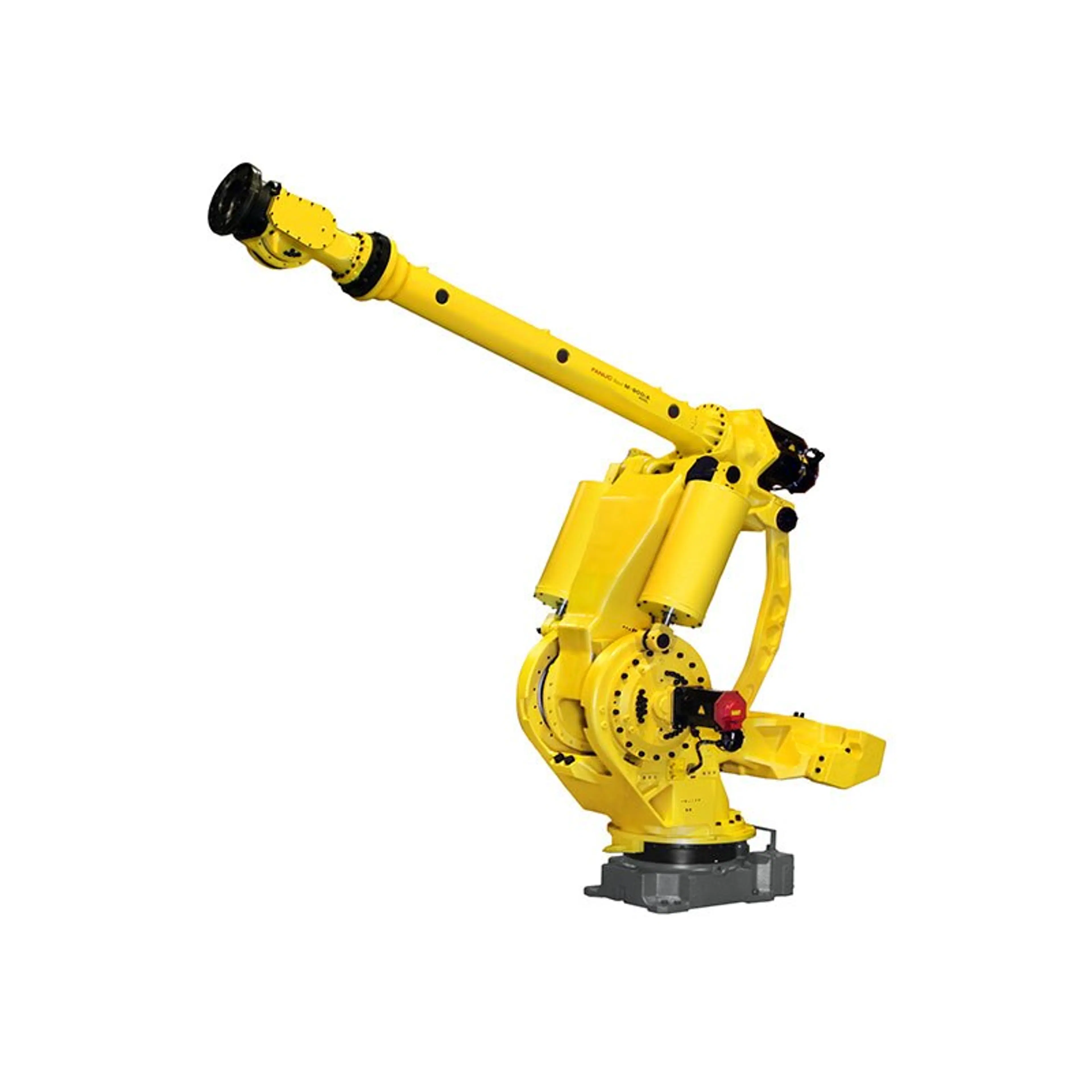

 M-900iA/400LM-900iA/400L | 6 Axis, 400 kg Heavy Payload Robot, 3625 mm reach | FANUC | M-900iA/400L | 3625 mm | 1 | View details |
Details
Product information
Overview
The FANUC M-900iA series robot is engineered for precise, very high payload/high speed operations, user friendly setup and maximum reliabilit. The M-900iA series is a six axis, electric servo-driven family of robots designed for a variety of manufacturing and systems processes.
Features:
- "Best in class" wrist moments and intertia meet a variety of heavy handling challenges
- proven, reliable FANUC servo drives provide highest uptime and productivity
- Stationary outer arm simplifies hose and cable dressout and prolongs service life
- Slim arm and wrist assemblies minimize interferance with system peripherals and allow operation in confined spaces
- Rugged, IP67 rated wrist design performs reliability even in the harshest manufacturing environments
- A camera for iRVision (Integrated Vision, built-in) can be integrated into the robot for vision guidance and error-proofing applications.
- Ceiling mount installation is possible on the M-900iA/350 and M-900iA/260L where space is a concern
- Robust mechanical designreduces down time, increases mean time between failture (MTBF) and minimizes spare part requirements
- Optional enhanced severe dust and liquid protection package with two-part epoxy paint for harsh environments
- High inertia mode software allows handling of very large parts with minimal cycletime penalty.
| Features & Benefits | |
|---|---|
| Up to 400 kg payload capacity | |
| 6 Axis Design | |
| Up to 3625 mm reach |
