6 Axis, Parallel Link Robot, 100 kg payload capacity

FANUC F-200iB

6 Axis, Parallel Link Robot, 100 kg payload capacity

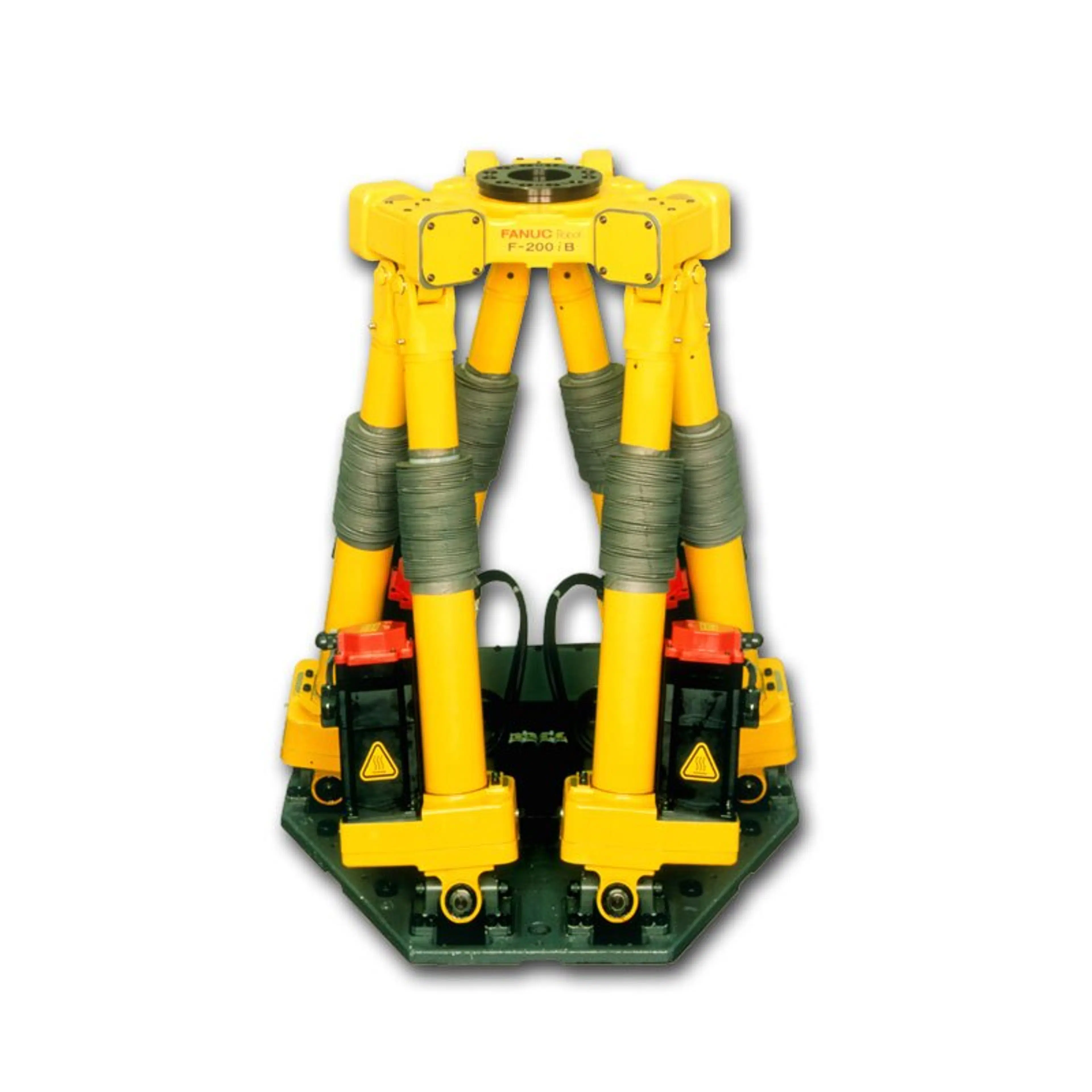

The F-200iB is a six degrees of freedom servo-driven parallel link robot designed for use in a variety of manufacturing and automotive assembly processes. The F-200iB is engineered for applications requiring extreme rigidity and exceptional repeatability in a compact, powerful package.

Applications:

• Sub-compact robot welding
• Pedestal welding
• Part loading/positioning
• Nut running
• Vehicle lift and locate
• Flexible/convertible fixturing
• Material Removal
• Dispense

Features:

• Six degrees of freedom
• Simple, robust, lowmaintenance design
• Electric AC servo motors
• Precision gear drives
• Fail-safe brake on each leg
• Components protected from weld flash, grease, chemicals and water

Provides flexibility and convertability – the ability to reprogram the F-200iB facilitates rapid and costeffective model changeovers.

Reduces capital expense – F-200iB process solutions take less time and money to process and design. They also reduce tooling and build costs

Lowers operating expense – using the F-200iB reduces tooling complexity, resulting in less maintenance and down time.

Optimizes use of floorspace – the sub-compact F-200iB can fit in spaces too cramped for serial link robots.

Makes it feasible to perform more welds per station, thus reducing the number of stations per system

New process possibilities – the F-200iB opens the door to new process solutions not available with current tools.
