Flexarm5201013
BA10 G | Articulated Air Balanced Pantograph, 10 Nm, 470 mm radius, 1 kg max load
Provides even more flexibility and comfort thanks to the air balanced design.
$1,326.60
Total$1,326.60Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
5201013 | BA10 G | Articulated Air Balanced Pantograph, 10 Nm, 470 mm radius, 1 kg max loadBA10 G
Total$1,326.60
1
Details
Product information
Overview

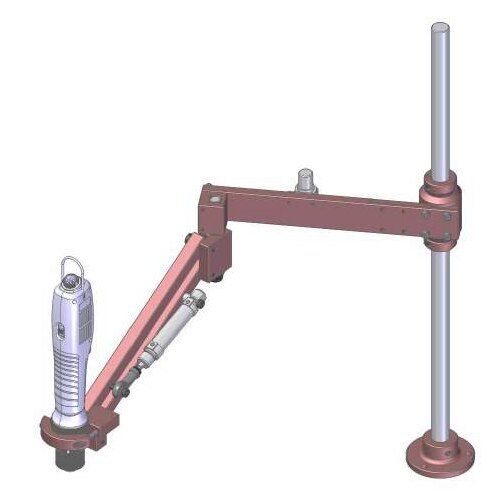

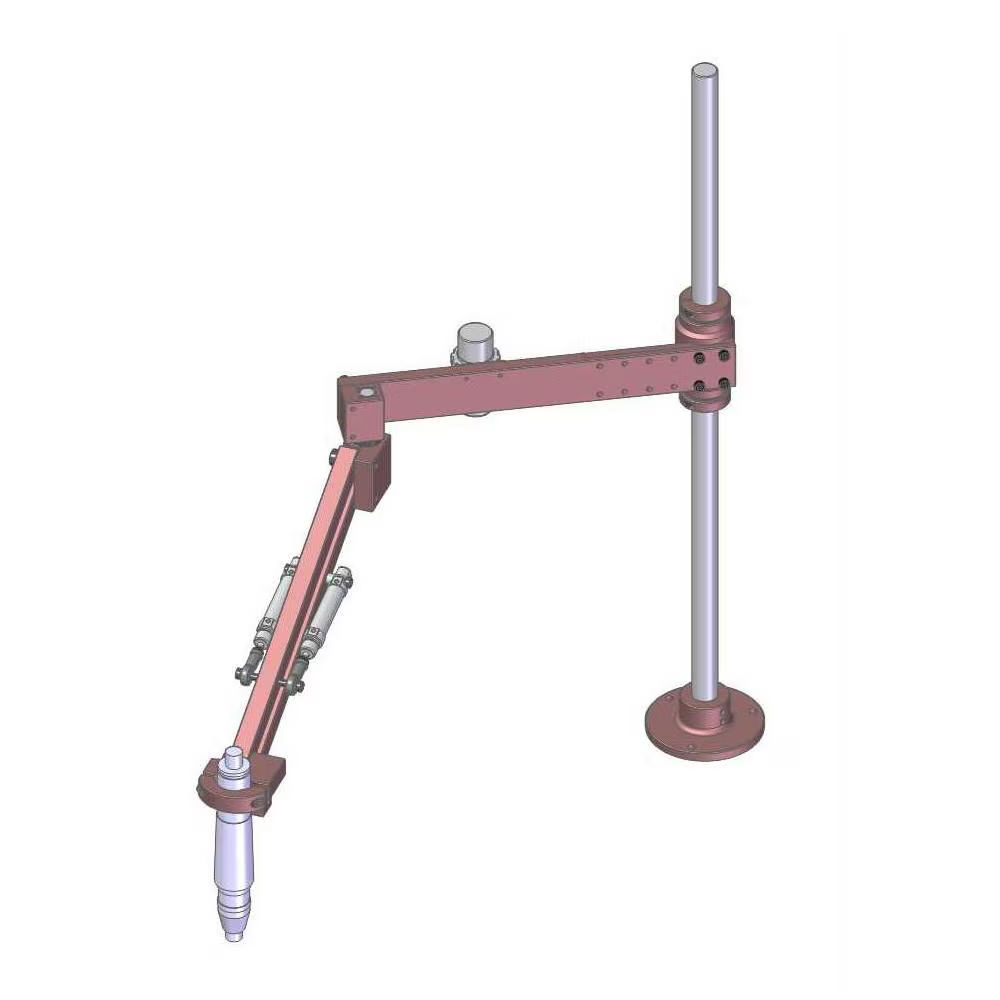

Flexarm Articulated Air Balanced Pantograph, 10 Nm, 470 mm radius, 1 kg max load
Articulated Air Balanced Pantograph, 10 Nm, 470 mm radius, 1 kg max load, model BA10 G, available to order online from Flexible Assembly Systems. Do you see this Articulated Air Balanced Pantograph for sale elsewhere at a lower price? Contact Customer Service about price matching!
BA10 G by Flexarm
Inspired from the BA R Series, the BA G Series provides you even more flexibility and confort thanks to the air balanced design.
| Technical Specifications | |
|---|---|
| Model | BA10 G |
| Maximum Tool Weight (lbs) | 2.2 |
| Type | Articulated Air Pantograph |
| Manufacturer | Flexarm |
| Load, max (kg / lbs) | 1 |
| SKU | 5201013 |
| Diameter - mm | 1.1 - 2 in |
| Max Torque (Ft Lb) | 2.4 |
| Max Torque (Nm) | 10 |
| Stroke Length (in) | 6.7 |
| Series | BA-G |
| Capacity (lbs) | 2.2 |
| Diameter - in | 1.1 - 2 in |
| MPN | BA10 G |
| Features & Benefits | |
| Softly air balanced | |
| Quick and quiet | |
