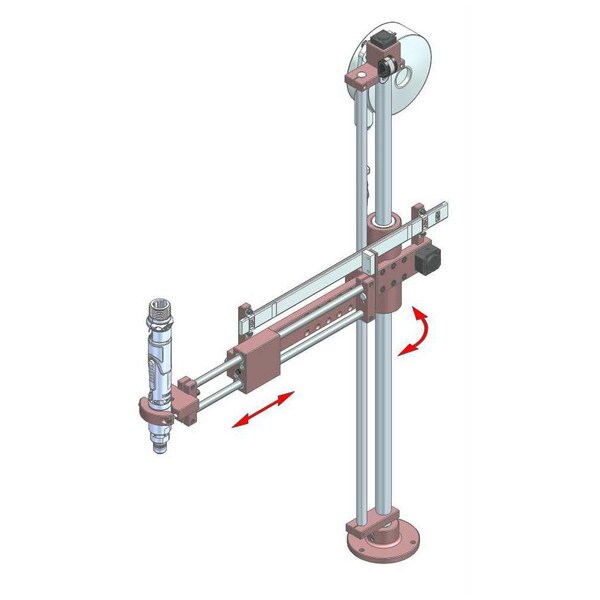

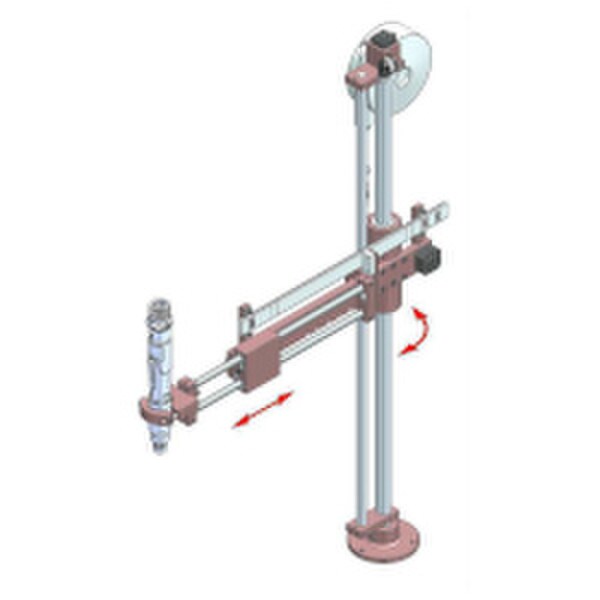

BA PC Series Linear Tool Arms
Get up to 4 kg on max load and 100 Nm of torque wth BA PC series Tool Arms.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
6 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Maximum Tool Weight (lbs) | Load, max (kg / lbs) | Price | Qty | |
|---|---|---|---|---|---|---|
 BA 12 PC5201009 | BA 12 PC | Linear Tool Arm, 12 Nm, 1.2 kg max load, 195 mm stroke$4,078.80 | BA 12 PC | 2.6 | 1.2 | $4,078.80 | 1 | View details |
| BA 25 PC5201086 | BA 25 PC | Linear Tool Arm, 25 Nm, 2.2 kg max load, 195 mm stroke$4,310.46 | BA 25 PC | 4.9 | 2.2 | $4,310.46 | 1 | View details |
| BA 40 PC5201087 | BA 40 PC | Linear Tool Arm, 40 Nm, 3 kg max load, 295 mm stroke$4,708.44 | BA 40 PC | 6.6 | 3 | $4,708.44 | 1 | View details |
| BA 40 PC/4005201088 | BA 40 PC/400 | Linear Tool Arm, 40 Nm, 3 kg max load, 395 mm stroke$5,506.38 | BA 40 PC/400 | 6.6 | 3 | $5,506.38 | 1 | View details |
| BA 100 PC5201089 | BA 100 PC | Linear Tool Arm, 100 Nm, 4 kg max load, 295 mm stroke$5,842.98 | BA 100 PC | 8.8 | 4 | $5,842.98 | 1 | View details |
| BA 100 PC/4005201091 | BA 100 PC/400 | Linear Tool Arm, 100 Nm, 4 kg max load, 395 mm stroke$6,712.20 | BA 100 PC/400 | 8.8 | 4 | $6,712.20 | 1 | View details |
Details
Product information
Overview
Get up to 4 kg on max load and 100 Nm of torque wth BA PC series Tool Arms.
| Features & Benefits | |
|---|---|
| Torque up to 100 Nm | |
| Equipped with absolute angle encoders | |
| Higher torque is available on request | |
| From $3399 |
