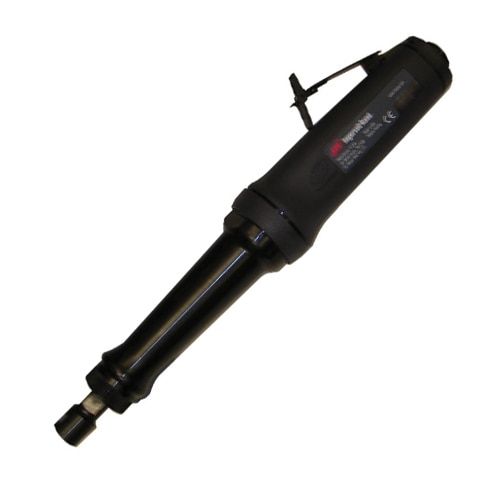

G3-Series Extended Straight Grinder

Ingersoll Rand G3X150RG4

G3-Series Extended Straight Grinder

When the biggest job demands the most power use the G3-Series performing at an impressive 1.35 hp (1.0 kW). The G3-Series features an internal contamination-free air controller to maintain tool speed and maximize material removal rates. Ideal for industrial-duty material removal, an ergonomic D-shaped handle fits better in your hand with low noise and vibration.

• Internal contamination-free air controller helps maintain tool speed to maximize material removal rate
• Ideal for industrial-duty material removal with burrs, grinding wheels and coated abrasives
• One-nut access for all motor servicing
• Ergonomic D-Shaped handle fits better in the operator's hand
• G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
• A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )
• 120 = Free Speed (12,000 rpm)
• R = Exhaust Direction (R - rear, F - front, P - piped away)
• P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
• 10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
• 45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard)
