Gesipa1458022
11240 lbf Hydro-Pneumatic Riveting Tool with pressure trigger, 50000 N traction
Hydro-pneumatic riveting tool with pressure trigger.
$5,076.93
Total$5,076.93Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
1458022 | 11240 lbf Hydro-Pneumatic Riveting Tool with pressure trigger, 50000 N traction1458022
Total$5,076.93
1
Details
Product information
Overview

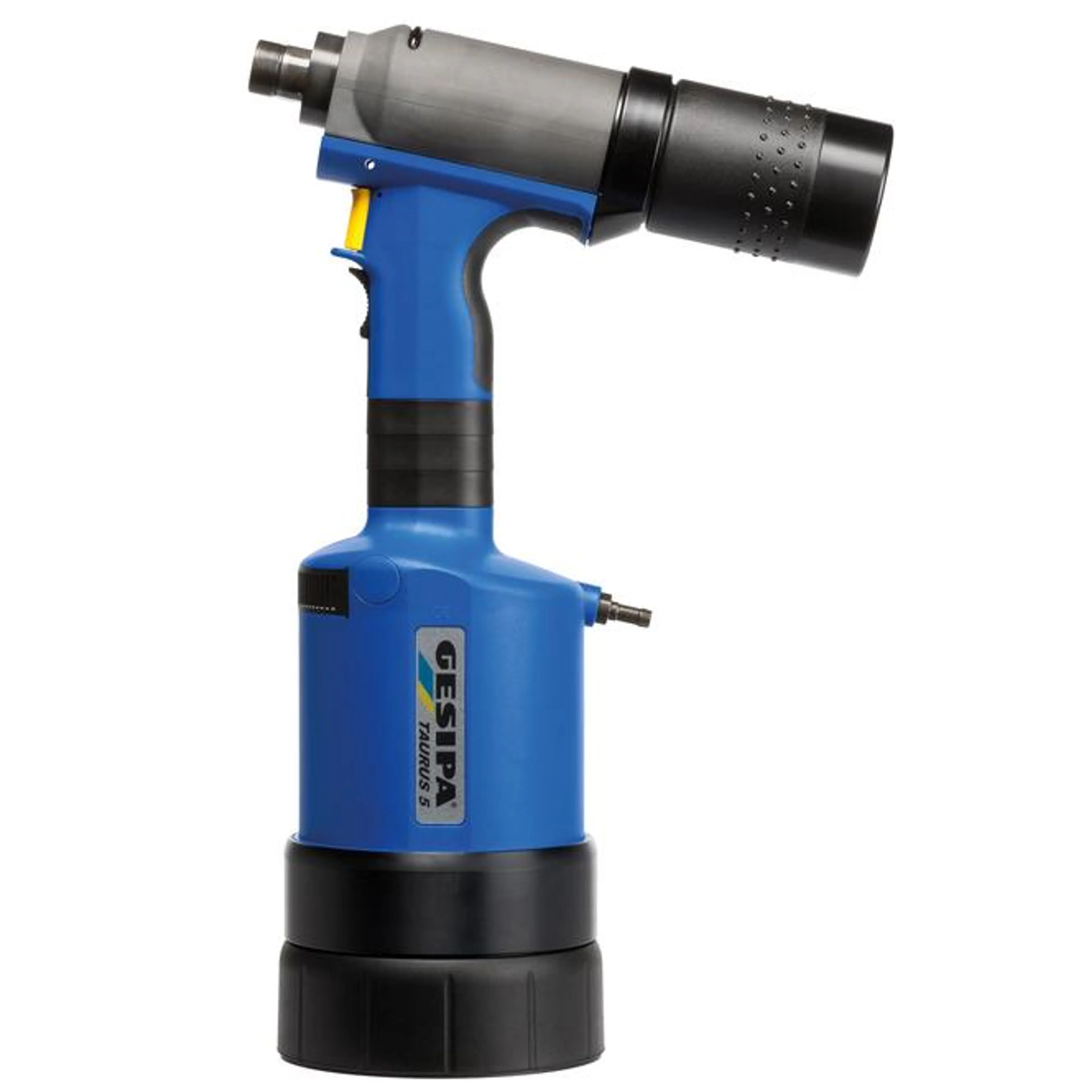

Gesipa 11240 lbf Hydro-Pneumatic Riveting Tool with pressure trigger, 50000 N traction
1458022
11240 lbf Hydro-Pneumatic Riveting Tool with pressure trigger, 50000 N traction, 1458022 by Gesipa, available on Flexible Assembly Systems. Do you see this Hydro-Pneumatic Riveting Tool for a much lower rate? Contact Customer Service for price matching!
Working RangeBlind rivets above 6.4 mm Ø all materials and lockbolts up to10 mm Ø with corresponding pulling heads
Equipment1 hydraulic oil bottle 100 ml, 1 oil refill can
Rivets: All up to 1/4", Lockbolt up to 3/8"
| Technical Specifications | |
|---|---|
| Manufacturer | Gesipa |
| SKU | 1458022 |
| Model | Taurus 6 |
| Series | Taurus |
| Traction Power | 50,000 N at 6 bar |
| Weight (kg) | 3.4 |
| Operating Air Pressure | 5-7 bar |
| Air Hose Connection | 6mm (1/4'') |
| Air Consumption | 6.9 ltr per rivet |
| Stroke (mm) | 15 |
| MPN | 1458022 |
| Features & Benefits | |
| 50000 N traction | |
