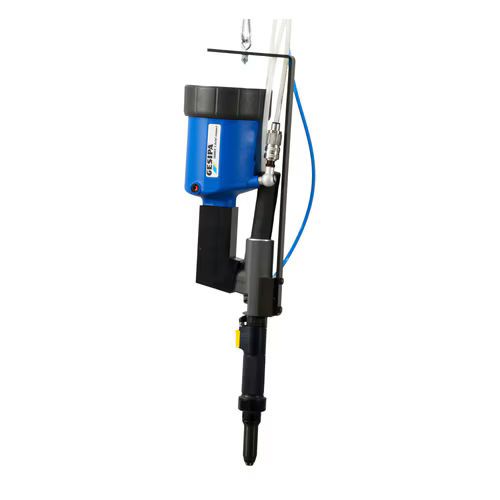

15 mm Hydro-Pneumatic Riveting Tool with pressure trigger, Axial Compact, 5500 N traction

Gesipa 15 mm Hydro-Pneumatic Riveting Tool with pressure trigger, Axial Compact, 5500 N traction

1458027

15 mm Hydro-Pneumatic Riveting Tool with pressure trigger, Axial Compact, 5500 N traction, 1458027 by Gesipa, available on Flexible Assembly Systems. Do you see this Hydro-Pneumatic Riveting Tool for a much lower rate? Contact Customer Service for price matching!

Thanks to its separate pressure booster unit, the TAUREX 1 Axial compact is particularly useful in areas where space is at a premium. The special gun of the TAUREX 1 Axial compact can be integrated in production systems and facilitates flexible and ergonomically efficient manual working procedures in applications with restricted access that require riveting from above. In order to make sure that the parts to be riveted make contact without any gaps and that the setting head is in contact with the material, the TAUREX 1 Axial compact can also be supplied with a spring-loaded trigger system. Depending on the application in question, an additional external suction unit may become necessary. A compressed air supply is additionally required for reliable mandrel evacuation. Depending on the application, this is preferably achieved via the balancer with valve or the time delay valve.

Rivets: Blind rivets from 2.4 up to 3.2 mm Ø all materials and up to 4 mm Ø alu/steel (max. mandrel dia. 2.5 mm)
