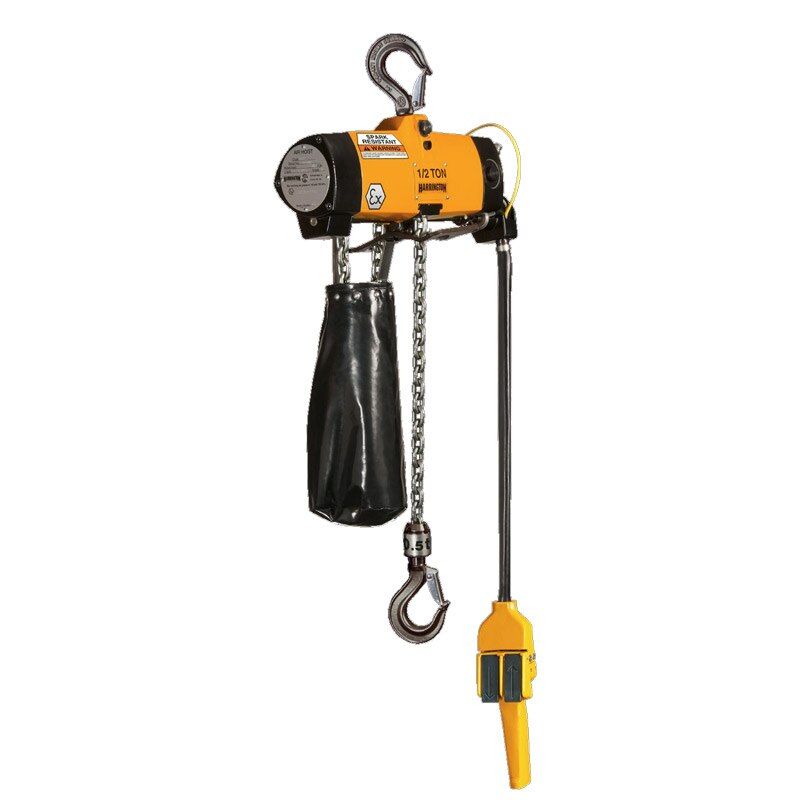

AS Series Spark Resistant Chain Hoists
Harrington’s AS Series air hoists are built using materials that will reduce or eliminate risk of spark produced by impact or friction in heavy-duty industrial applications.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Weight (lbs) | Capacity (lbs) | Capacity (tons) | Price | Qty | |
|---|---|---|---|---|---|---|
 AS003CAS003C | Spark Resistant Air Chain Hoist, 500 lb capacity, Cord$4,648.07 | 37.5 | 500 | 0.25 | $4,648.07 | 1 | View details |
| AS005CAS005C | Spark Resistant Air Chain Hoist, 1000 lb capacity, Cord$5,934.95 | 37.5 | 1000 | 0.5 | $5,934.95 | 1 | View details |
| AS005PAS005P | Spark Resistant Air Chain Hoist, 1000 lb capacity, Pendant$6,716.63 | 39 | 1000 | 0.5 | $6,716.63 | 1 | View details |
| TCE500PTCE500P | Spark Resistant Air Chain Hoist, 500 lb capacity, 10 ft lift$7,226.62 | 39 | 500 | 0.25 | $7,226.62 | 1 | View details |
Details
Product information
Overview
Harrington’s AS Series air hoists are built using materials that will reduce or eliminate risk of spark produced by impact or friction in heavy-duty industrial applications. These hoists are ATEX certified spark resistant (Explosive atmospheres that require features that reduce the risk of spark) to level ATEX II 2GD c T5 IIC T100°C and are in compliance with the EU ATEX Directive. AS Series hoists are available in 1/4 and 1/2 Ton capacities in either pendant, cord or twist rod control and are also able to operate without lubrication in the air supply where required.
Spark Resistant Features:
- ATEX certified spark resistant to ATEX level II 2GD c T5 IIC T100°C
- Stainless steel load chain
- Stainless steel top and bottom hooks
- Stainless steel hook latches
- Stainless steel hardware
Reliable Features
- Heavy-duty disc brake
- Reliable vane motor
- Planetary gearing system
- Lightweight and compact cast aluminum body
- Upper / lower limit switches
Hazardous Location Examples
- Petrochemical/chemical processing
- Pharmaceutical processing
- Grain handling, storage and processing
- Paint booths (liquid, powders)
| Features & Benefits | |
|---|---|
| ATEX certified spark resistant | |
| 500 - 1000 lb capacity | |
| Cord and Pendant Models Availble | |
| From $4150 |
