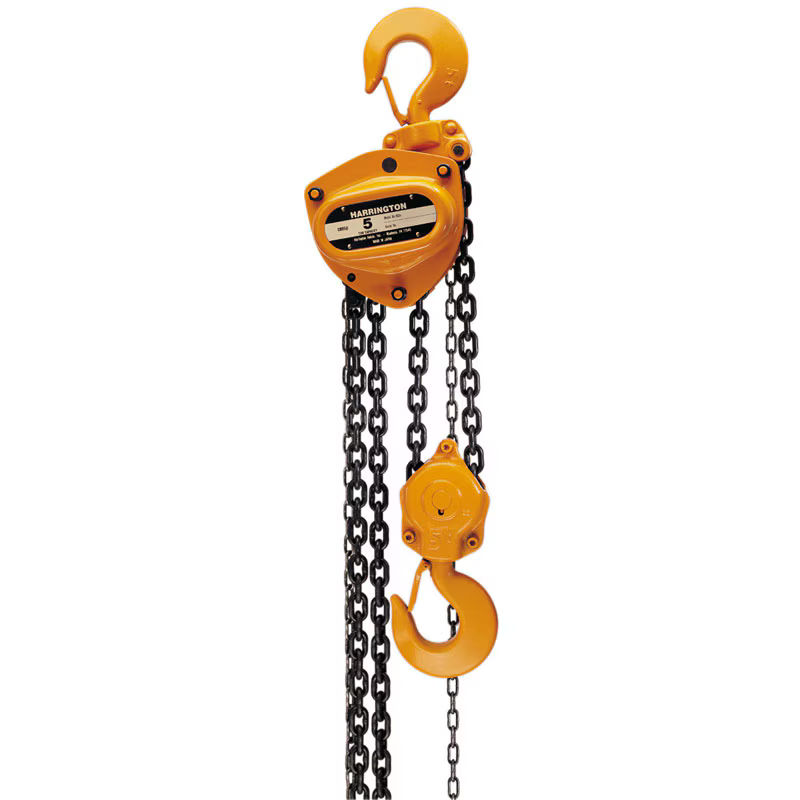

CB Chain Hoists

Built to withstand rugged, day-in, day-out use and they are easily maintained and repairable making them the perfect hoist for a long-lasting fleet of industrial products.

Models and pricing below

Documents3 files

Models Available

11 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Weight (lbs)	Capacity (lbs)	Price	Qty
CB005-8CB005 \| CB005-8 \| Chain Hoist, 1000 lb cap, 8 ft lift$878.39	CB005-8	23.00	1000	$878.39	1	View details
CB010-8CB010 \| CB010-8 \| Chain Hoist, 2000 lb cap, 8 ft lift$1,071.11	CB010-8	26.00	2000	$1,071.11	1	View details
CB015-8CB015 \| CB015-8 \| Chain Hoist, 3000 lb cap, 8 ft lift$1,499.75	CB015-8	34.00	3000	$1,499.75	1	View details
CB020-8CB020 \| CB020-8 \| Chain Hoist, 4000 lb cap, 8 ft lift$1,714.67	CB020-8	46.00	4000	$1,714.67	1	View details
CB025-8CB025 \| CB025-8 \| Chain Hoist, 5000 lb cap, 8 ft lift$2,102.39	CB025-8	61.00	5000	$2,102.39	1	View details
CB030-8CB030 \| CB030-8 \| Chain Hoist, 6000 lb cap, 8 ft lift$2,889.58	CB030-8	57.00	6000	$2,889.58	1	View details
CB050-8CB050 \| CB050-8 \| Chain Hoist, 10000 lb cap, 8 ft lift$3,368.51	CB050-8	95.00	10000	$3,368.51	1	View details
CB080-8CB080 \| CB080-8 \| Chain Hoist, 16000 lb cap, 8 ft lift$4,381.19	CB080-8	146.00	16000	$4,381.19	1	View details
CB100-12CB100 \| CB100-12 \| Chain Hoist, 20000 lb cap, 12 ft lift$5,404.43	CB100-12	201.00	20000	$5,404.43	1	View details
CB150-12CB150 \| CB150-12 \| Chain Hoist, 30000 lb cap, 12 ft lift$9,762.23	CB150-12	364.00	30000	$9,762.23	1	View details
CB200-12CB200 \| CB200-12 \| Chain Hoist, 40000 lb cap, 12 ft lift$12,386.63	CB200-12	672.00	40000	$12,386.63	1	View details

Overview

Harrington CB hand chain hoists combine a rugged exterior shell with machined interior components to handle your most demanding lifting operations. An efficient drive train minimizes manual effort, while double enclosed brake cover, standard slip clutch, and double pawl springs enhance performance and reliability.

Features:

Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and handwheel cover.
Enjoy increased lifting height thanks to low headroom.
Compact design results in lightweight and easy portability.
Minimize manual effort thanks to efficient drive train.
Standard slip clutch device prevents the hoist from being used to lift damaging loads beyond rated capacity.
Double pawl springs provide redundancy for reliable operation of brake mechanism.
Get reliable braking with double enclosed brake cover that keeps out dust, rain, and dirt.

Capabilities:

8-foot standard lift (12-foot for 10 Ton and greater), nonstandard lifts and hand chain drops are also available.
Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight.
Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads.
Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with AS ME B30.16 requirements.

Options

Chain container
Corrosion-resistant chain
Inspection hook

Features & Benefits
Premium Grade Components
High-Impact Steel Housing
Abrasion-Resistant Load Chain
Bearing-Supported High-Strength Pinion
