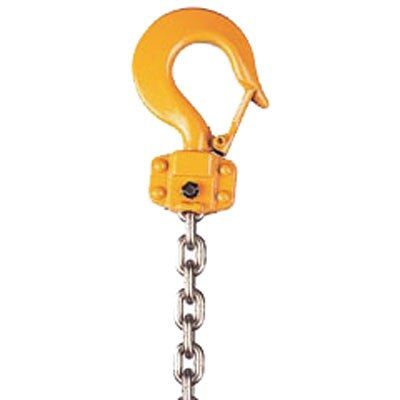

Top Hook Extender for LB008,015, 020,028,030 Lever Chain Hoists

Harrington LB008-030-THE

Top Hook Extender For Lb008,015, 020,028,030 Lever Chain Hoists

The LB Series of lever hoists offers a low headroom, compact design that is perfect for use in tight quarters. Regarded as the best lever hoist in the industry, our LB is recommended for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.

Features

• Rugged, all-steel construction that actually weighs less than comparable aluminum models.
• Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with
• four braking surfaces. Includes two brake pawls for additional reliability.
• Enjoy protection against dirt and moisture with a totally enclosed brake mechanism.
• Ensure long life with machined, heat-treated, split load double reduction gears.
• Operate in close quarters with short steel handle and 15-degree recovery strokes.
• Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load.
• Equipped with standard rubber grip for non-slip operation.

Capabilities:

• 5-foot lift is standard, 10-, 15- and 20-foot lifts also stocked; nonstandard lifts available as well.
• Grade 100 heat-treated load chain is nickel plated for corrosion resistance.
• Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads. Top and bottom hooks rotate 360°.
• Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with AS ME B30.21 requirements.

Options Available

• Load limit warning handle
• Top hook extender
• Point load hook
• Slip clutch
• Inspection hook
• Bullard® and Shur-Loc® hooks
