Mini Series Hoists

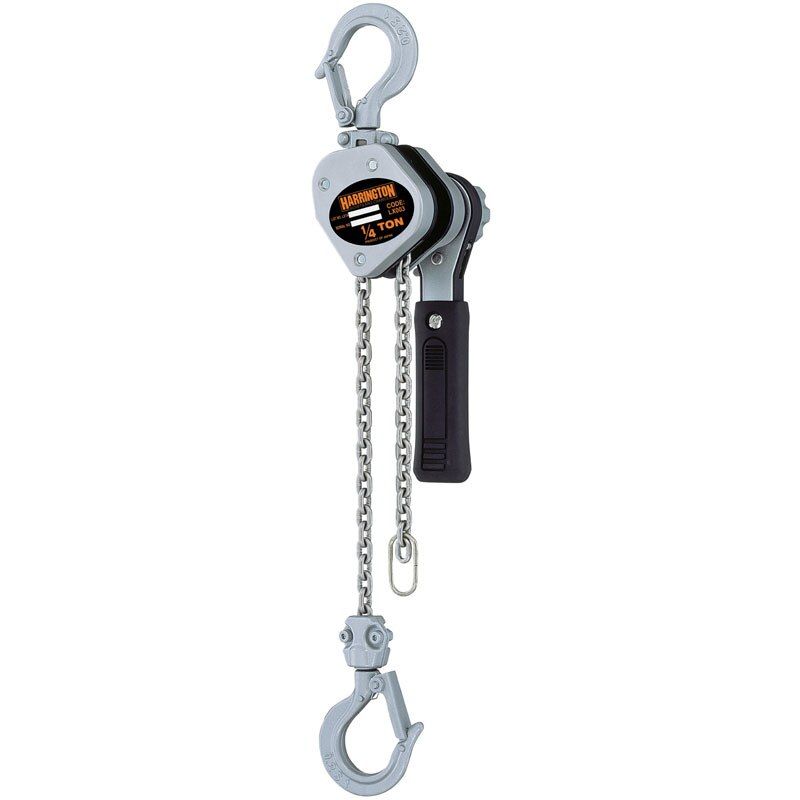

Harrington’s LX/CX mini puller is lightweight, compact and built to perform. It fits conveniently in a toolbox and will easily handle pulling and moving jobs in many applications including transportation, construction and plumbing.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Weight (lbs) | Type | Price | Qty | |
|---|---|---|---|---|---|---|
 CX003-10CX003 | CX003-10 | Chain Hoist, 500 lb cap, 10 ft lift$455.82 | CX003-10 | 7 | Hand Chain Hoist | $455.82 | 1 | View details |
| CX003-20CX003 | CX003-20 | Chain Hoist, 500 lb cap, 20 ft lift$691.25 | CX003-20 | 9 | Hand Chain Hoist | $691.25 | 1 | View details |
 LX003-5LX003 | LX003-5 | Lever Chain Hoist, 500 lb cap, 5 ft lift$294.08 | LX003-5 | 4 | Mini Puller | $294.08 | 1 | View details |
| LX005-5LX005 | LX005-5 | Lever Chain Hoist, 1000 lb cap, 5 ft lift$414.12 | LX005-5 | 6 | Mini Puller | $414.12 | 1 | View details |
Details
Product information
Overview
Harrington’s LX/CX mini puller is lightweight, compact and built to perform. It fits conveniently in a toolbox and will easily handle pulling and moving jobs in many applications including transportation, construction and plumbing. Available in two capacities to fit all applications. The 1⁄2 Ton capacity is unique to the industry.
Features:
- Durable die-cast aluminum body with steel frame is compact and lightweight.
- Very low headroom design for use in tight spaces.
- Free-chain mechanism allows for quick adjustments.
- Extremely low pulling force is required for operation.
- Weston-style brake is totally enclosed to protect against dirt, dust and rain.
- Single step reduction gear assures load holding performance.
- Load chain guide mechanism permits smooth and quiet guiding of chain.
- Rubber handle grip for ease of use.
- Effortless to transport, install and store
Capabilities:
- Grade 100, nickel-plated load chain is corrosion and wear resistant.
- Strong hook latches include notched tip.
- 5-foot lift is standard. Longer lifts are available in both capacities.
- Sold individually or in convenient multi-packs— 1⁄4 Ton in 6-packs and 1⁄2 Ton in 4-packs.
- Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity in accordance with ASME B30.21 requirements.
Options
- Heavy Duty Carrying Case
| Features & Benefits | |
|---|---|
| Capacity: 250 - 500 lbs (0.25 - 0.5 tons) | |
| Added Options Available | |
| Capacity: 250 - 500 lbs (0.25 - 0.5 tons),Added Options Available |
