Harrington

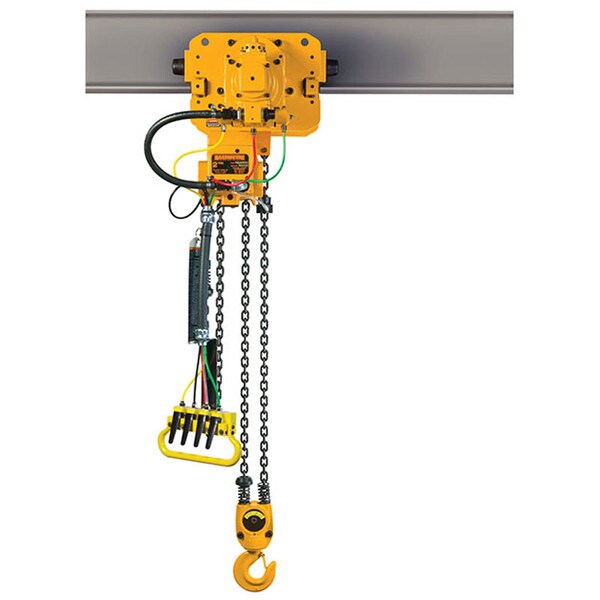

TCRG Air Trolley Hoists

TCRG air powered trolley hoists have the power you can count on and are the ideal choice for transporting medium to heavy loads in construction and foundry applications.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Documents5 files

Models Available

28 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductModelWeight (lbs)PriceQty
TCRG1000-2-H-C-10TCRG1000-2 | TCRG1000-2-H-C-10 | Air Trolley Hoist, geared, hook-cord, 2000 lb cap, 10 ft lift$4,205.63TCRG1000-2-H-C-1076$4,205.631View details
TCRG1000-2-H-P-10TCRG1000-2 | TCRG1000-2-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 2000 lb cap, 10 ft lift$5,017.67TCRG1000-2-H-P-1076$5,017.671View details
TCRG1000-2-L-C-10TCRG1000-2 | TCRG1000-2-L-C-10 | Air Trolley Hoist, geared, lug-cord, 2000 lb cap, 10 ft lift$4,297.43TCRG1000-2-L-C-1076$4,297.431View details
TCRG1000-2-L-P-10TCRG1000-2 | TCRG1000-2-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 2000 lb cap, 10 ft lift$5,109.47TCRG1000-2-L-P-1076$5,109.471View details
TCRG1000-H-C-10TCRG1000 | TCRG1000-H-C-10 | Air Trolley Hoist, geared, hook-cord, 2000 lb cap, 10 ft lift$5,070.23TCRG1000-H-C-1073.5$5,070.231View details
TCRG1000-H-P-10TCRG1000 | TCRG1000-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 2000 lb cap, 10 ft lift$5,304.35TCRG1000-H-P-1073.5$5,304.351View details
TCRG1000-L-C-10TCRG1000 | TCRG1000-L-C-10 | Air Trolley Hoist, geared, lug-cord, 2000 lb cap, 10 ft lift$5,241.59TCRG1000-L-C-1073.5$5,241.591View details
TCRG1000-L-P-10TCRG1000 | TCRG1000-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 2000 lb cap, 10 ft lift$5,476.79TCRG1000-L-P-1073.5$5,476.791View details
TCRG2000-2-H-C-10TCRG2000-2 | TCRG2000-2-H-C-10 | Air Trolley Hoist, geared, hook-cord, 4000 lb cap, 10 ft lift$6,588.95TCRG2000-2-H-C-1086$6,588.951View details
TCRG2000-2-H-P-10TCRG2000-2 | TCRG2000-2-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 4000 lb cap, 10 ft lift$6,721.19TCRG2000-2-H-P-1086$6,721.191View details
TCRG2000-2-L-C-10TCRG2000-2 | TCRG2000-2-L-C-10 | Air Trolley Hoist, geared, lug-cord, 4000 lb cap, 10 ft lift$6,721.19TCRG2000-2-L-C-1086$6,721.191View details
TCRG2000-2-L-P-10TCRG2000-2 | TCRG2000-2-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 4000 lb cap, 10 ft lift$6,924.95TCRG2000-2-L-P-1086$6,924.951View details
TCRG250-H-C-10TCRG250 | TCRG250-H-C-10 | Air Trolley Hoist, geared, hook-cord, 500 lb cap, 10 ft lift$3,436.19TCRG250-H-C-1068$3,436.191View details
TCRG250-H-P-10TCRG250 | TCRG250-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 500 lb cap, 10 ft lift$4,283.99TCRG250-H-P-1068$4,283.991View details
TCRG250-L-C-10TCRG250 | TCRG250-L-C-10 | Air Trolley Hoist, geared, lug-cord, 500 lb cap, 10 ft lift$3,526.91TCRG250-L-C-1068$3,526.911View details
TCRG250-L-P-10TCRG250 | TCRG250-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 500 lb cap, 10 ft lift$4,431.83TCRG250-L-P-1068$4,431.831View details
TCRG3000-H-C-10TCRG3000 | TCRG3000-H-C-10 | Air Trolley Hoist, geared, hook-cord, 6000 lb cap, 10 ft lift$8,235.35TCRG3000-H-C-10152$8,235.351View details
TCRG3000-H-P-10TCRG3000 | TCRG3000-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 6000 lb cap, 10 ft lift$8,294.75TCRG3000-H-P-10152$8,294.751View details
TCRG3000-L-C-10TCRG3000 | TCRG3000-L-C-10 | Air Trolley Hoist, geared, lug-cord, 6000 lb cap, 10 ft lift$8,348.51TCRG3000-L-C-10152$8,348.511View details
TCRG3000-L-P-10TCRG3000 | TCRG3000-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 6000 lb cap, 10 ft lift$8,407.91TCRG3000-L-P-10152$8,407.911View details
TCRG500-H-C-10TCRG500 | TCRG500-H-C-10 | Air Trolley Hoist, geared, hook-cord, 1000 lb cap, 10 ft lift$3,495.59TCRG500-H-C-1068$3,495.591View details
TCRG500-H-P-10TCRG500 | TCRG500-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 1000 lb cap, 10 ft lift$4,341.11TCRG500-H-P-1068$4,341.111View details
TCRG500-L-C-10TCRG500 | TCRG500-L-C-10 | Air Trolley Hoist, geared, lug-cord, 1000 lb cap, 10 ft lift$3,582.95TCRG500-L-C-1068$3,582.951View details
TCRG500-L-P-10TCRG500 | TCRG500-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 1000 lb cap, 10 ft lift$4,431.83TCRG500-L-P-1068$4,431.831View details
TCRG6000-2-H-C-10TCRG6000-2 | TCRG6000-2-H-C-10 | Air Trolley Hoist, geared, hook-cord, 12000 lb cap, 10 ft lift$12,474.59TCRG6000-2-H-C-10199$12,474.591View details
TCRG6000-2-H-P-10TCRG6000-2 | TCRG6000-2-H-P-10 | Air Trolley Hoist, geared, hook-pendant, 12000 lb cap, 10 ft lift$12,883.43TCRG6000-2-H-P-10199$12,883.431View details
TCRG6000-2-L-C-10TCRG6000-2 | TCRG6000-2-L-C-10 | Air Trolley Hoist, geared, lug-cord, 12000 lb cap, 10 ft lift$12,725.51TCRG6000-2-L-C-10199$12,725.511View details
TCRG6000-2-L-P-10TCRG6000-2 | TCRG6000-2-L-P-10 | Air Trolley Hoist, geared, lug-pendant, 12000 lb cap, 10 ft lift$13,135.43TCRG6000-2-L-P-10199$13,135.431View details

Details

Product information

Overview

Harrington’s TCR Series air hoists offer the benefit of lifting heavier loads while maintaining low headroom and a continuous duty cycle. These hoists are best suited for use in foundries, assembly lines, construction sites and many other demanding applications.

Features:

  • Unlimted Duty Cycle - For continuous operation
  • Spring-Loaded Multi-Vane Motor Design - Permits very fine feathering control
  • High Strength Cast Iron Housing - Proven weather resistant and durable in harsh environments
  • Airtight Hoist - Results in efficient use of air
  • Comfortable Noise Levels - External muffler reduces noise level to 80dBA @ 1 yd. with no load
  • Heavy Duty Self-Adjusting Brake - For precise braking action
  • Standard Upper & Lower Limit Stops - Prevents over-travel of hook in either direction
  • Built-in Load Limiter - Pre-set to stop lifting when load is over rated capacity Adjustable
  • Wear Resistant Load Chain - Grade 80, case-hardened for superior strength
Features & Benefits
Compact yet heavy-duty MCR trolleys are able to transport heavy loads in the most demanding or harsh environments.
Built for long and demanding work shifts. With its unlimited duty cycle, you can continually operate the hoist without worrying about damage from too many starts per hour.
Proven to be resistant in harsh environments, the TCR’s high-strength cast-iron housing provides a rugged body that stands up to the toughest demands.
The TCR’s adjustable, built-in load limiter detects overload automatically and blocks air flow for lifting.
