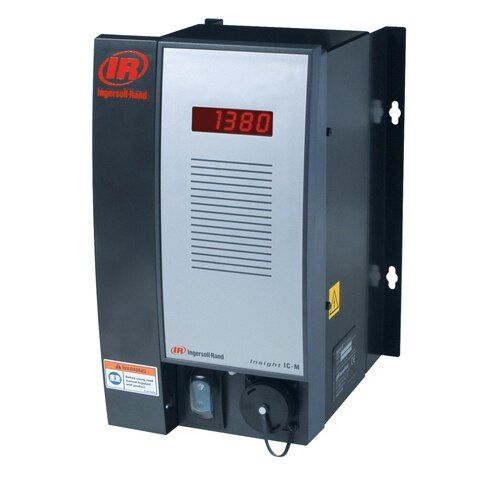

IC12M DC Controllers
The IC1M Series of DC Tool Controllers give you full closed loop-control in an industry leading compact size. Select exactly the system you need — no more, no less — by using our simple product selection guide.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
1 itemOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Price | Qty | |
|---|---|---|---|
 IC1M1A1AWSIC1M1A1AWS | 115V Numeric Display, 8 i/o Controller, SE Network | 1 | View details |
Details
Product information
Overview
The IC12M Series of controllers give you full closed loop-control in an industry leading compact size. With standard features like multiple torque strategies, digital display and Parameter Transfer Key, the IC1M units provide unmatched performance and value. These controllers have full communication capability using Ethernet, RS232, Fieldbus or standard I/O. Units may be programmed either with the Parameter transfer Key or via a PC running ICS software. A 0 to 60 degree C (32 to 140 F) internal operating range allow these units to be used in the most demanding conditions without risk of overheating. IC1D Controllers will self identify and operate all QE and QM Series of tools making set-up and operation an easy task.
Features
- One Line digital display
- Ethernet, RS232 and I/O communication
- DeviceNet and Profibus available
- Dual mode power supply: 90 - 120 VAC and 200 - 240 VAC
- Operating range of 0 to 60 degrees C
- Operates all QE and QM Series Tools
- Multiple mounting options
| Features & Benefits | |
|---|---|
| Accuracy: ±0.2% of torque full scale | |
| Resolution: ±0.025% of torque full scale | |
| Programmable Configurations: Up to 256 | |
| From $4,738 |
