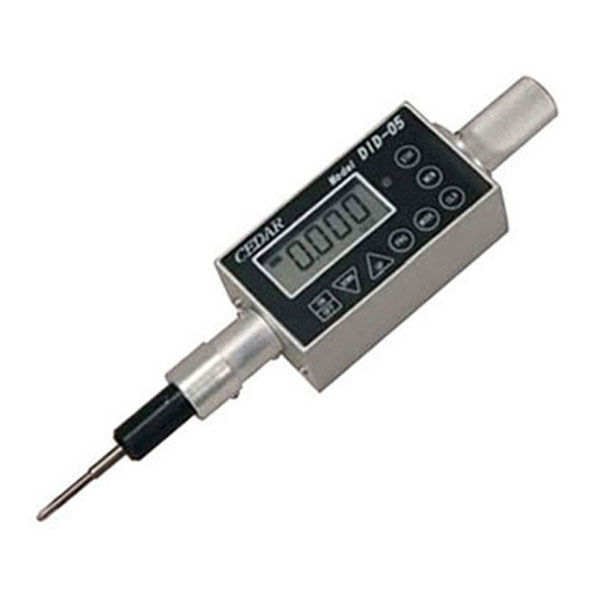

Digital Torque Screwdriver, 0.2 - 35 in lbs, 4mm FML RND
DID screwdrivers have an accuracy of ± 0.5% F.S., ±1 LSD. Includes programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO?testing.
A specialist replies within one business day.
Details
Product information
Overview
Imada Rechargeable Torque Screwdriver with Output
DID digital torque screwdrivers are rechargeable and feature an integral LCD display for convenient torque readings. The units are designed for screw tightening torque verification and measure in Peak, Real Time, Peak Down and Continuous Output measuring modes (selectable).
DID screwdrivers feature a programmable screw tightening counter that can minimize assembly errors by identifying mis-tightening and/or defective screws. Both units feature an 800 data internal memory as well as a USB virtual COM port to use with Imada’s specialized Torque Data Acquisition Spreadsheet.
DID-05 includes 4mm stepless one-way clutch, locking half round Phillips tip, full round Phillips tip, locking half round flat tip, full round flat tip, AC charger and carrying case
| Technical Specifications | |
|---|---|
| SKU | DID-05 |
| MPN | DID-05 |
| Features & Benefits | |
| Rechargable! Runs for up to 8 hours | |
| Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m | |
| Peak, Real Time, Peak Down and Continuous Output modes (selectable) | |
| Selectable units ozf-in | |
| lbf-in | |
| kgf-cm | |
| N-cm and N-m | |
| Peak | |
| Real Time | |
| Peak Down and Continuous Output modes (selectable) | |
