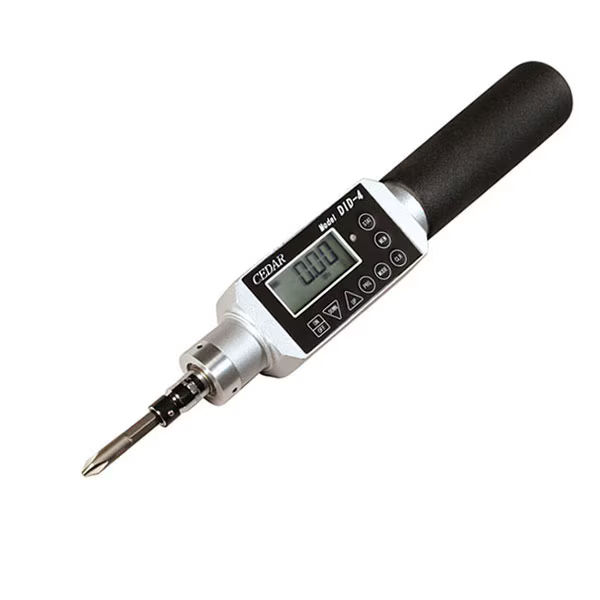

Digital Torque Screwdriver, 0.02 - 4.5 in lbs, 1/4'' square
DID screwdrivers have an accuracy of ± 0.5% F.S., ±1 LSD. Includes programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO?testing.
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08 | $76.08 | 1 | View details |
| $150.00 | 1 | View details |
Details
Product information
Overview
Imada Rechargeable Torque Screwdriver with Output
DID digital torque screwdrivers are rechargeable and feature an integral LCD display for convenient torque readings. The units are designed for screw tightening torque verification and measure in Peak, Real Time, Peak Down and Continuous Output measuring modes (selectable).
DID screwdrivers feature a programmable screw tightening counter that can minimize assembly errors by identifying mis-tightening and/or defective screws. Both units feature an 800 data internal memory as well as a USB virtual COM port to use with Imada’s specialized Torque Data Acquisition Spreadsheet.
DID-4A with 1/4'' square drive includes 1/4'' female square to 1/4'' hex adapter, 2-1/4'' Phillips tips, AC charger and carrying case. Optional ratchet (CW, CCW and fixed operation) and optional small Jacobs chuck (up to 2 mm dia.) available
| Technical Specifications | |
|---|---|
| SKU | DID-4A |
| Manufacturer | Imada |
| MPN | DID-4A |
| Features & Benefits | |
| Rechargable! Runs for up to 8 hours | |
| Selectable units ozf-in, lbf-in, kgf-cm, N-cm | |
| Peak, Real Time, Peak Down and Continuous Output modes (selectable) | |
| Ergonomic and light weight, yet ruggedly constructed | |
| Selectable units ozf-in | |
| lbf-in | |
| kgf-cm | |
| N-cm | |
| Peak | |
| Real Time | |
| Peak Down and Continuous Output modes (selectable) | |
| Ergonomic and light weight | |
| yet ruggedly constructed | |
