W5330-K1 | 20V 3/8 in. square Impact Wrench Kit, 190 ft lbs, Hog Ring, 1 battery
The 20V Right Angle Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFBrochuresOpen
- PDFWarrantyOpen
- TIFFEnvironmentOpen
- PDFIngersoll Rand IQV Cordless Tools Catalog (PDF)Open
- PDFIngersoll Rand W5330 Product Information (PDF)Open
- PDFIngersoll Rand W5330 Product Manual (PDF)Open
- PDFIngersoll Rand Cordless Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand W5330 Parts Breakdown (PDF)Open
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Weight (lbs) | Dimensions | Price | Qty | |
|---|---|---|---|---|---|
 BL2005-BOOTBL2005-BOOT | BL2005 Protective Battery Boot$26.25 | 0.13 | 4.5 x 3.25 x 2.75 in. | $26.25 | 1 | View details |
 BL2010-BOOTBL2010-BOOT | BL2010 & BL2022 Protective Battery Boot$24.91 | 0.18 | 4.5 x 3.25 x 2 in. | $24.91 | 1 | View details |
 BL2022BL2022 | 20V LI-ION BATTERY, 5.0Ah$208.73 | 1.61 | — | $208.73 | 1 | View details |
 W5330-BOOTW5330-BOOT | W5330/W5350 Protective Tool Boot$26.93 | 0.16 | 4.5 x 2.5 x 2.25 in. | $26.93 | 1 | View details |
 W5330W5330 | 20V 3/8 in. square Impact Wrench, 190 ft lbs, Hog Ring$316.09 | — | — | $316.09 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand 20V 3/8 in. square Impact Wrench Kit, 190 ft lbs, Hog Ring, 1 battery
20V 3/8 in. square Impact Wrench Kit, 190 ft lbs, Hog Ring, 1 battery, model W5330-K12 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench Kit available elsewhere for a lower price? Contact Customer Service about price matching!
W5330-K12 by Ingersoll Rand
The W5330-K12 Impact Wrench Kit runs on a 20V Lithium-Ion Battery. This Ingersoll Rand Angle Head Impact Wrench Kit also runs on a 3/8 in. square drive.
With a free speed of 1900 rpm, the Ingersoll Rand W5330-K12 has a maximum torque of 190 ft lbs (258 Nm)

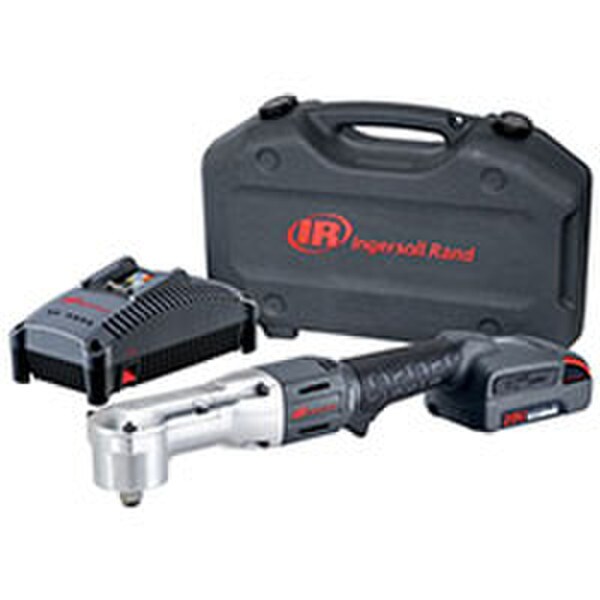

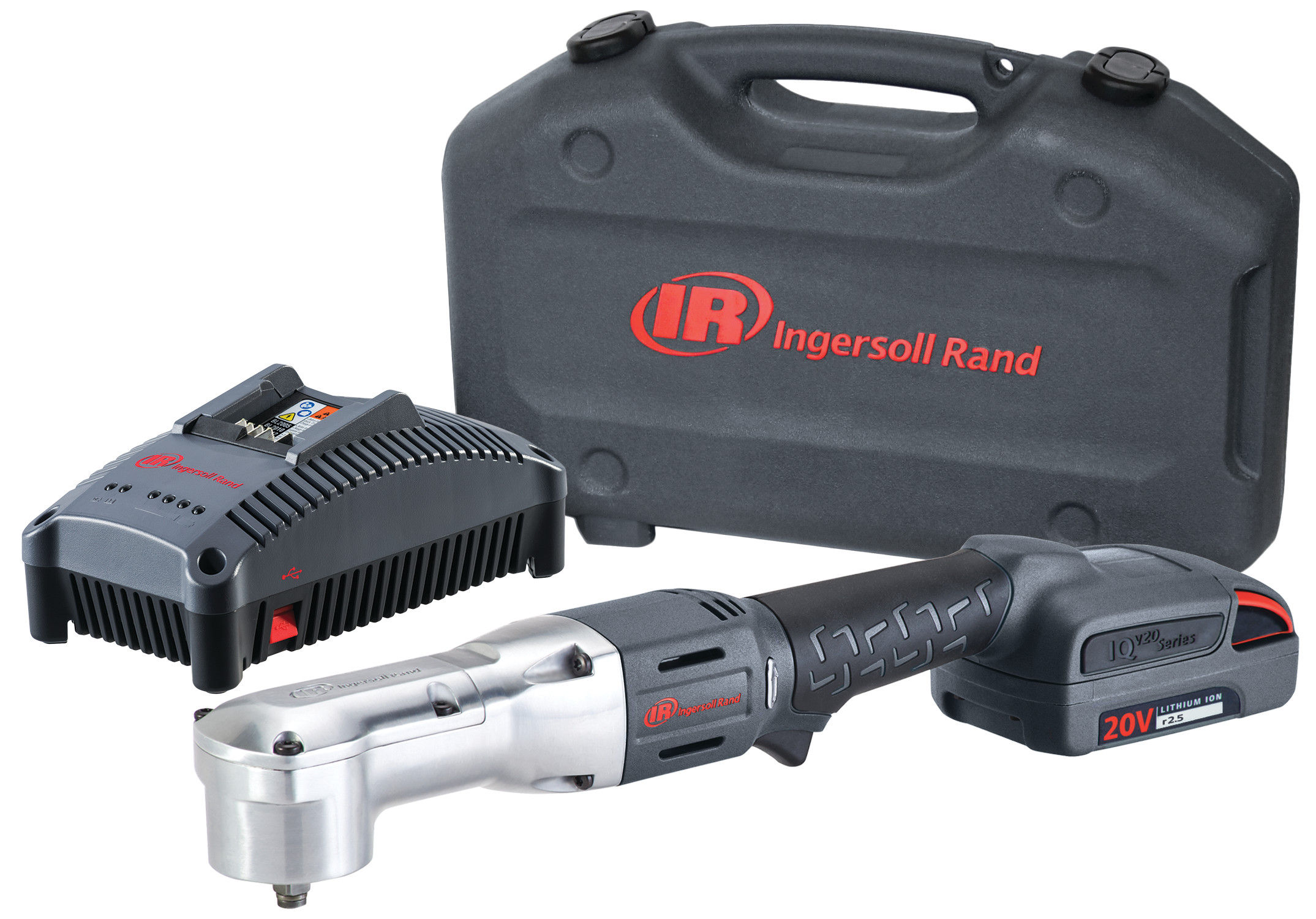

Included with the W5330-K12 Impact Wrench Kit: 3/8" Impact Wrench, Charger, 1 BL2012 Li-ion Battery & Case
Note: BC1120 Power supply required to use the W5330-K12
| Technical Specifications | |
|---|---|
| Power Source | Battery Powered |
| Sound Pressure | 90 / 101 |
| Vibration Level | 10 |
| Retainer | Friction Ring |
| Drive Size | 3/8" |
| Max Torque (ft-lb) | 181 |
| Max Torque (in-lb) | 2168 |
| Max Torque (Nm) | 245 |
| Free Speed (RPM) | 1850 |
| Tracking | No Wireless Functionality |
| Drive Type | Square |
| Vibration Uncertainty | 6.3 |
| Voltage | 20 |
| Batteries Required | 1 |
| Weight (lbs) | 3.7 |
| Weight (kg) | 1.68 |
| Length (in) | 15.8 |
| Length (mm) | 401 |
| Width (in) | 2.13 |
| Width (mm) | 54 |
| Height (in) | 2.2 |
| Height (mm) | 56 |
| Housing Material | Impact and chemical-resistant composite housing |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Right Angle |
| MPN | W5330-K1 |
| Features & Benefits | |
| Built to last, this wrench featuring a durable aluminum hammer case, will deliver the right power every time you pull the trigger. | |
| Thanks to its ergonomic build, this wrench can easily reach any tight spaces you need to work on | |
| With a high torque output and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself. | |
| Thanks to its ergonomic build, this wrench can easily reach any tight spaces you need to work on,With a high torque output and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself. | |
