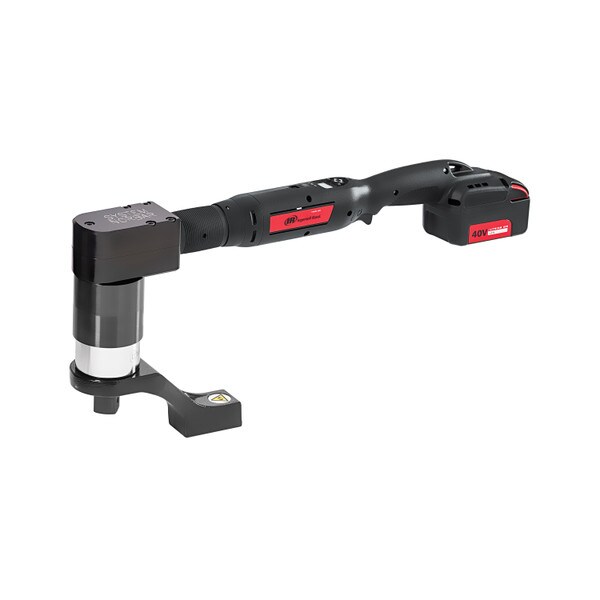

40V Cordless Torque Multiplier, 59 - 291 ft lbs, 3/4'', 802.15.4 and Bluetooth
Meet the tool that’s taking torque to the next level - Ingersoll Rand's new QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|
 BL2005-BOOTBL2005-BOOT | BL2005 Protective Battery Boot$26.25 | 0.13 | $26.25 | 1 | View details |
 BL2010-BOOTBL2010-BOOT | BL2010 & BL2022 Protective Battery Boot$24.91 | 0.18 | $24.91 | 1 | View details |
 BL2012BL2012 | 20V LI-ION COMPACT BATTERY, 2.5Ah$148.13 | 0.95 | $148.13 | 1 | View details |
 BL2022BL2022 | 20V LI-ION BATTERY, 5.0Ah$208.73 | 1.61 | $208.73 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand 20V Cordless Angle Torque Multiplier, 59 - 291 ft lbs, 3/4 in. square drive
20V Cordless Angle Torque Multiplier, 59 - 291 ft lbs, 3/4 in. square drive, model QXX2A52T0396PS12 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Cordless Angle Torque Multiplier available elsewhere for a lower price? Contact Customer Service about price matching!
QXX2A52T0396PS12 by Ingersoll Rand
The QXX2A52T0396PS12 Cordless Angle Torque Multiplier runs on a 20V Lithium-Ion Battery. This Ingersoll Rand Angle Head Cordless Angle Torque Multiplier also runs on a 3/4 in. square drive.
With a free speed of 21 rpm, the QXX2A52T0396PS12 Cordless Angle Torque Multiplier has a torque range of 59 - 291 ft lbs. The QXX2A52T0396PS12 commiciates via Wireless connection.
The QXX2A52T0396PS12 Cordless Angle Torque Multiplier communicates via Wireless
Note: BL2010, BL2012, or BL2022 battery required to use the QXX2A52T0396PS12
| Technical Specifications | |
|---|---|
| Power Source | Battery Powered |
| Duty Rating | Heavy Duty |
| Retainer | Thru-hole |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 291 |
| Max Torque (in-lb) | 3496 |
| Max Torque (Nm) | 395 |
| Free Speed (RPM) | 21 |
| Tracking | Bluetooth |
| Drive Type | Square |
| Motor Type | Brushless Motor |
| Voltage | 20 |
| Housing Material | Impact and chemical-resistant composite housing and patented steel reinforced frame |
| Color | Grey |
| Configuration | Right Angle |
| MPN | QXX2A52T0396PS12 |
| Features & Benefits | |
| Integrates with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller | |
| Share tightening data via email for post processing verification through the free INSIGHT Connect app | |
| Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network | |
| Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app | |
| Longevity in harsh applications with steel reinforced motor housing | |
| Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating | |
| Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery | |
| Integrates with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller,Share tightening data via email for post processing verification through the free INSIGHT Connect app,Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network,Longevity in harsh applications with steel reinforced motor housing,Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating,Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery,Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app | |
