2135PTiMAX | Impact Wrench, 1/2 in. square drive, 780 ft lbs
Overview

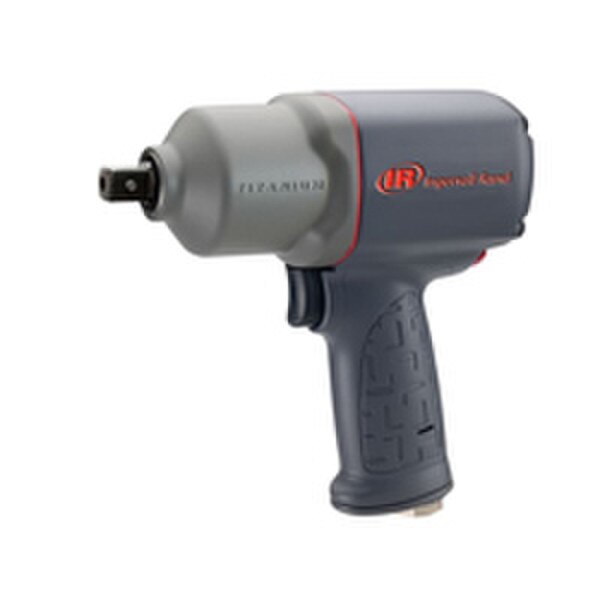

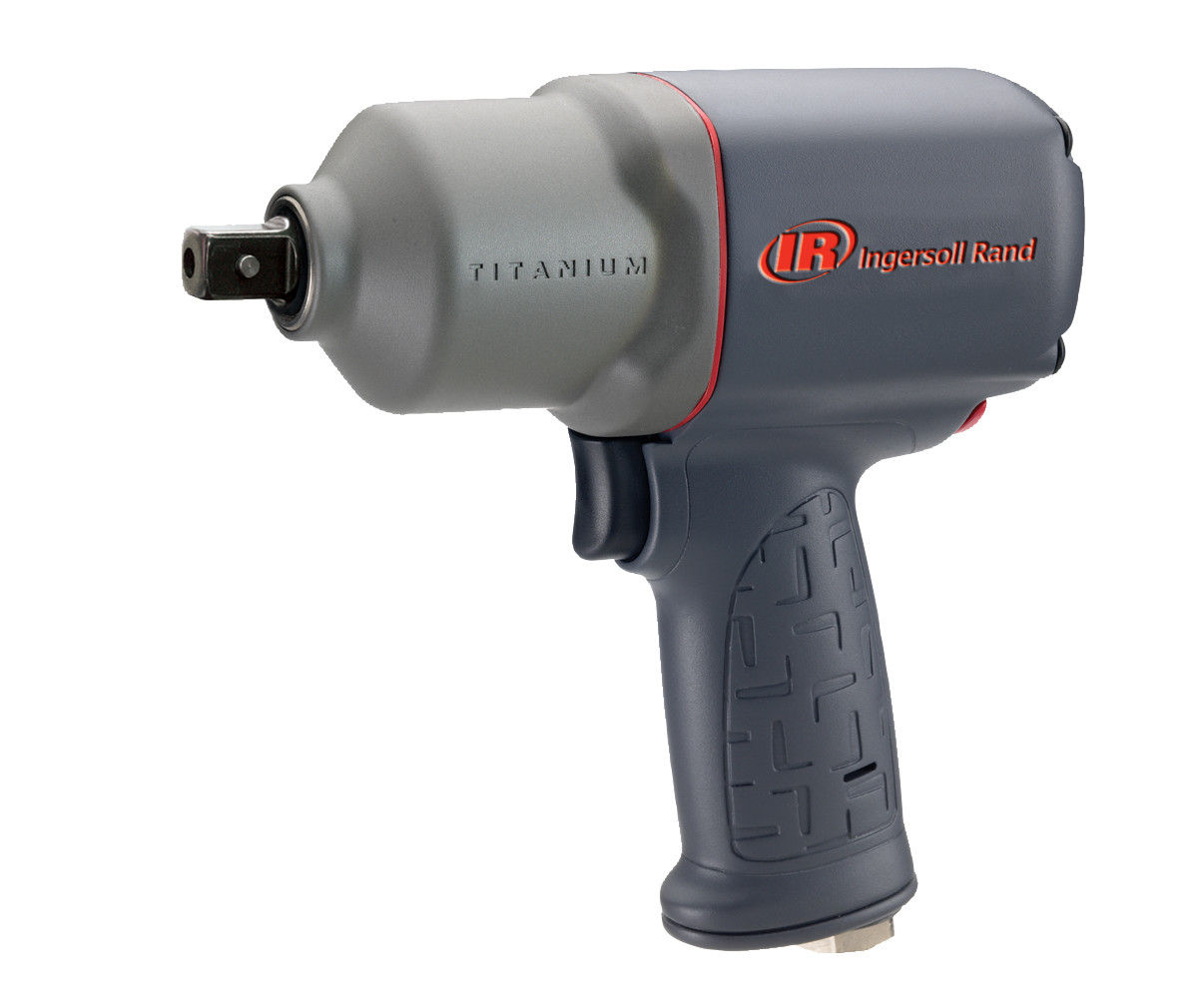

Ingersoll Rand Impact Wrench, 1/2 in. square drive, 780 ft lbs
Impact Wrench, 1/2 in. square drive, 780 ft lbs, model 2135PTiMAX by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2135PTiMAX by Ingersoll Rand
The 2135PTiMAX Impact Wrench has a 1/2 in. square drive and a free speed of 11000 rpm.
With the ability to go up to 1250 bpm, The Ingersoll Rand 2135PTiMAX can go up to a maximum torque of 780 ft lbs.
360° Product Viewer

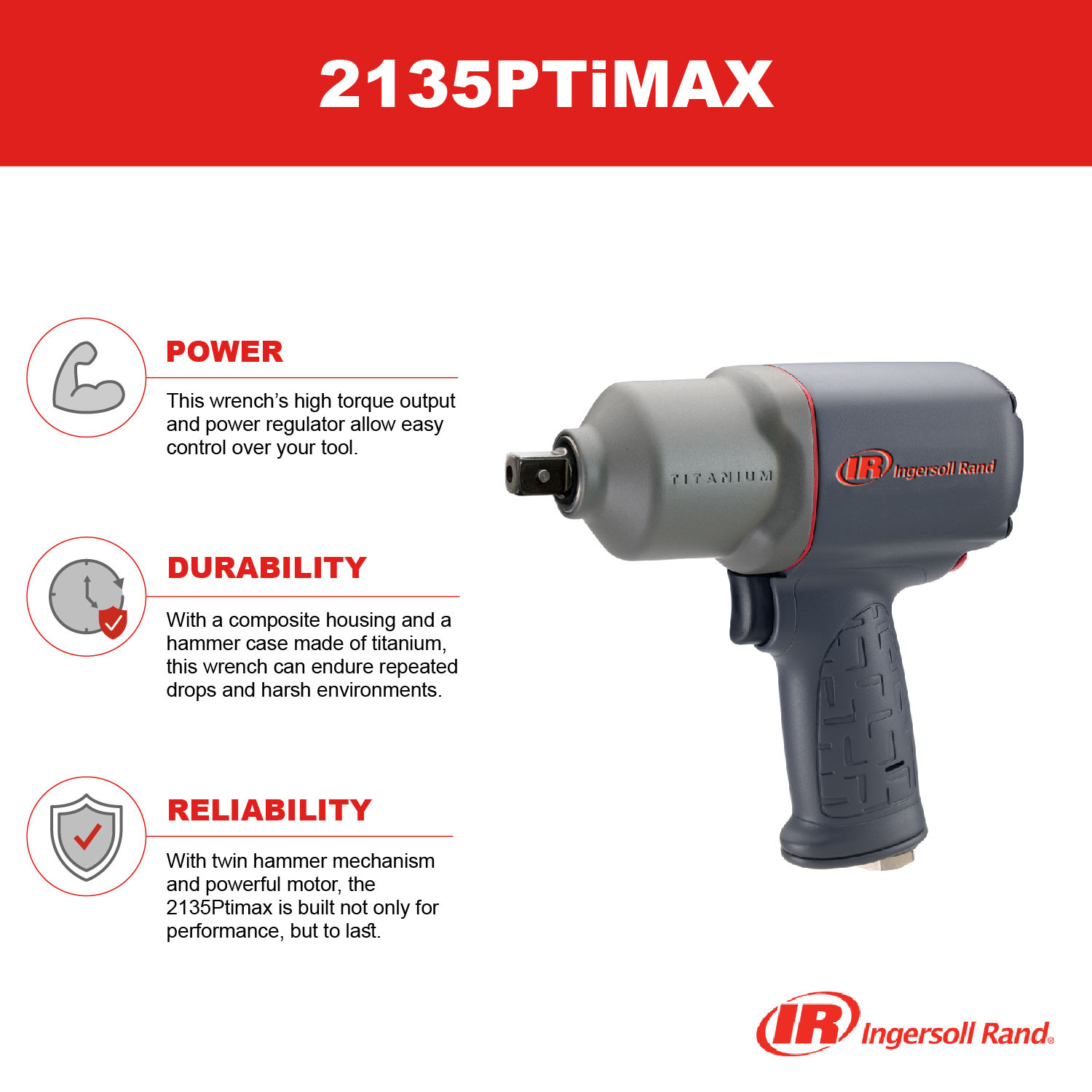

Features & Benefits
- High torque output and power regulator allows for easy control
- Can endure repeated drops and harsh environments
- Pin retainer
Technical Specifications
SKU: 2135PTIMAX-IR
Power Source
Air Powered
Vibration Level
13.3
Duty Rating
Maintenance Duty
Air Inlet Size
1/4" NPT
Min Hose Size
3/8
Air Pressure (PSI)
90
Avg Air Consumption
5
Retainer
Pin Detent
Drive Size
1/2
Max Torque (ft-lb)
780
Max Torque (in-lb)
9364
Max Torque (Nm)
1058
Free Speed (RPM)
9800
Drive Type
Square
Mechanism
Twin Hammer
Exhaust Direction
Bottom
Motor Type
Reverse Bias
Breakaway Torque (ft-lb)
1100
Breakaway Torque (Nm)
1491
Technical Documents
Ingersoll Rand 2135PTiMAX Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 2135PTiMAX Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
