Ingersoll Rand22N51-W/RC
Multi-Vane Air Motor, 1.75 hp, 89.5 Nm stall, reversible
With specialty governed motors for increased speed control, you’ll be able to wield the Model 22N51-W/RC with precision every time.
$15,759.38List $20,500.00
Save $4,740.62Total$15,759.38Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
22N51-W/RC | Multi-Vane Air Motor, 1.75 hp, 89.5 Nm stall, reversible22N51-W/RC
Total$15,759.38
1
Details
Product information
Overview

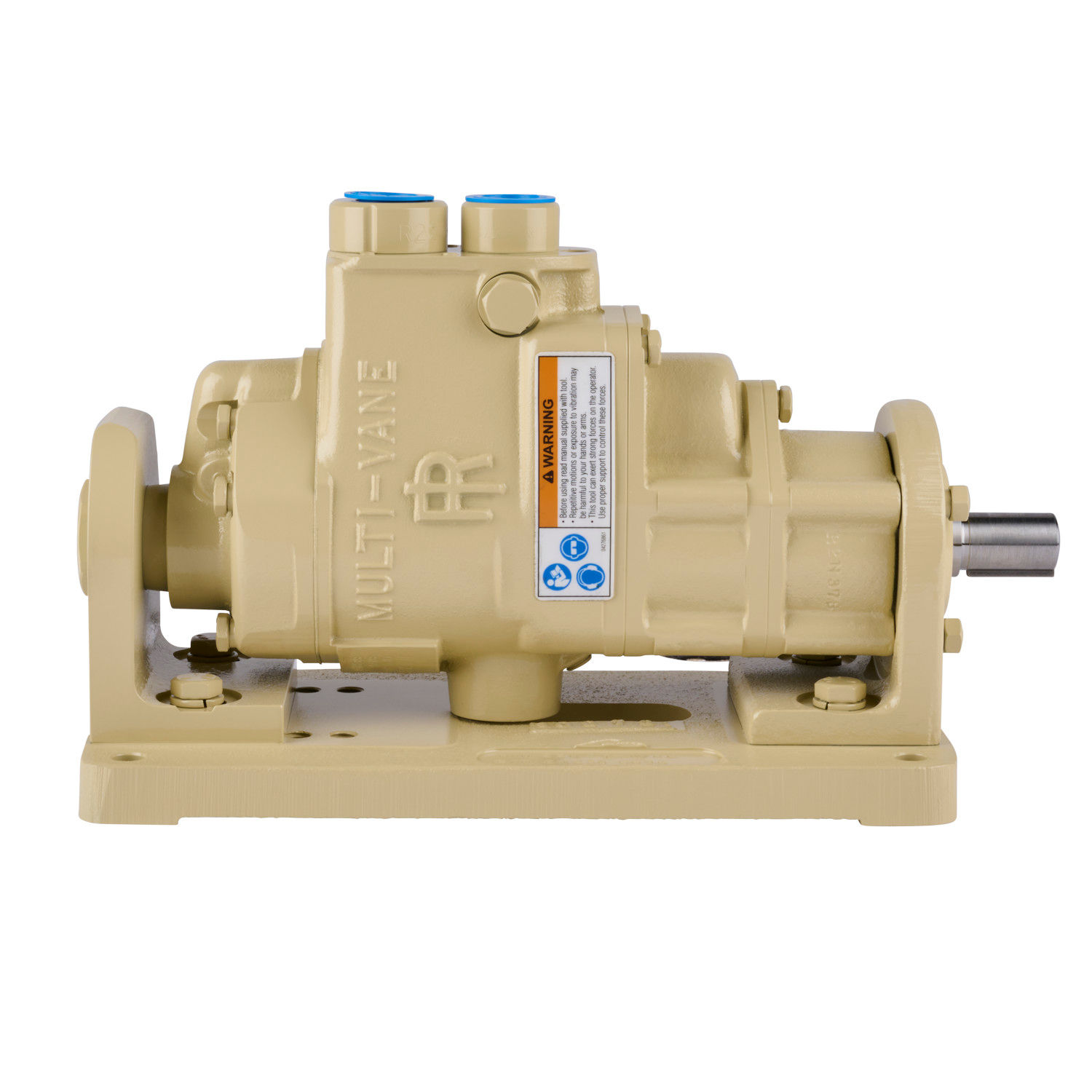

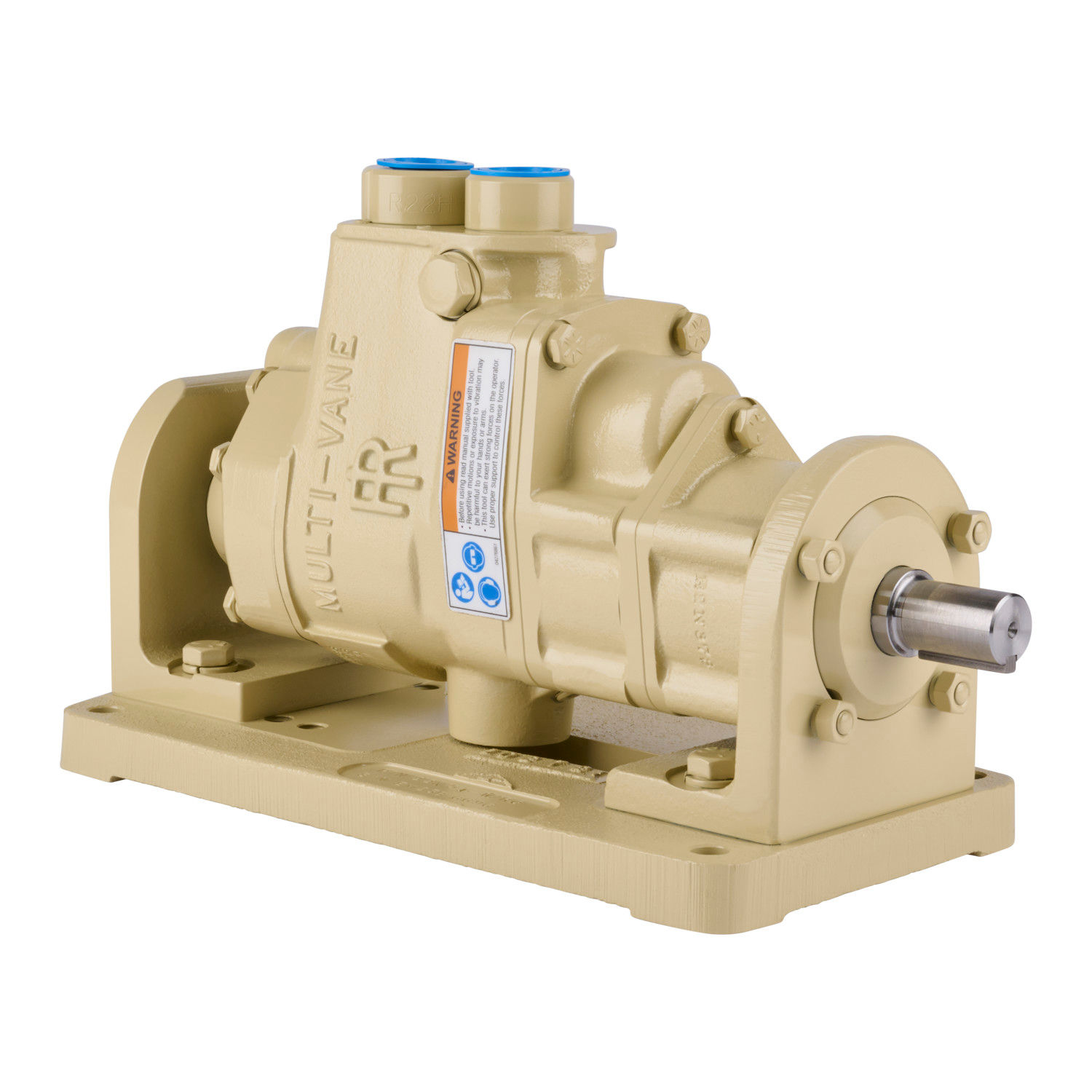

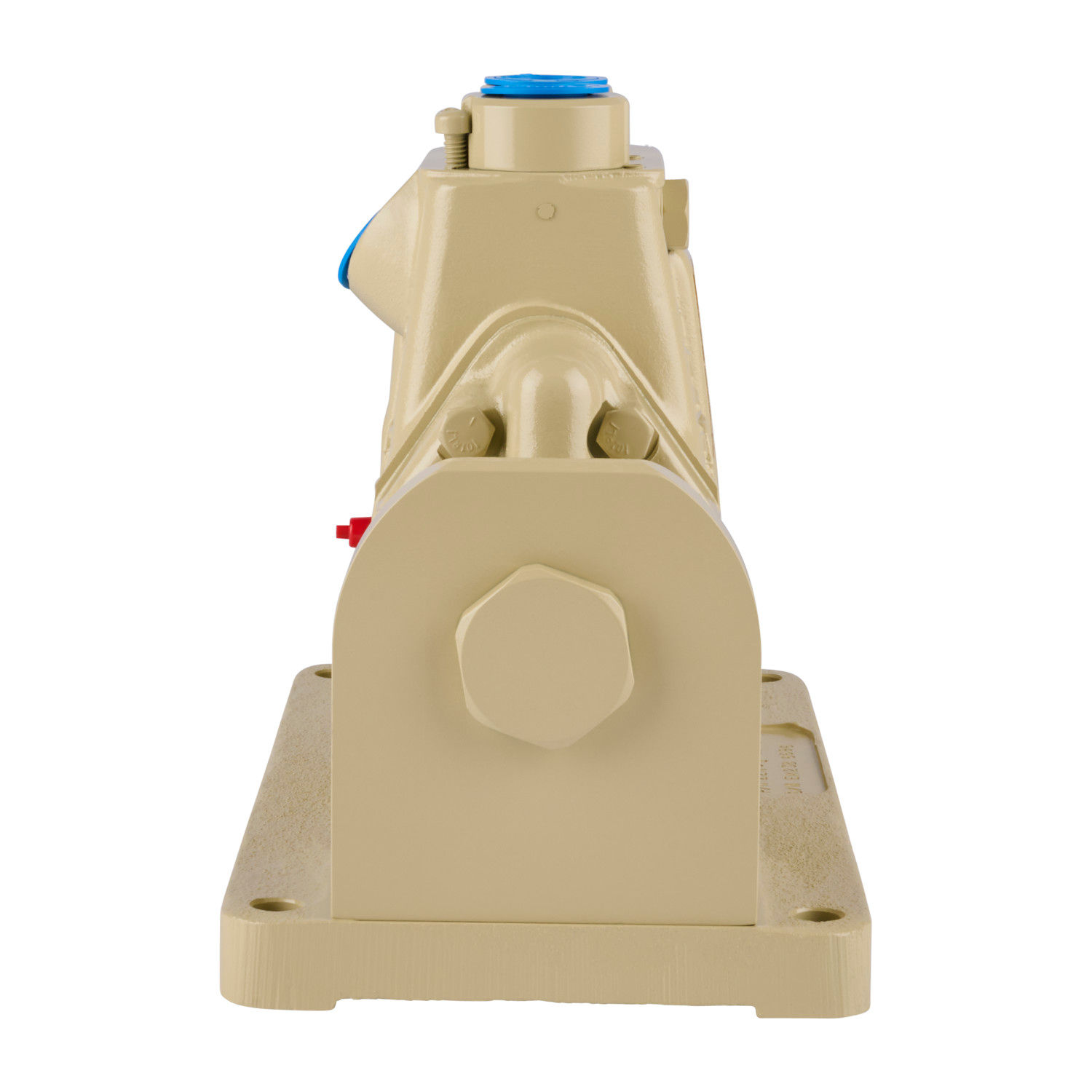

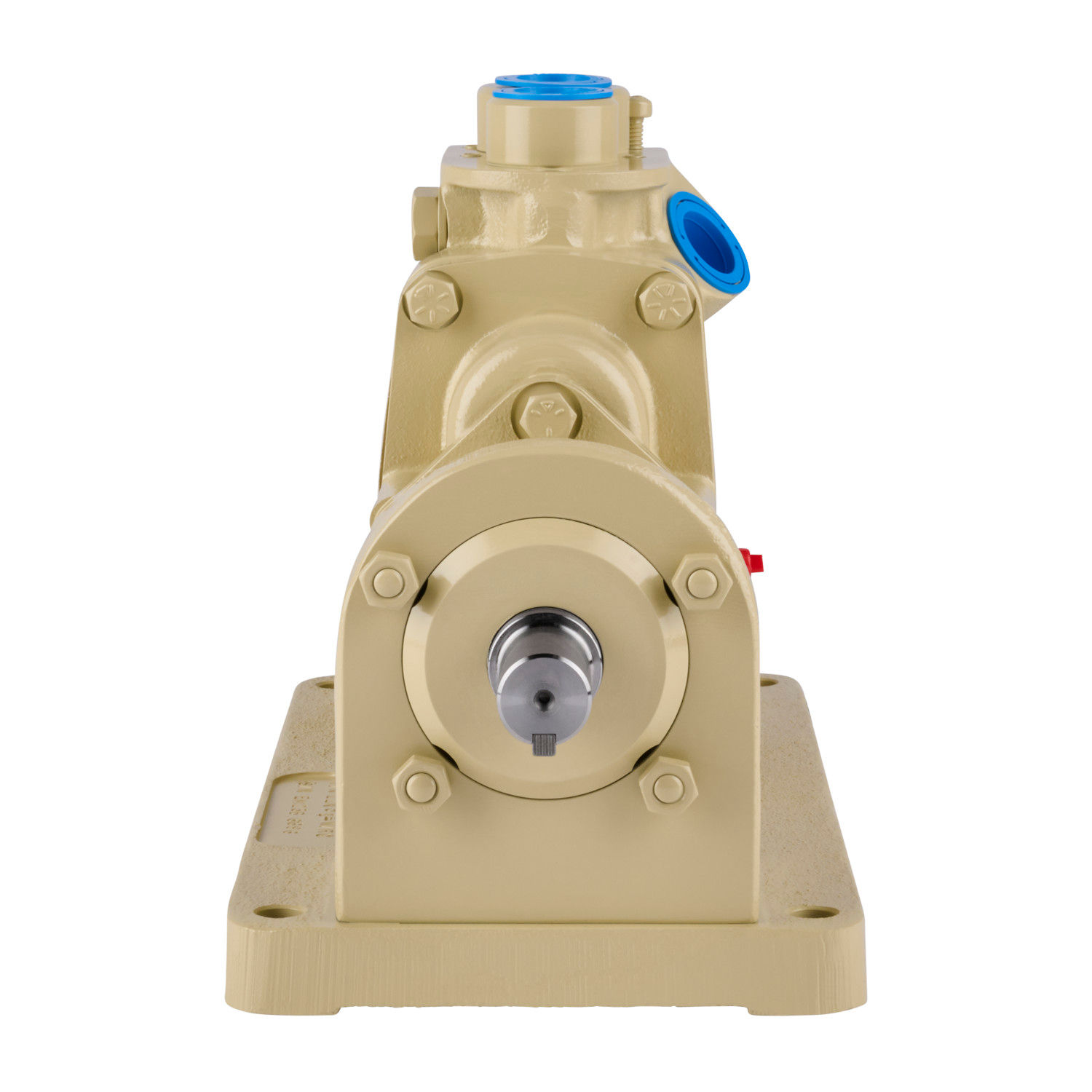

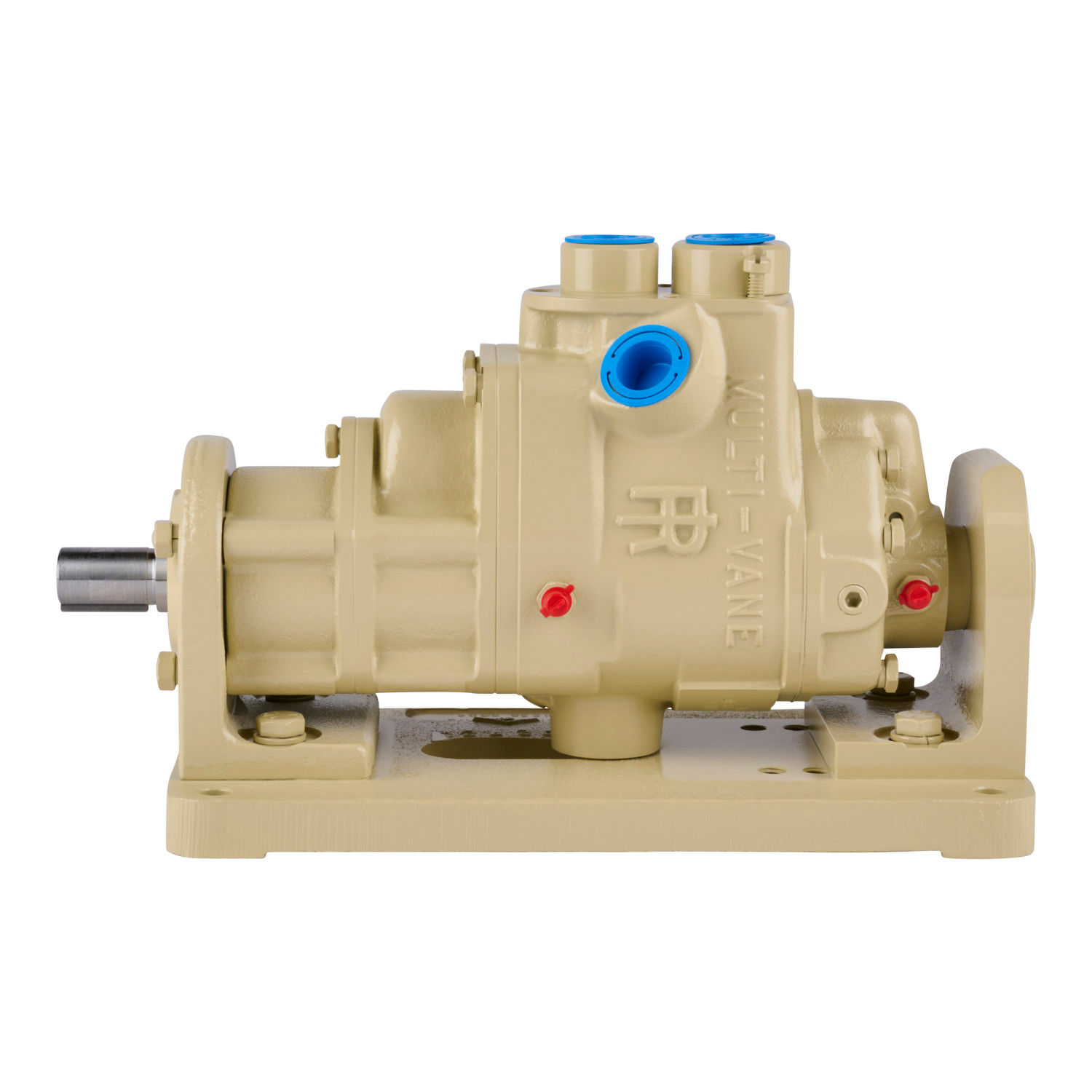

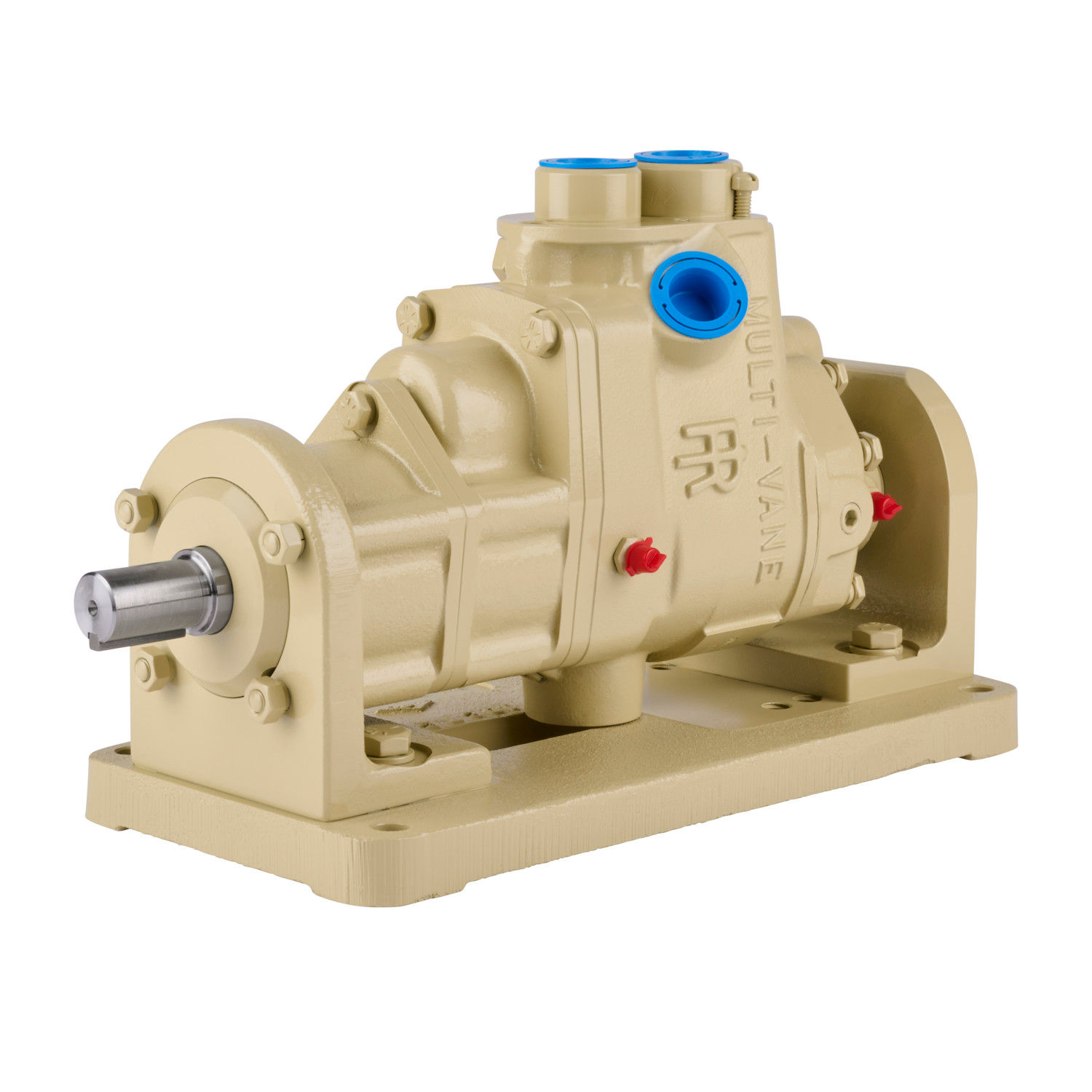

Ingersoll Rand 22N51-W/RC
1.75 Hp, 280 Rpm, Governed Multi Vane Air Motor
22N Series, Multi-vane Air Motor. 1.75 hp (1.31 Kw). 275 rpm with built in governor for maximum speed control. Torque adjustability through air controls.
- Governed motors for improved speed control
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 1/2" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 3/4" |
| Max Torque (ft-lb) | 66 |
| Max Torque (in-lb) | 792 |
| Max Torque (Nm) | 89.5 |
| Free Speed (RPM) | 280 |
| Drive Type | Round Keyed |
| Exhaust Direction | Side |
| Motor Type | Rotary Vane |
| Power (HP) | 1.75 |
| Weight (lbs) | 21 |
| Weight (kg) | 9.53 |
| Housing Material | Steel |
| MPN | 22N51-W/RC |
| Features & Benefits | |
| Able to withstand even the harshest conditions, this air motor has your back. | |
| Capable of sustaining variable speeds and torques, as well as instant starting and reversing without overheating | |
| Capable of sustaining variable speeds and torques | |
| as well as instant starting and reversing without overheating | |
