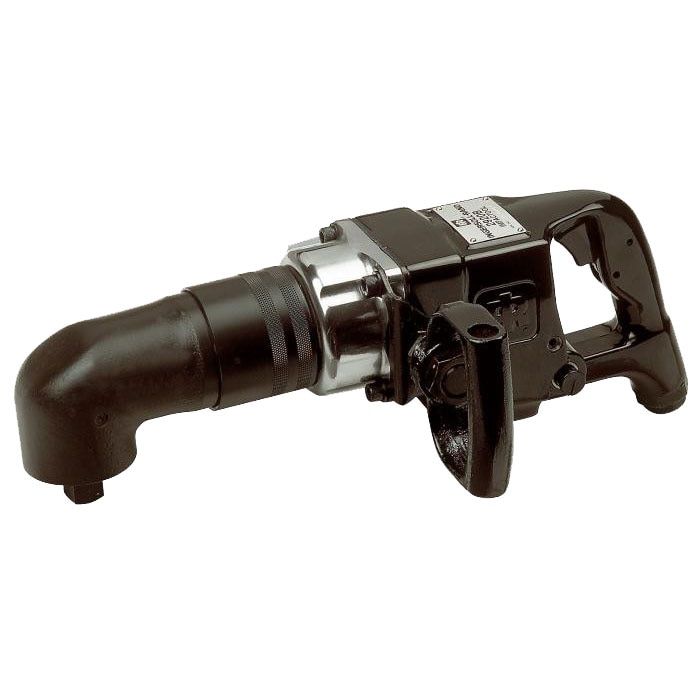

Ingersoll Rand2940A1
no. 5 spline Impactool, 1000 - 2000 ft lbs, 4000 rpm
The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.
$5,214.38List $8,100.00
Save $2,885.62Total$5,214.38Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
2940A1 | no. 5 spline Impactool, 1000 - 2000 ft lbs, 4000 rpm2940A1
Total$5,214.38
1
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand 2940A1
no. 5 spline Impactool, 1000 - 2000 ft lbs, 4000 rpm
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 94.8 / 105.8 |
| Vibration Level | 17.8 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 1/2" NPT |
| Min Hose Size | 3/4" |
| Air Pressure (PSI) | 90 |
| Drive Size | No. 5 |
| Max Torque (ft-lb) | 1601 |
| Max Torque (in-lb) | 19206 |
| Max Torque (Nm) | 2170 |
| Drive Type | Spline |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Non-Biased |
| Vibration Uncertainty | 3.4 |
| Weight (lbs) | 22 |
| Weight (kg) | 9.98 |
| Length (in) | 10.2 |
| Length (mm) | 259 |
| Width (in) | 22.1 |
| Width (mm) | 561 |
| Height (in) | 6.5 |
| Height (mm) | 165 |
| Housing Material | Aluminum |
| Color | Grey |
| Configuration | D-Handle |
| MPN | 2940A1 |
| Features & Benefits | |
| Withstand harsh conditions and drops | |
| Resistant to fluctuations in air pressures | |
| Ball Locking Mechanism | |
