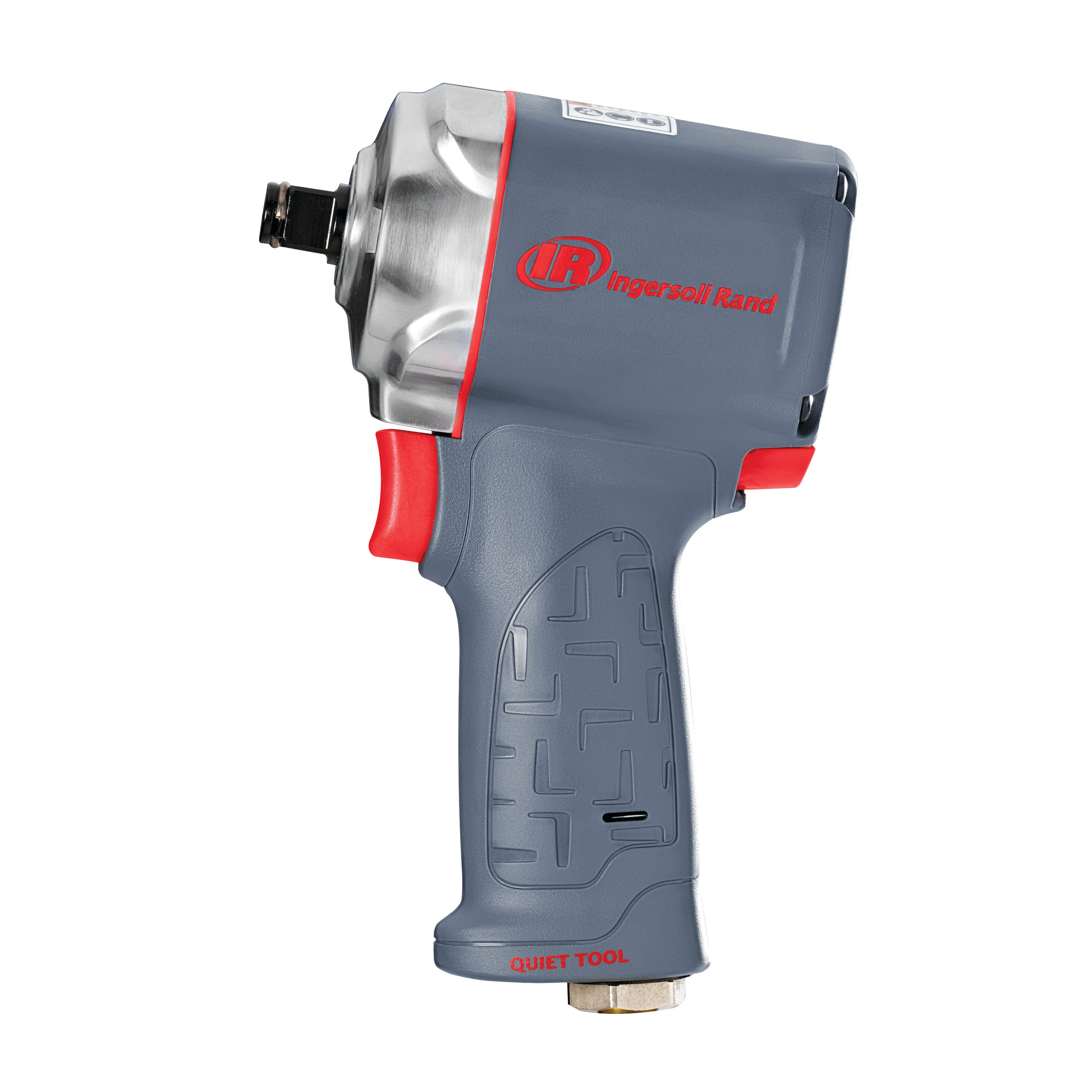

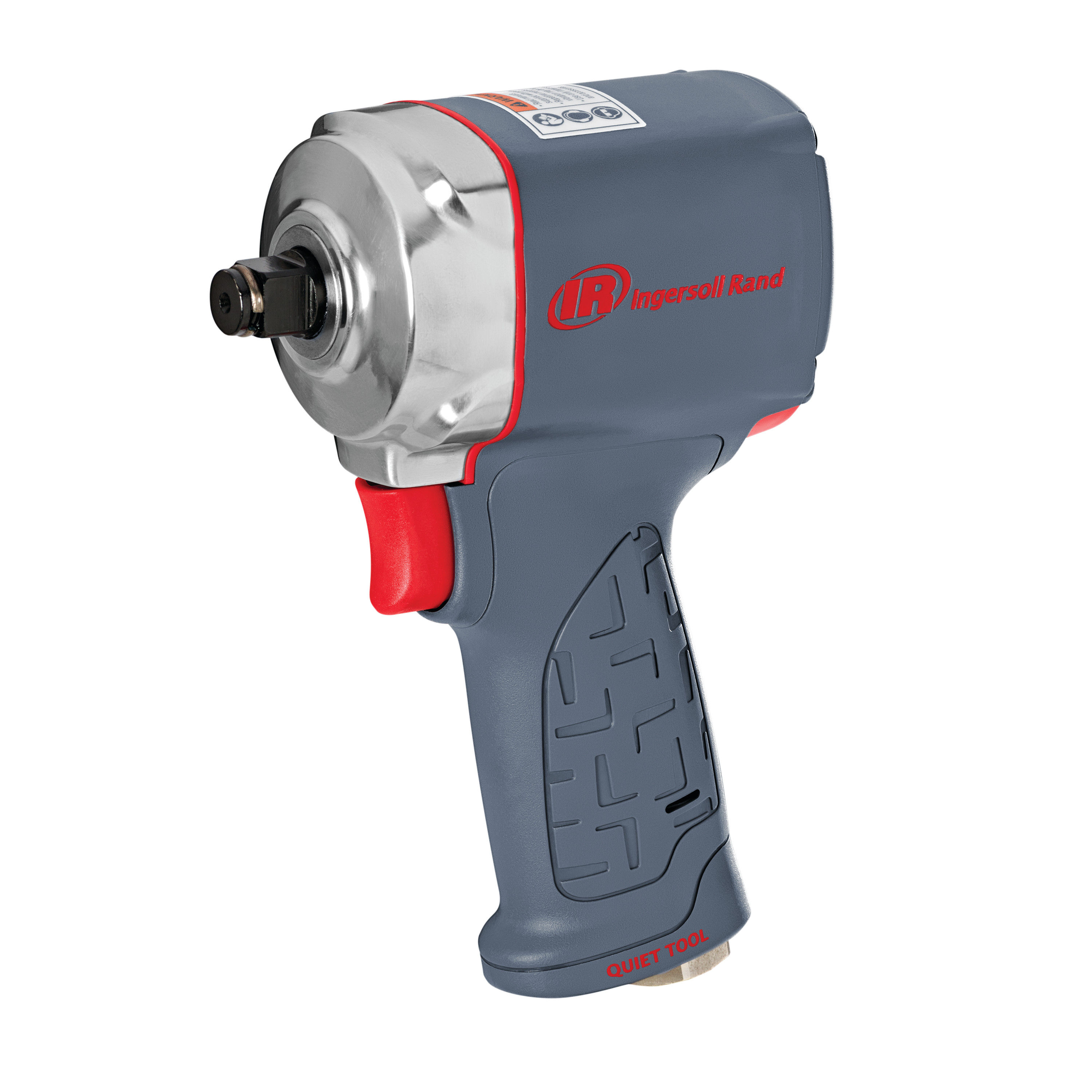

Ultra-Compact Quiet Impact Wrench, 640 ft lbs
Rigorously tested, beaten up, dropped, and pushed to the limits to make sure they last twice as long as the competition.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
Details
Product information
Overview

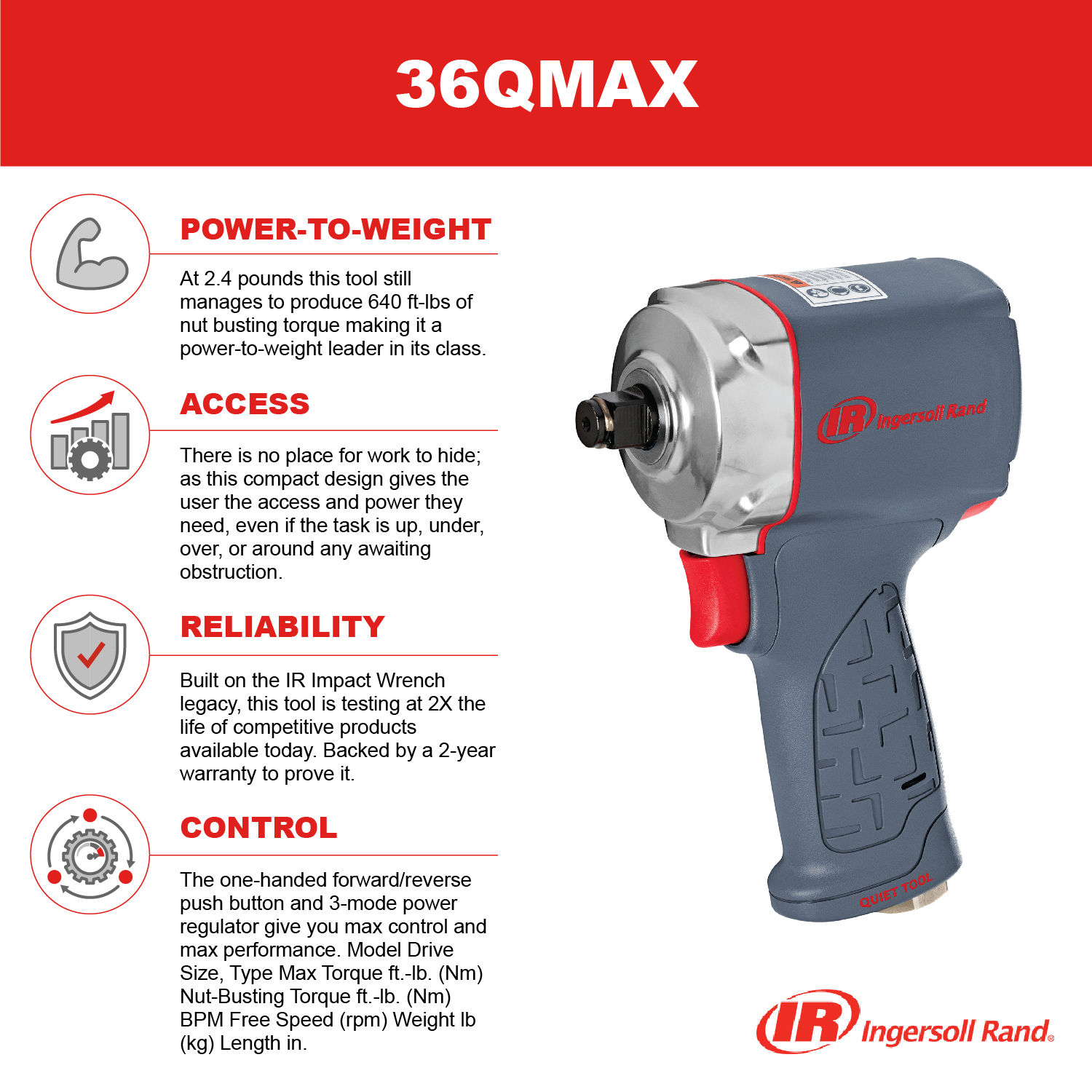

POWER-TO-WEIGHT: At 2.4 pounds this tool still manages to produce 640 ft-lbs of nut busting torque making it a power-to-weight leader in its class.
ACCESS: There is no place for work to hide; as this compact design gives the user the access and power they need, even if the task is up, under, over, or around any awaiting obstruction.
RELIABILITY: Built on the Ingersoll Rand Impact Wrench legacy, this tool is testing at 2X the life of competitive products available today. Backed by a 2-year warranty to prove it.
CONTROL: The one-handed forward/reverse push button and 3-mode power regulator give you max control and max performance.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 8.1 |
| Duty Rating | Maintenance Duty |
| Air Inlet Size | 1/2" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 19 |
| Avg Air Consumption | 24 |
| Retainer | Friction Ring |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 472 |
| Max Torque (in-lb) | 5664 |
| Max Torque (Nm) | 640 |
| Free Speed (RPM) | 8000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Breakaway Torque (ft-lb) | 640 |
| Breakaway Torque (Nm) | 868 |
| Weight (lbs) | 2.6 |
| Weight (kg) | 1.18 |
| Length (in) | 4.61 |
| Length (mm) | 117 |
| Width (in) | 2.36 |
| Width (mm) | 60 |
| Height (in) | 7.13 |
| Height (mm) | 181 |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 36QMAX |
| Features & Benefits | |
| 640 ft-lbs of nut-busting torque at just 2.4 lbs | |
| Power-to-weight leader in its class | |
| One-handed forward/reverse push button and 3-mode power regulator give you max control and max performance | |
| Rear Handle | |
| 640 ft-lbs of nut-busting torque at just 2.4 lbs,Power-to-weight leader in its class,One-handed forward/reverse push button and 3-mode power regulator give you max control and max performance,Rear Handle | |
