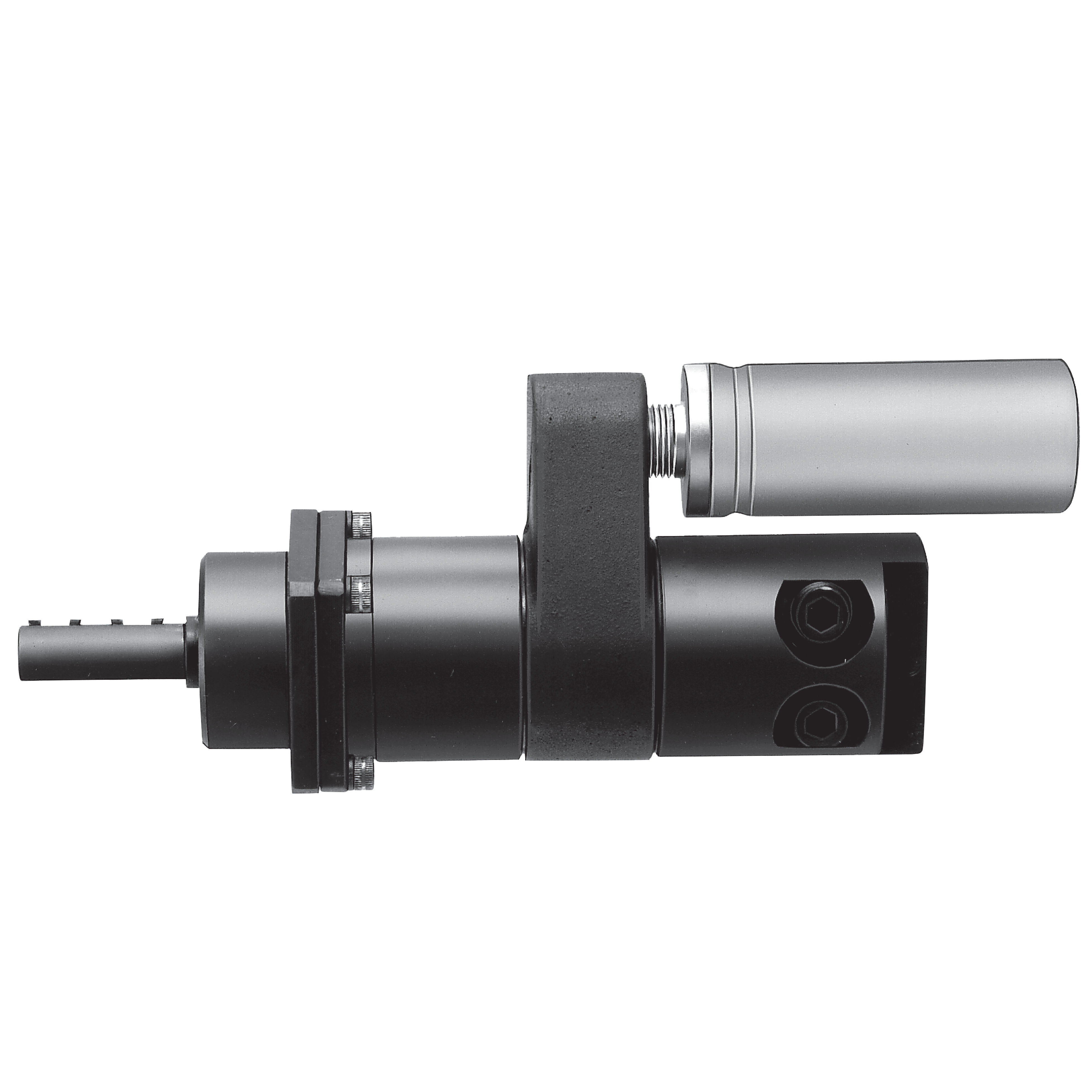

Ingersoll Rand7800-1B
Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall
The 2200-Series is easy to service with plenty of versitility. With a robust design to handle high torque or high speed applications, you’ll be able to complete your job with ease.
$1,775.81List $2,310.00
Save $534.19Total$1,775.81Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
7800-1B | Multi-Vane Air Motor, inline planetary gear, 0.85 hp, 1.4 Nm stall7800-1B
Total$1,775.81
1
Details
Product information
Overview
Ingersoll Rand 7800-1B
Power Motor
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 1/4" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 1 |
| Max Torque (in-lb) | 12 |
| Max Torque (Nm) | 1.4 |
| Free Speed (RPM) | 18000 |
| Drive Type | Round Keyed |
| Exhaust Direction | Exterior Muffler |
| Motor Type | Rotary Vane |
| Power (HP) | 0.85 |
| Weight (lbs) | 4.24 |
| Weight (kg) | 1.92 |
| Housing Material | Steel |
| MPN | 7800-1B |
| Features & Benefits | |
| Meets ATEX Standards | |
| The 2200-Series withstands the harsh demands required in production equipment. | |
| With variable speed and torque options, you’ll be able to adjust performance to fit your application. | |
| Meets ATEX Standards,The 2200-Series withstands the harsh demands required in production equipment. | |
