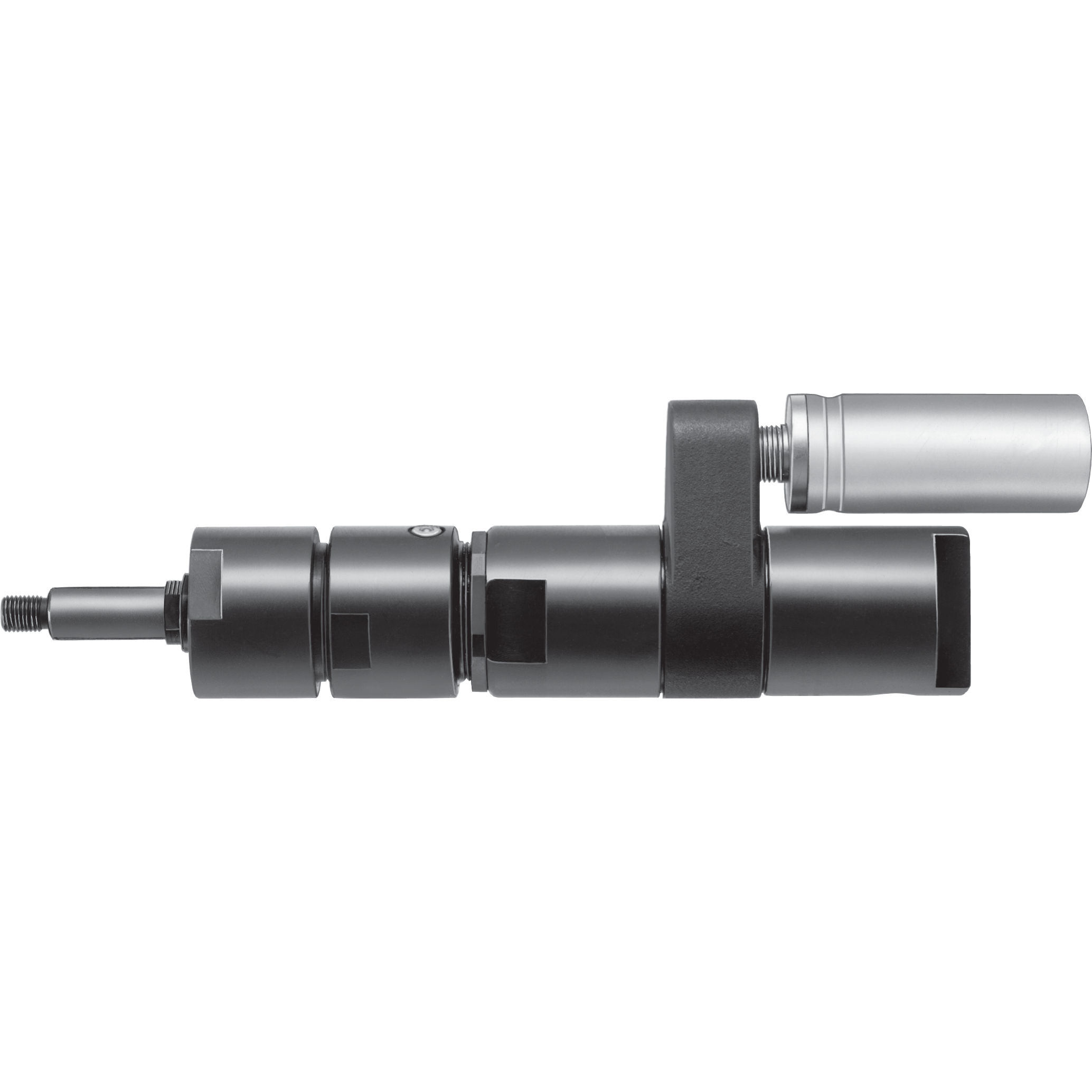

Ingersoll Rand7803-3B
Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall
The 2200-Series Milling Motors feature a robust design to handle variable speeds and torques as well as the ability to start and reverse instantly. It also has increased side loading capabilities.
$2,506.13List $3,260.00
Save $753.87Total$2,506.13Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
7803-3B | Multi-Vane Milling Motor, inline planetary gear, 0.85 hp, 21.9 Nm stall7803-3B
Total$2,506.13
1
Details
Product information
Overview
Ingersoll Rand 7803-3B
1200 Rpm, Power Motor, Straddle Mount
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 1/4" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 5/8" |
| Max Torque (ft-lb) | 16 |
| Max Torque (in-lb) | 194 |
| Max Torque (Nm) | 21.9 |
| Free Speed (RPM) | 1200 |
| Drive Type | Round Keyed, Threaded |
| Exhaust Direction | Exterior Muffler |
| Motor Type | Rotary Vane |
| Power (HP) | 0.85 |
| Collet Size | 7/16"-20 Thread |
| Weight (lbs) | 6.39 |
| Weight (kg) | 2.9 |
| Housing Material | Steel |
| MPN | 7803-3B |
| Features & Benefits | |
| Meets ATEX Standards | |
| The 2200-Series has your back, as it can withstand even the harshest of environments. Ideal for increased side loading applications such as milling and sawing. | |
| With the ability to repair your tools quickly, you’ll be able to spend more time working on the job. | |
| Meets ATEX Standards,The 2200-Series has your back, as it can withstand even the harshest of environments. Ideal for increased side loading applications such as milling and sawing. | |
