Features & Benefits
- Meets ATEX Standards
- The 2200-Series withstands the harsh demands required in production equipment.
- With variable speed and torque options, you’ll be able to adjust performance to fit your application.
Technical Information
Technical Specifications
Technical Specifications

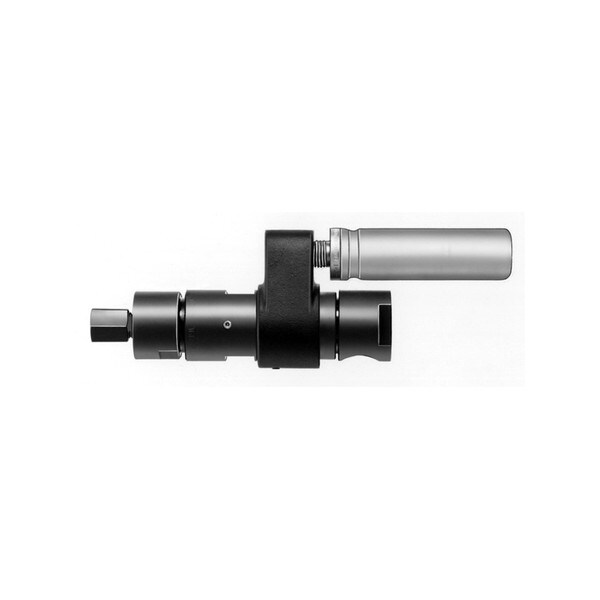

SKU: 7807-B-IR
Manufacturer Ingersoll Rand
Model 7807-B
Stock Code3
Free Speed (RPM) 3400
Gear Reduction Single
Max Free Speed (rpm) 3400
Rated Power (hp) 0.7
Reversible Yes
Series 2200
Spindle1/2'' keyed
Stall Torque (ft lb) 4
Stall Torque (Nm) 5.42
Type Multi-Vane Air Motor, inline planetary gear
Weight2.2 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
