Air Drill, Angle Head, 1/4 in. - 28 Female Thread, 500 rpm
Compact and light weight. This tool delivers more power in a smaller package to get the job done in less time. Production angle drills provide 360 degree angle head rotation for ideal tool, task, and user orientation.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFBrochuresOpen
- PDFWarrantyOpen
- PDFManualsOpen
- PDFIngersoll Rand QA Series Air Drill Product Information (PDF)Open
- PDFIngersoll Rand QA Series Air Drill Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Drill Safety Information (PDF)Open
- PDFIngersoll Rand QA Series Air Drill Maintenance Information (PDF)Open
Details
Product information
Overview

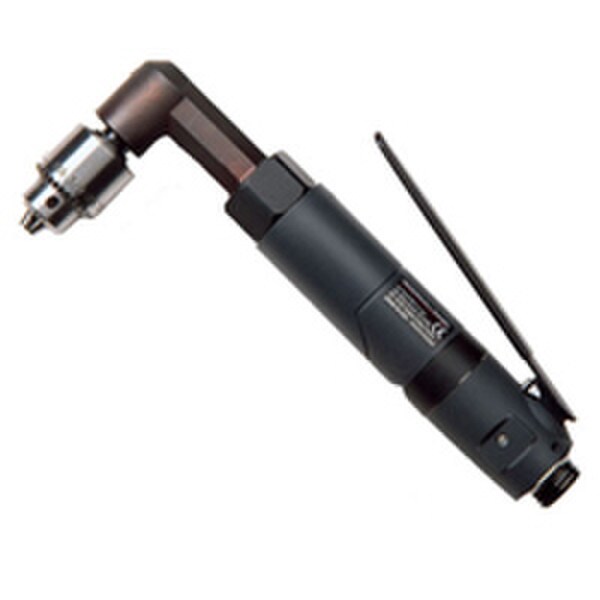

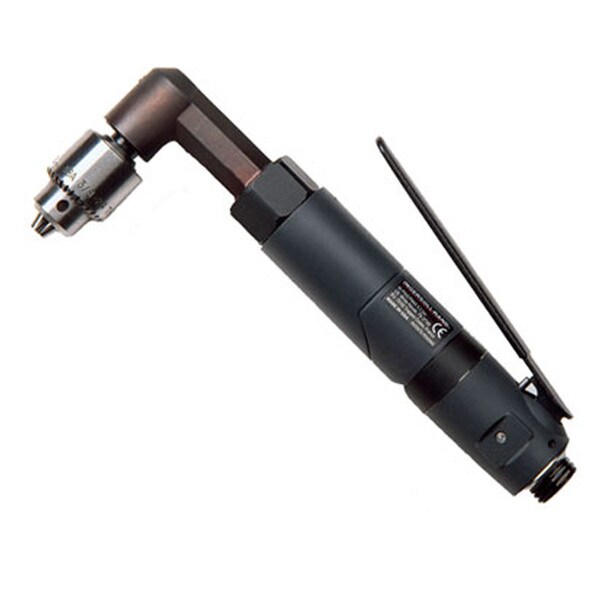

Ingersoll Rand Air Drill, Angle Head, 1/4 in. - 28 Female Thread, 500 rpm
Air Drill, Angle Head, 1/4 in. - 28 Female Thread, 500 rpm, model QA0559D by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
QA0559D by Ingersoll Rand
The QA0559D Air Drill has a in. chuck and can run up to 500 rpm
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 77 / 88 |
| Vibration Level | <2.5 |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 1/4" |
| Air Pressure (PSI) | 90 |
| Max Torque (ft-lb) | 9.2 |
| Max Torque (in-lb) | 110 |
| Max Torque (Nm) | 12.43 |
| Free Speed (RPM) | 500 |
| Collet Size | 1/4"-28 Thread |
| Weight (lbs) | 1.4 |
| Weight (kg) | 0.64 |
| Length (in) | 8.7 |
| Length (mm) | 221 |
| Configuration | Right Angle |
| MPN | QA0559D |
| Features & Benefits | |
| Ergonomically designed housing provides for a secure operator grip. | |
| Infinitely variable speed allows slow speed starting and high speed drilling | |
| Maximum TIR of .005'' ensures precision holes for critical applications | |
| Angle head may be rotated 360 degree to allow ideal orientation with the throttle | |
| Infinitely variable speed allows slow speed starting and high speed drilling,Maximum TIR of .005'' ensures precision holes for critical applications,Angle head may be rotated 360 degree to allow ideal orientation with the throttle | |
