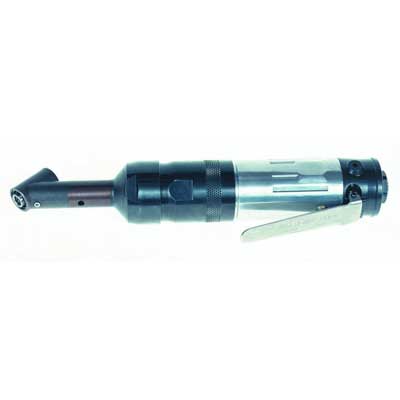

Ingersoll Rand5LL2A41
Air Drill, Angle Head, 1/4 in. chuck, 1500 rpm
The 5 Series Angle drills deliver results day after day. High quality, reliable and versatile, they’ll never let you down
$1,053.18List $1,636.00
Save $582.82Total$1,053.18Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFBrochuresOpen
- PDFWarrantyOpen
- PDFManualsOpen
- PDFIngersoll Rand 5L Series Air Drill Product Information (PDF)Open
- PDFIngersoll Rand Series 5 Air Drill Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Drill Safety Information (PDF)Open
- PDFIngersoll Rand Series 5 Air Drill Maintenance Information (PDF)Open
5LL2A41 | Air Drill, Angle Head, 1/4 in. chuck, 1500 rpm5LL2A41
Total$1,053.18
1
Details
Product information
Overview
Ingersoll Rand Air Drill, Angle Head, 1/4 in. chuck, 1500 rpm
Air Drill, Angle Head, 1/4 in. chuck, 1500 rpm, model 5LL2A41 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
5LL2A41 by Ingersoll Rand
The 5LL2A41 Air Drill has a 1/4 in. chuck and can run up to 1500 rpm
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 75 |
| Vibration Level | <2.5 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 1/4" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 15 |
| Max Torque (ft-lb) | 5 |
| Max Torque (in-lb) | 60 |
| Max Torque (Nm) | 6.78 |
| Free Speed (RPM) | 1500 |
| Exhaust Direction | Handle |
| Power (HP) | 0.4 |
| Collet Size | 3/8"-24 Thread |
| Chuck Type | Keyed Chuck |
| Weight (lbs) | 2.6 |
| Weight (kg) | 1.18 |
| Length (in) | 9.4 |
| Length (mm) | 239 |
| Housing Material | Aluminum |
| Handle Material | Aluminum |
| Configuration | Right Angle |
| MPN | 5LL2A41 |
| Features & Benefits | |
| Made with a high quality chuck | |
| Special small angle head for close quarter drilling | |
| Easily able to withstand harsh environments | |
| Optimized power-to-weight ratio | |
