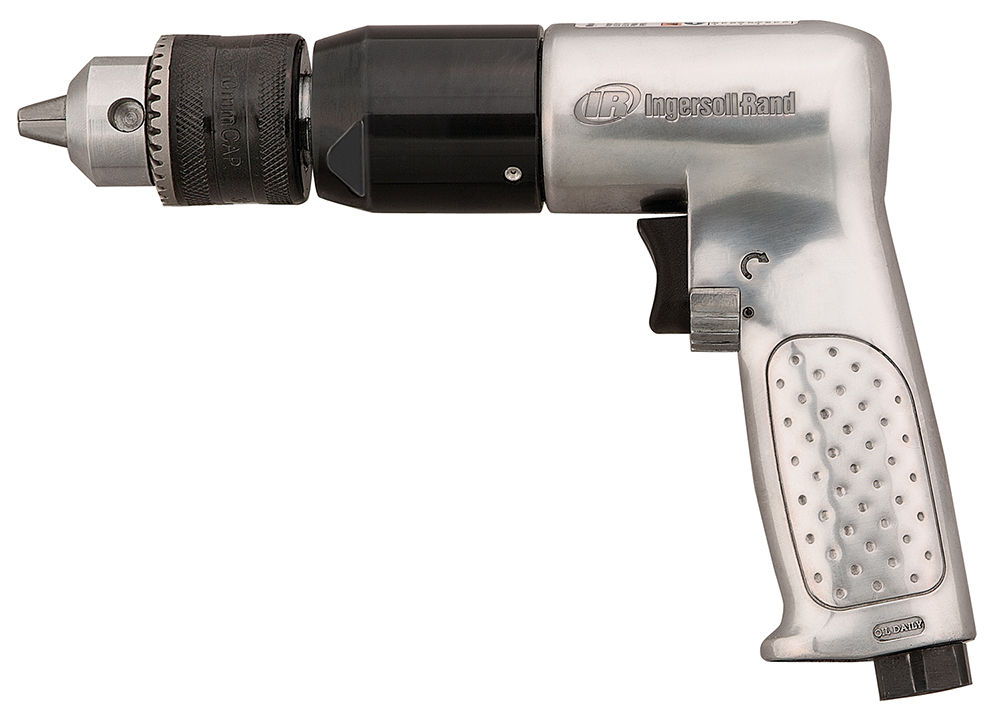

Ingersoll Rand7803RA
Air Drill, Pistol Grip, reversible, 1/2 in. chuck, 500 rpm
The 1/2'' Air Drill is a traditionally pistol shaped drill. With a feather trigger for variable speed options and a number of different configurations, this drill is as versatile as it is efficient.
$262.96List $495.00
Save $232.04Total$262.96Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
7803RA | Air Drill, Pistol Grip, reversible, 1/2 in. chuck, 500 rpm7803RA
Total$262.96
1
Details
Product information
Overview
Ingersoll Rand Air Drill, Pistol Grip, reversible, 1/2 in. chuck, 500 rpm
Air Drill, Pistol Grip, reversible, 1/2 in. chuck, 500 rpm, model 7803RA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
7803RA by Ingersoll Rand
The 7803RA Air Drill has a 1/2 in. chuck and can run up to 500 rpm
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 83 |
| Vibration Level | <2.5 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 27 |
| Avg Air Consumption | 4 |
| Max Torque (ft-lb) | 0.9 |
| Max Torque (in-lb) | 11 |
| Max Torque (Nm) | 1.2 |
| Free Speed (RPM) | 500 |
| Exhaust Direction | Handle |
| Power (HP) | 0.5 |
| Collet Size | 1/2"-24 Thread |
| Chuck Type | Keyed Chuck |
| Weight (lbs) | 3.3 |
| Weight (kg) | 1.5 |
| Length (in) | 8.7 |
| Length (mm) | 221 |
| Width (in) | 7.09 |
| Width (mm) | 180 |
| Height (in) | 6 |
| Height (mm) | 152 |
| Housing Material | Aluminum |
| Color | Silver |
| Handle Material | Aluminum |
| Configuration | Pistol Grip |
| MPN | 7803RA |

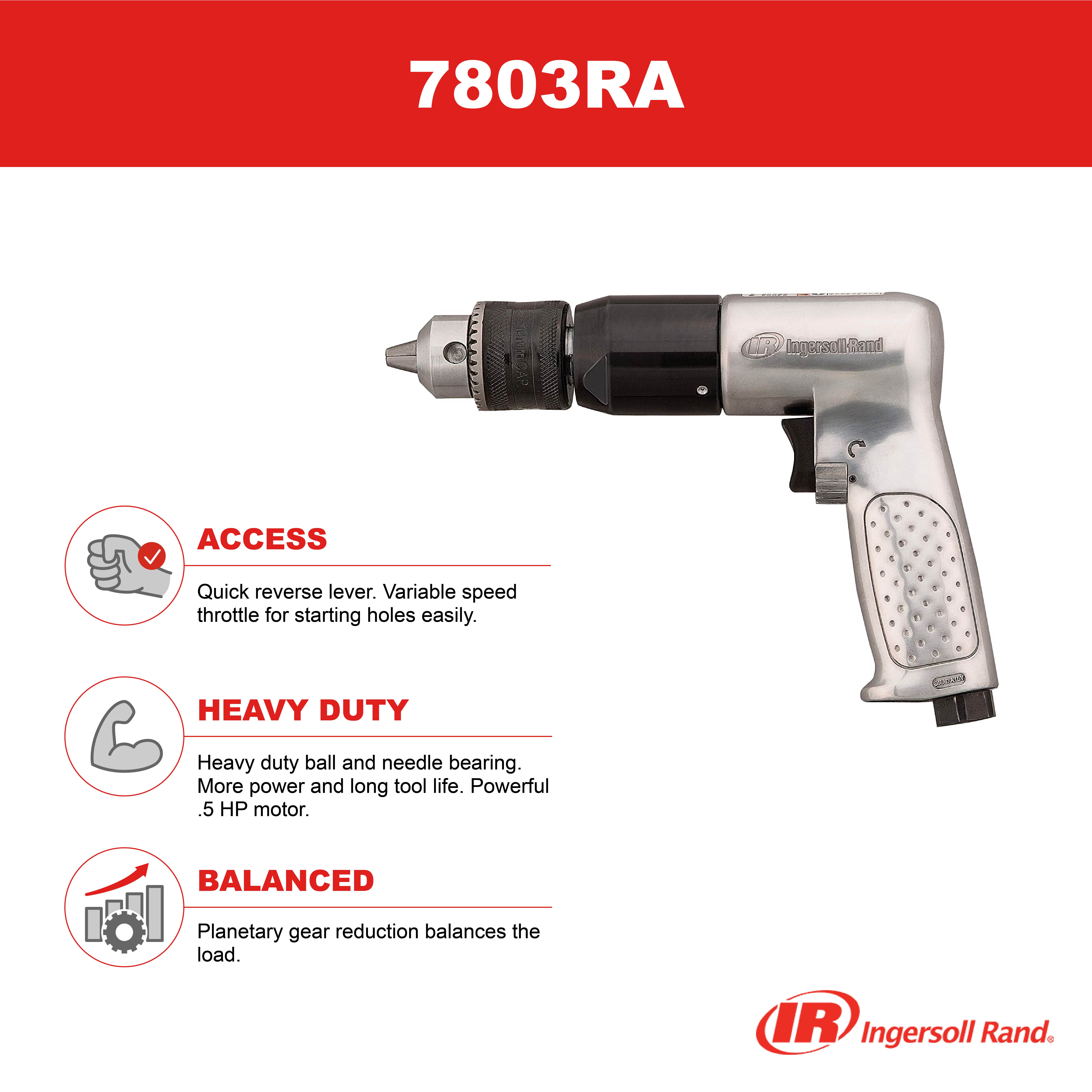

| Features & Benefits | |
| Sturdy aluminum housing | |
| Variable speed throttle | |
