Ingersoll RandFA2.5A-20xx
Air Winch, 4100 lb capacity, 141 fpm, 625 ft. Rope length
FA2.5A-20xx | Air Winch, 4100 lb capacity, 141 fpm, 625 ft. Rope length
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
FA2.5A-20xx | Air Winch, 4100 lb capacity, 141 fpm, 625 ft. Rope lengthFA2.5A-20xx
Price on request
Details
Product information
Overview

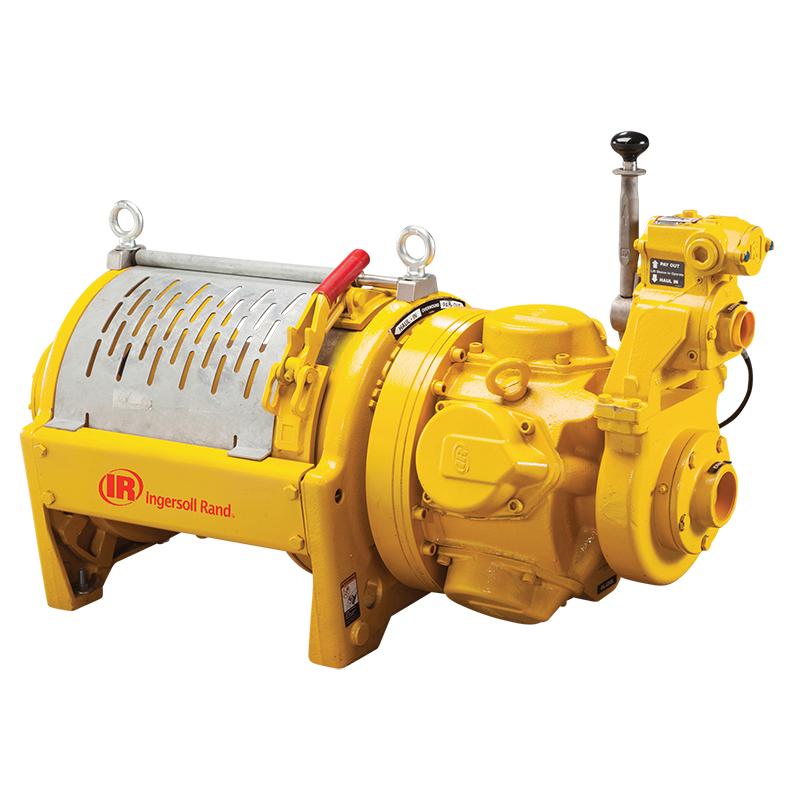

Ingersoll Rand Air Winch, 4100 lb capacity, 141 fpm, 625 ft. Rope length
FA2.5A-20xx
The Ingersoll Rand Third Generation FA2.5A winch is a mid range workhorse. It comes with the premium components that make a diff erence, like a self-cleaning control valve and a powerful radial piston air motor. It packages them into a rugged, yet cost eff ective winch.
Features:
- Durability
- Rugged cast steel construction with 5:1 design factor delivers long-life
- Minimum 18:1 drum diameter to wire rope diameter increases rope life
- Safety
- Lift-to-Shift variable speed lever provides precise control and built-in safety
- Gearbox-in-drum design reduces size and helps the winch ?t in compact applications
- Performance
- Powerful radial piston air motor provides reliable power and adjustable speed for any use
- Self-cleaning control valve improves ?ow and performance
- Standard drum brake or optional auto disc brake provides superior stopping power
| Technical Specifications | |
|---|---|
| Application | Onshore, Offshore, Marine |
| SPEED (FT/MIN) | 141 |
| Type | Air Winch |
| Manufacturer | Ingersoll Rand |
| SKU | FA2.5A-20xx |
| Weight (lbs) | 818 |
| Rope Length | 625 ft. |
| Rope Diameter | 5/8 in. |
| Series | Third Generation FA2.5A Air Winches |
| Capacity (lbs) | 4100 |
| MPN | FA2.5A-20xx |
