Angle Air Nutrunner, 7.4 - 14.8 ft lbs, 3/8 in. square
Angle Air Nutrunner with adjustable shut off clutch.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFManualsOpen
- PDFProductInfoOpen
- PDFPartInfoOpen
- PDFMaintenanceInfoOpen
- PDFIngersoll Rand QA4 Series Air Nutrunner Product Information (PDF)Open
- PDFIngersoll Rand QA4 Series Air Nutrunner Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Angle Wrench Screwdriver Nutrunner Safety Information (PDF)Open
- PDFIngersoll Rand QA4 Series Air Nutrunner Maintenance Information (PDF)Open
Details
Product information
Overview

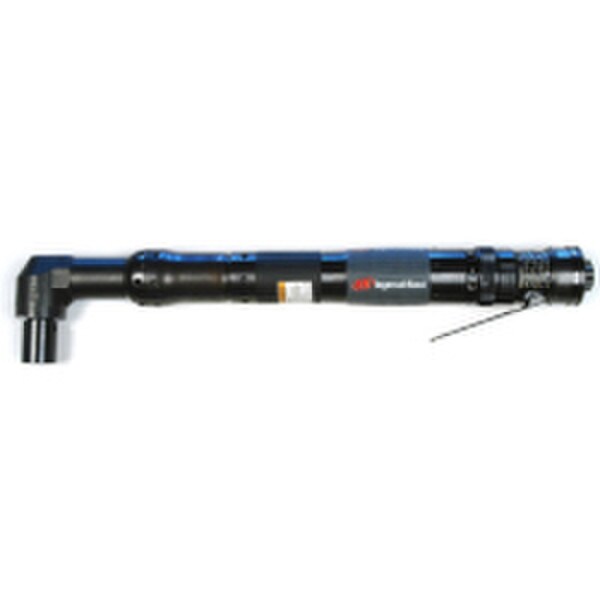

Ingersoll Rand Angle Air Nutrunner, 7.4 - 14.8 ft lbs, 3/8 in. square
Angle Air Nutrunner, 7.4 - 14.8 ft lbs, 3/8 in. square, model QA4AALS020NP25S06 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Angle Air Nutrunner available elsewhere for a lower price? Contact Customer Service about price matching!
QA4AALS020NP25S06 by Ingersoll Rand
14.8 ft lbs of max torque, truly defines the power of the Ingersoll Rand QA4AALS020NP25S06 Angle Air Nutrunner. This Angle Air Nutrunner can reach up to 625 rpm and has an Adjustable Shut Off clutch. This Ingersoll Rand Angle Air Nutrunner utilizes a 3/8 in. square spindle. Adjustable Shut Off clutch, Lever Start, 625 rpm, 14.8 ft lbs, the QA4AALS020NP25S06 is a unique Angle Air Nutrunner that you need in your shop
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 79.3 |
| Vibration Level | < 2.5 |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Drive Size | 3/8" |
| Max Torque (ft-lb) | 15 |
| Max Torque (in-lb) | 186 |
| Max Torque (Nm) | 21.01 |
| Free Speed (RPM) | 625 |
| Drive Type | Square |
| Weight (lbs) | 3.17 |
| Weight (kg) | 1.44 |
| Length (in) | 15.6 |
| Length (mm) | 396 |
| Housing Material | Steel |
| Configuration | Right Angle |
| MPN | QA4AALS020NP25S06 |
| Features & Benefits | |
| Lever Start | |
| Made for maximum flexibility | |
| Specially designed for easy upkeep | |
