Ingersoll RandW4A1
Chipping Hammer, 1480 bpm, 0.58 Hex shank, 4 in. stroke
$831.19List $1,430.00
Save $598.81Total$831.19Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFManualsOpen
- PDFIngersoll Rand Series A and W Air Hammer Product Information (PDF)Open
- PDFIngersoll Rand Series A and W Air Hammer Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Percussive Tool Safety Information (PDF)Open
- PDFIngersoll Rand Series A and W Air Hammer Maintenance Information (PDF)Open
W4A1 | Chipping Hammer, 1480 bpm, 0.58 Hex shank, 4 in. strokeW4A1
Total$831.19
1
Details
Product information
Overview

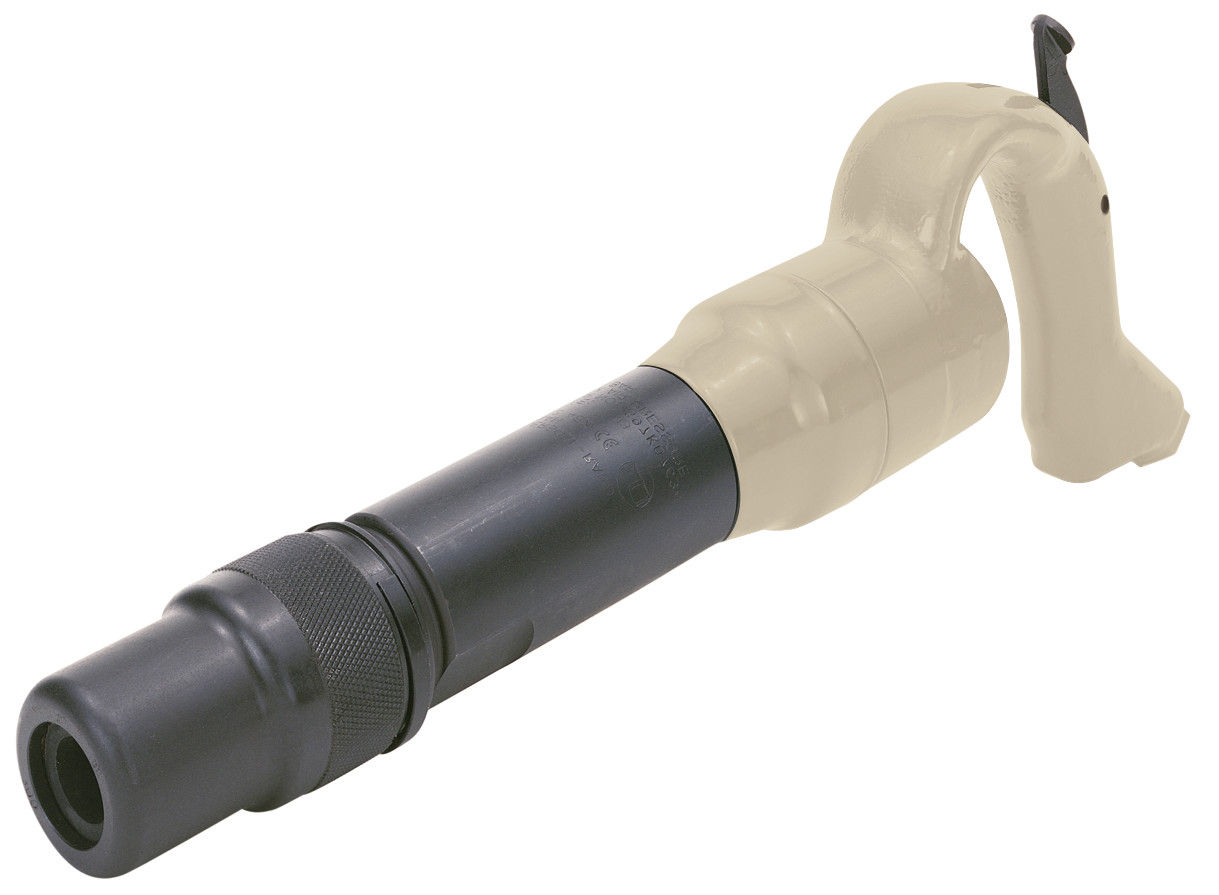

Ingersoll Rand Chipping Hammer, 1480 bpm, 0.58 Hex shank, 4 in. stroke
Chipping Hammer, 1480 bpm, 0.58 Hex shank, 4 in. stroke, model W4A1 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chipping Hammer available elsewhere for a lower price? Contact Customer Service about price matching!
W4A1 by Ingersoll Rand
At 1480 blows per minute, the W7150 Chipping Hammer has a 1.13 in. Bore and 4 in. stroke.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 112.9 / 123.9 |
| Vibration Level | 18.5 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 29 |
| Retainer | Threaded barrel with rubber buffered |
| Exhaust Direction | Side - Adjustable |
| Vibration Uncertainty | 5.9 |
| Weight (lbs) | 17.5 |
| Weight (kg) | 7.94 |
| Length (in) | 19.25 |
| Length (mm) | 489 |
| Housing Material | Aluminum |
| Color | Beige |
| Configuration | Swan Neck |
| MPN | W4A1 |
