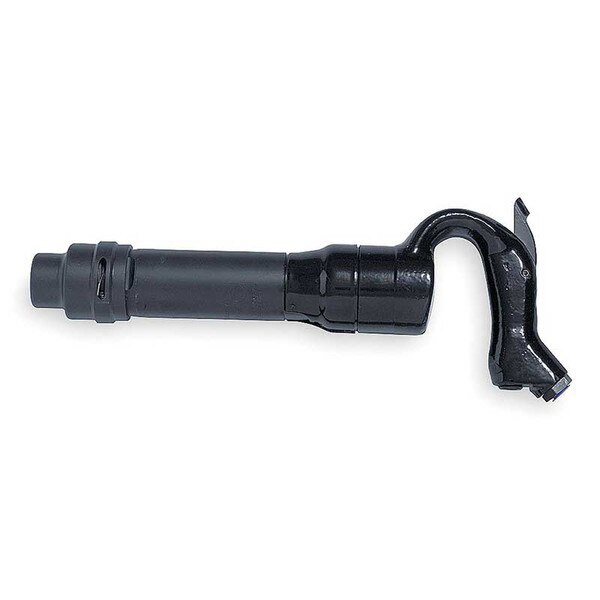

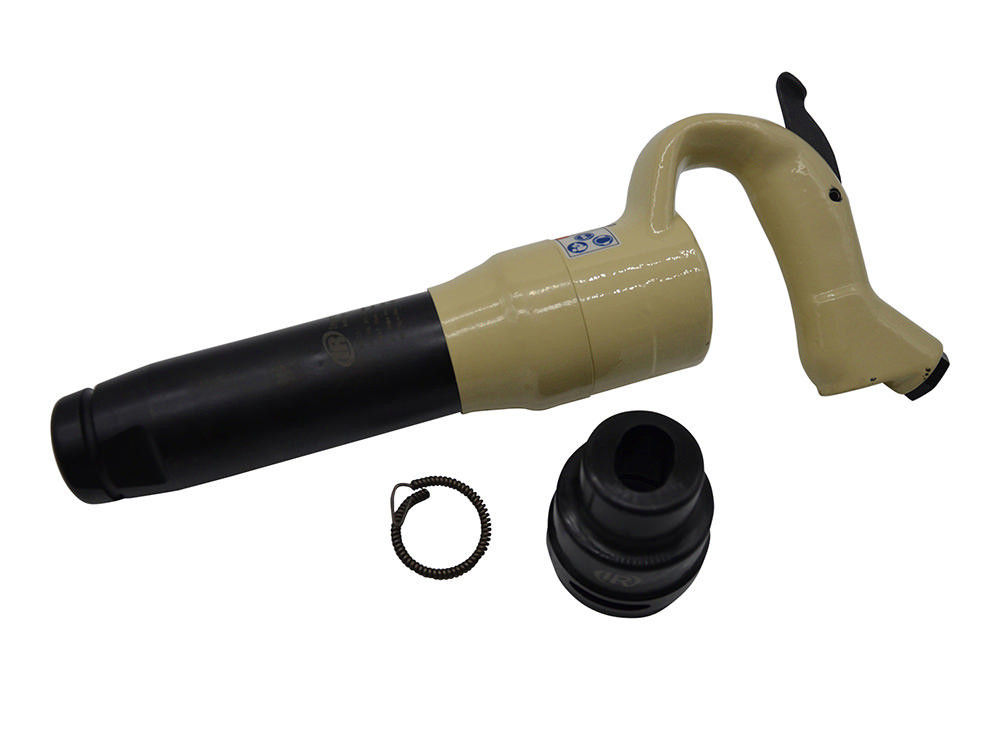

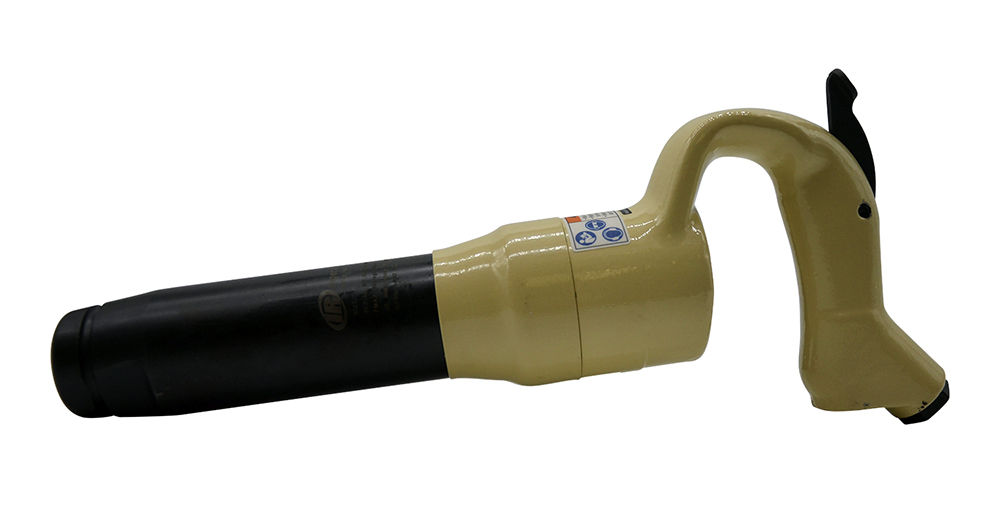

Ingersoll Rand3A2SA
Chipping Hammer, 1725 bpm, 0.68 Round shank, 3 in. stroke
$592.88List $1,020.00
Save $427.12Total$592.88Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFBrochuresOpen
- PDFWarrantyOpen
- PDFInfographicsOpen
- PDFManualsOpen
- PDFIngersoll Rand Series A and W Air Hammer Product Information (PDF)Open
- PDFIngersoll Rand Series A and W Air Hammer Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Percussive Tool Safety Information (PDF)Open
- PDFIngersoll Rand Series A and W Air Hammer Maintenance Information (PDF)Open
- PDFIngersoll Rand A and W Series Chipping Hammers Parts Information (PDF)Open
3A2SA | Chipping Hammer, 1725 bpm, 0.68 Round shank, 3 in. stroke3A2SA
Total$592.88
1
Details
Product information
Overview
Ingersoll Rand Chipping Hammer, 1725 bpm, 0.68 Round shank, 3 in. stroke
Chipping Hammer, 1725 bpm, 0.68 Round shank, 3 in. stroke, model 3A2SA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chipping Hammer available elsewhere for a lower price? Contact Customer Service about price matching!
3A2SA by Ingersoll Rand
At 1725 blows per minute, the G1811-K2 Chipping Hammer has a 1-1/8 in. Bore and 3 in. stroke.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 112.2 / 123.2 |
| Vibration Level | 17.7 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 29 |
| Retainer | Lock-spring (Plain Arrow) |
| Vibration Uncertainty | 5.3 |
| Weight (lbs) | 15.63 |
| Weight (kg) | 7.09 |
| Length (in) | 17.88 |
| Length (mm) | 454 |
| Width (in) | 9 |
| Width (mm) | 229 |
| Housing Material | Steel |
| Color | Beige |
| Configuration | Swan Neck |
| MPN | 3A2SA |
