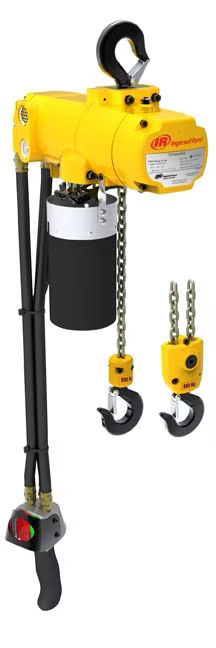

CLK Series Air Hoist
The CLK Series Air Chain Hoist has been designed and engineered for production applications for loads up to 1,100 lbs. The CLK Series hoist are duty-rated to go 800 full-load hours between overhauls.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Details
Product information
Overview
- Disc brake is non-asbestos and spring-engaged with an air release that offers significant control while minimizing air consumption.
- A two-stage differential transmission multiplies motor torque and reduces speed. Oil lubrication helps create maximum durability. Gearing components are made from high-strength, heat-treated steel alloy.
- Forged five-pocket pocket wheel provides for Specially designed slack chain opening
- Specially designed slack chain opening prevents dangerous cross-linking by guiding chain to the drive wheels.
- Upper and lower limit stops prevent dangerous over-travel of the hook in either direction, reducing possible damage to hoist and load.
- 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
- Double reeving is used on 500-kilogram units only.
- Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.
- Patent-pending fixed OR swivel-top hook creates unrivaled versatility. Unit is shipped with hook in swivel mode but can be easily converted to fixed position with 90-degree increments. Meets OSHA requirements.
- High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
- Internal muffler reduces sound levels to a best-in-the-industry 75 dBA.
- Optional fabric chain container (available at extra cost) helps keep slack chain out of the way.
- Full flow pendent for maximum control and enhanced load positioning capabilities.
- Ergonomic pendent handle (shown with optional E-stop) is rugged and durable. Guard covers both levers and can be used with or without gloves. Optional E-stop (available at extra cost) makes this hoist CE-compliant.
| Features & Benefits | |
|---|---|
| Weight Capacity: Up to 1100 Lb (500 Kg) | |
| Lifting Speed: Up to 56 Ft/Min (17.1 M/Min) | |
| From $5,452 up to $6,873 |
