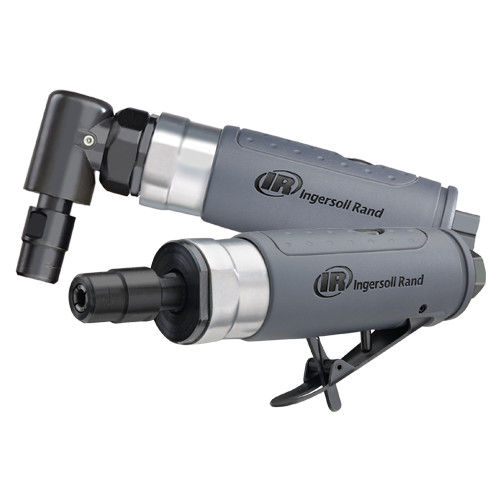

Ingersoll Rand302B
Die Grinder, 1/4 in. and 6 mm, 20000 rpm
If you are looking for powerful performance, the 30B Die Grinders are your best bet.
$130.15List $245.00
Save $114.85Total$130.15Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFBrochuresOpen
- PDFWarrantyOpen
- JPGInfographicsOpen
- TIFFEnvironmentOpen
- PDFIngersoll Rand 300 Series Air Die Grinder Product Information (PDF)Open
- PDFIngersoll Rand 302B 308B Air Die Grinder Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Die Grinder Safety Information (PDF)Open
- PDFIngersoll Rand 300 Series Die Grinders Brochure (PDF)Open
302B | Die Grinder, 1/4 in. and 6 mm, 20000 rpm302B
Total$130.15
1
Details
Product information
Overview
Ingersoll Rand Die Grinder, 1/4 in. and 6 mm, 20000 rpm
Die Grinder, 1/4 in. and 6 mm, 20000 rpm, model 302B by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Die Grinder available elsewhere for a lower price? Contact Customer Service about price matching!
302B by Ingersoll Rand

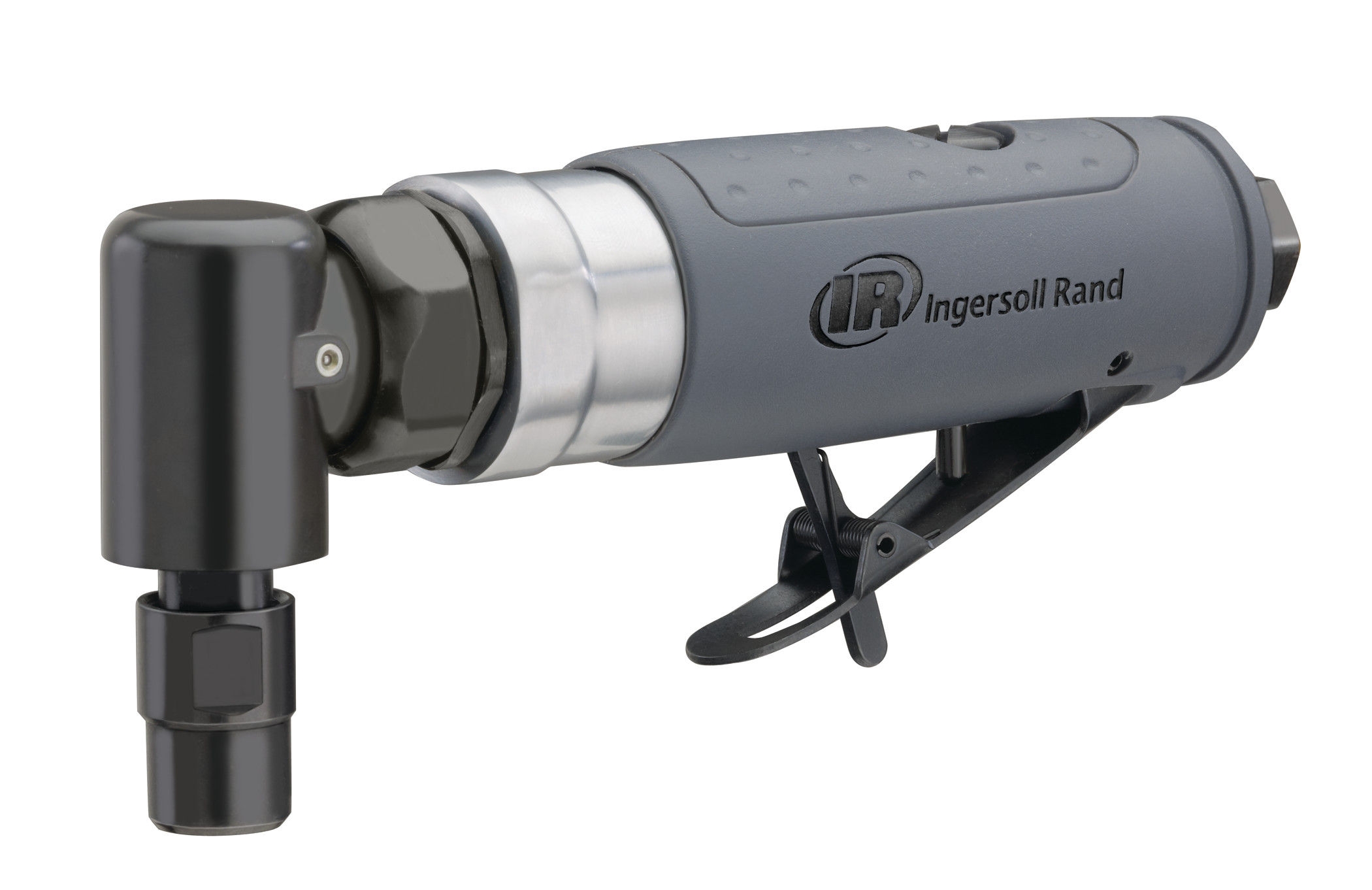

The 302B Angle Head Air Grinder has a free speed of 20000 rpm. The output on this Die Grinder is 1/4 in. and 6 mm
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 90.0 / 101.0 |
| Vibration Level | 5.5 |
| Duty Rating | Medium Duty |
| Air Inlet Size | 1/4" NPT |
| Min Hose Size | 3/8" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 23 |
| Avg Air Consumption | 6 |
| Free Speed (RPM) | 20000 |
| Exhaust Direction | Rear |
| Vibration Uncertainty | 1.5 |
| Power (HP) | 0.33 |
| Collet Size | 1/4" |
| Weight (lbs) | 1.28 |
| Weight (kg) | 0.58 |
| Length (in) | 6.93 |
| Length (mm) | 176 |
| Width (in) | 3.74 |
| Width (mm) | 95 |
| Height (in) | 2.36 |
| Height (mm) | 60 |
| Housing Material | Aluminum |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Right Angle |
| MPN | 302B |
| Features & Benefits | |
| Right Angle Die Grinder | |
| Compatible with piped away exhaust kits | |
| lightweight, contoured design | |
| lightweight | |
| contoured design | |
