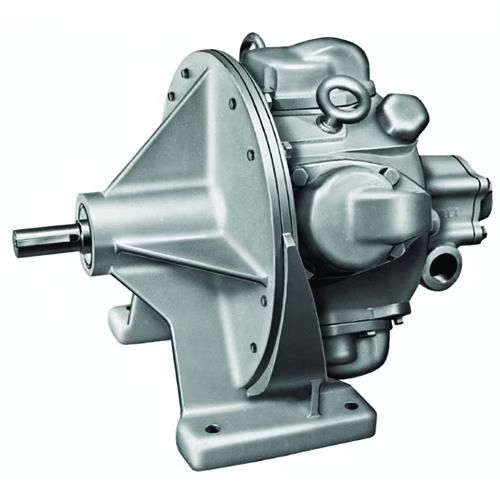

Ingersoll RandEE53G
Piston Air Motor, geared, radial, 6.8 hp, 278 Nm stall, reversible
Direct and geared drive piston Motors for improved air consumption, this motor is a workhorse in any industrial environment. Features a radial piston design excellent for winch and hoist type applications.
$31,494.91List $49,162.80
Save $17,667.89Total$31,494.91Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
EE53G | Piston Air Motor, geared, radial, 6.8 hp, 278 Nm stall, reversibleEE53G
Total$31,494.91
1
Details
Product information
Overview
Ingersoll Rand EE53G
Radial Piston Air Motors - 305 Rpm At Max Power
Features
- Piston motors are ideally suited for applications where there is a lot of resistance and variability such as winch and high capacity hoist.
- Gear reduction models available on the EE series.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Technical Specifications | |
|---|---|
| Model | EE53G |
| Type | Piston Air Motor, geared, radial |
| Manufacturer | Ingersoll Rand |
| Motor Type | Direct Drive |
| Free Speed (RPM) | 600 |
| SKU | EE53G |
| Stock Code | 3 |
| Max Free Speed (rpm) | 600 |
| Weight (lbs) | 220 |
| Starting Torque (ft lb) | 154 |
| Air Cons. @ Max Power (scfm) | 220 |
| Speed at Max Power (rpm) | 305 |
| Stall Torque (ft lb) | 205 |
| Series | EE |
| Max Power (kw) | 5.07 |
| Rated Power (hp) | 6.8 |
| Stall Torque (Nm) | 277.94 |
| Reversible | Yes |
| MPN | EE53G |
| Features & Benefits | |
| Stands up to the harshest conditions with ease. | |
| Can handle variable speeds and torques, as well as instant starting and stopping, without overheating. | |
