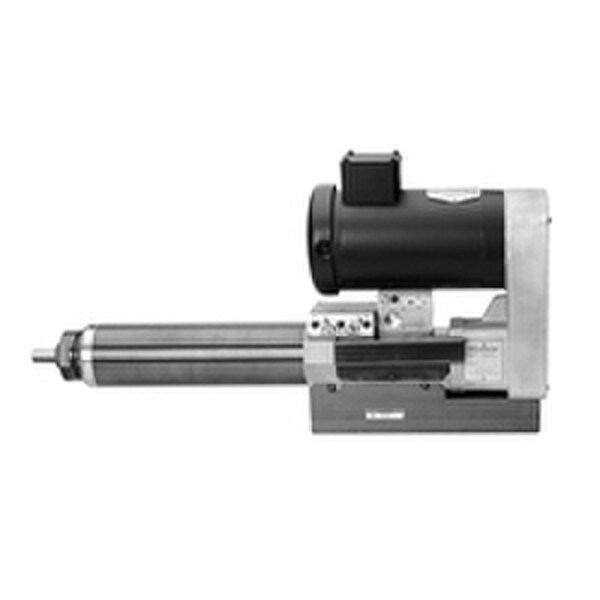

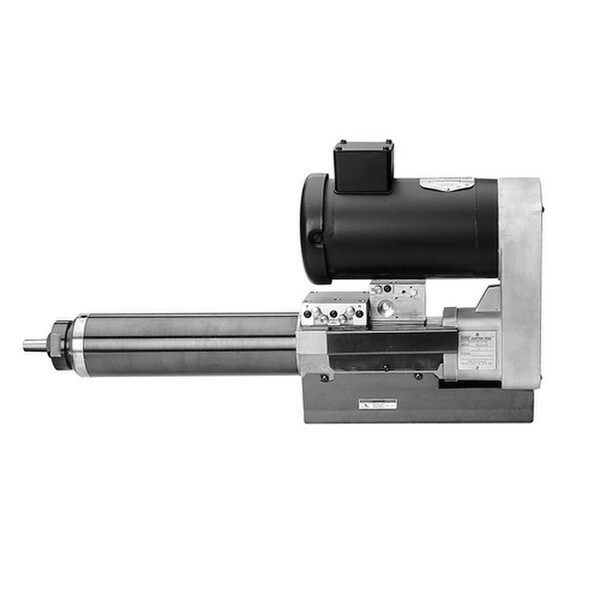

Electric Self Feed Drills

Ingersoll Rand electric self feed drills automate secondary machining simply and economically, with FE034A, FE054C and FE074B families across a wide range of spindle speeds.

Models and pricing below

Documents1 file

PDFIngersoll Rand Automatic Machining Tools Catalog (PDF)Open

Models Available

74 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Max Torque (Ft Lb)	Free Speed (RPM)	Price	Qty
FE034A-08C-AFE034A-08C-A \| Self Feed Drill - 2.14 HP lb-ft Torque Peak	FE034A-08C-A	2.14	842		1	View details
FE034A-10C-AFE034A-10C-A \| Self Feed Drill - 1.88 HP lb-ft Torque Peak$3,352.25	FE034A-10C-A	1.88	959	$3,352.25	1	View details
FE034A-11C-AFE034A-11C-A \| Self Feed Drill - 1.66 HP lb-ft Torque Peak$3,352.25	FE034A-11C-A	1.66	1089	$3,352.25	1	View details
FE034A-12C-AFE034A-12C-A \| Self Feed Drill - 1.5 HP lb-ft Torque Peak$3,352.25	FE034A-12C-A	1.5	1199	$3,352.25	1	View details
FE034A-14C-AFE034A-14C-A \| Self Feed Drill - 1.34 HP lb-ft Torque Peak$3,352.25	FE034A-14C-A	1.34	1350	$3,352.25	1	View details
FE034A-15C-AFE034A-15C-A \| Self Feed Drill - 1.2 HP lb-ft Torque Peak$3,352.25	FE034A-15C-A	1.2	1516	$3,352.25	1	View details
FE034A-17B-AFE034A-17B-A \| Self Feed Drill - 1.07 HP lb-ft Torque Peak$3,352.25	FE034A-17B-A	1.07	1685	$3,352.25	1	View details
FE034A-17C-AFE034A-17C-A \| Self Feed Drill - 1.07 HP lb-ft Torque Peak$3,282.81	FE034A-17C-A	1.07	1699	$3,282.81	1	View details
FE034A-19B-AFE034A-19B-A \| Self Feed Drill - 0.94 HP lb-ft Torque Peak$3,352.25	FE034A-19B-A	0.94	1920	$3,352.25	1	View details
FE034A-19C-AFE034A-19C-A \| Self Feed Drill - 0.94 HP lb-ft Torque Peak$3,352.25	FE034A-19C-A	0.94	1904	$3,352.25	1	View details
FE034A-22B-AFE034A-22B-A \| Self Feed Drill - 0.83 HP lb-ft Torque Peak$3,352.25	FE034A-22B-A	0.83	2178	$3,352.25	1	View details
FE034A-24B-AFE034A-24B-A \| Self Feed Drill - 0.75 HP lb-ft Torque Peak$3,352.25	FE034A-24B-A	0.75	2400	$3,352.25	1	View details
FE034A-27B-AFE034A-27B-A \| Self Feed Drill - 0.67 HP lb-ft Torque Peak$3,352.25	FE034A-27B-A	0.67	2700	$3,352.25	1	View details
FE034A-27C-AFE034A-27C-A \| Self Feed Drill - 0.67 HP lb-ft Torque Peak$3,352.25	FE034A-27C-A	0.67	2700	$3,352.25	1	View details
FE034A-30B-AFE034A-30B-A \| Self Feed Drill - 0.6 HP lb-ft Torque Peak$3,352.25	FE034A-30B-A	0.6	3030	$3,352.25	1	View details
FE034A-30C-AFE034A-30C-A \| Self Feed Drill - 0.6 HP lb-ft Torque Peak$3,282.81	FE034A-30C-A	0.6	2977	$3,282.81	1	View details
FE034A-34B-AFE034A-34B-A \| Self Feed Drill - 0.53 HP lb-ft Torque Peak$3,352.25	FE034A-34B-A	0.53	3398	$3,352.25	1	View details
FE034A-34C-AFE034A-34C-A \| Self Feed Drill - 0.53 HP lb-ft Torque Peak$3,352.25	FE034A-34C-A	0.53	3375	$3,352.25	1	View details
FE034A-38B-AFE034A-38B-A \| Self Feed Drill - 0.47 HP lb-ft Torque Peak$3,432.69	FE034A-38B-A	0.47	3808	$3,432.69	1	View details
FE034A-38C-AFE034A-38C-A \| Self Feed Drill - 0.47 HP lb-ft Torque Peak$3,352.25	FE034A-38C-A	0.47	3845	$3,352.25	1	View details
FE034A-43B-AFE034A-43B-A \| Self Feed Drill - 0.42 HP lb-ft Torque Peak$3,282.81	FE034A-43B-A	0.42	4274	$3,282.81	1	View details
FE034A-54B-AFE034A-54B-A \| Self Feed Drill - 0.33 HP lb-ft Torque Peak$3,352.25	FE034A-54B-A	0.33	5400	$3,352.25	1	View details
FE034A-59B-AFE034A-59B-A \| Self Feed Drill - 0.3 HP lb-ft Torque Peak$3,352.25	FE034A-59B-A	0.3	5954	$3,352.25	1	View details
FE034A-67B-AFE034A-67B-A \| Self Feed Drill - 0.26 HP lb-ft Torque Peak$3,352.25	FE034A-67B-A	0.26	6750	$3,352.25	1	View details
FE034A-77B-AFE034A-77B-A \| Self Feed Drill - 0.23 HP lb-ft Torque Peak$3,352.25	FE034A-77B-A	0.23	7690	$3,352.25	1	View details
FE054C-08C-AFE054C-08C-A \| Self Feed Drill - 2.92 HP lb-ft Torque Peak	FE054C-08C-A	2.92	842		1	View details
FE054C-11C-AFE054C-11C-A \| Self Feed Drill - 2.26 HP lb-ft Torque Peak$3,352.25	FE054C-11C-A	2.26	1089	$3,352.25	1	View details
FE054C-12C-AFE054C-12C-A \| Self Feed Drill - 2.05 HP lb-ft Torque Peak$3,352.25	FE054C-12C-A	2.05	1199	$3,352.25	1	View details
FE054C-14C-AFE054C-14C-A \| Self Feed Drill - 1.82 HP lb-ft Torque Peak$3,352.25	FE054C-14C-A	1.82	1350	$3,352.25	1	View details
FE054C-15C-AFE054C-15C-A \| Self Feed Drill - 1.62 HP lb-ft Torque Peak$3,352.25	FE054C-15C-A	1.62	1516	$3,352.25	1	View details
FE054C-17B-AFE054C-17B-A \| Self Feed Drill - 1.46 HP lb-ft Torque Peak$3,282.81	FE054C-17B-A	1.46	1684	$3,282.81	1	View details
FE054C-17C-AFE054C-17C-A \| Self Feed Drill - 1.46 HP lb-ft Torque Peak$3,436.13	FE054C-17C-A	1.46	1699	$3,436.13	1	View details
FE054C-19B-AFE054C-19B-A \| Self Feed Drill - 1.28 HP lb-ft Torque Peak$3,352.25	FE054C-19B-A	1.28	1918	$3,352.25	1	View details
FE054C-19C-AFE054C-19C-A \| Self Feed Drill - 1.28 HP lb-ft Torque Peak$3,352.25	FE054C-19C-A	1.28	1904	$3,352.25	1	View details
FE054C-22B-AFE054C-22B-A \| Self Feed Drill - 1.13 HP lb-ft Torque Peak$3,352.25	FE054C-22B-A	1.13	2178	$3,352.25	1	View details
FE054C-22C-AFE054C-22C-A \| Self Feed Drill - 1.13 HP lb-ft Torque Peak$3,436.13	FE054C-22C-A	1.13	2137	$3,436.13	1	View details
FE054C-24B-AFE054C-24B-A \| Self Feed Drill - 1.03 HP lb-ft Torque Peak$3,352.25	FE054C-24B-A	1.03	2398	$3,352.25	1	View details
FE054C-24C-AFE054C-24C-A \| Self Feed Drill - 1.03 HP lb-ft Torque Peak$3,352.25	FE054C-24C-A	1.03	2400	$3,352.25	1	View details
FE054C-27B-AFE054C-27B-A \| Self Feed Drill - 0.91 HP lb-ft Torque Peak$3,352.25	FE054C-27B-A	0.91	2700	$3,352.25	1	View details
FE054C-27C-AFE054C-27C-A \| Self Feed Drill - 0.91 HP lb-ft Torque Peak$3,352.25	FE054C-27C-A	0.91	2700	$3,352.25	1	View details
FE054C-30B-AFE054C-30B-A \| Self Feed Drill - 0.81 HP lb-ft Torque Peak$3,352.25	FE054C-30B-A	0.81	3031	$3,352.25	1	View details
FE054C-30C-AFE054C-30C-A \| Self Feed Drill - 0.81 HP lb-ft Torque Peak$3,352.25	FE054C-30C-A	0.81	2977	$3,352.25	1	View details
FE054C-34B-AFE054C-34B-A \| Self Feed Drill - 0.72 HP lb-ft Torque Peak$3,352.25	FE054C-34B-A	0.72	3398	$3,352.25	1	View details
FE054C-34C-AFE054C-34C-A \| Self Feed Drill - 0.72 HP lb-ft Torque Peak$3,352.25	FE054C-34C-A	0.72	3375	$3,352.25	1	View details
FE054C-38B-AFE054C-38B-A \| Self Feed Drill - 0.65 HP lb-ft Torque Peak$3,352.25	FE054C-38B-A	0.65	3808	$3,352.25	1	View details
FE054C-38C-AFE054C-38C-A \| Self Feed Drill - 0.65 HP lb-ft Torque Peak$3,352.25	FE054C-38C-A	0.65	3845	$3,352.25	1	View details
FE054C-43B-AFE054C-43B-A \| Self Feed Drill - 0.57 HP lb-ft Torque Peak$3,352.25	FE054C-43B-A	0.57	4274	$3,352.25	1	View details
FE054C-48B-AFE054C-48B-A \| Self Feed Drill - 0.51 HP lb-ft Torque Peak$3,352.25	FE054C-48B-A	0.51	4800	$3,352.25	1	View details
FE054C-54B-AFE054C-54B-A \| Self Feed Drill - 0.46 HP lb-ft Torque Peak$3,282.81	FE054C-54B-A	0.46	5400	$3,282.81	1	View details
FE054C-59B-AFE054C-59B-A \| Self Feed Drill - 0.41 HP lb-ft Torque Peak$3,352.25	FE054C-59B-A	0.41	5954	$3,352.25	1	View details
FE054C-67B-AFE054C-67B-A \| Self Feed Drill - 0.36 HP lb-ft Torque Peak$3,352.25	FE054C-67B-A	0.36	6750	$3,352.25	1	View details
FE054C-77B-AFE054C-77B-A \| Self Feed Drill - 0.32 HP lb-ft Torque Peak$3,352.25	FE054C-77B-A	0.32	7690	$3,352.25	1	View details
FE074B-08C-AFE074B-08C-A \| Self Feed Drill - 4.38 HP lb-ft Torque Peak	FE074B-08C-A	4.38	842		1	View details
FE074B-11C-AFE074B-11C-A \| Self Feed Drill - 3.39 HP lb-ft Torque Peak$3,484.25	FE074B-11C-A	3.39	1089	$3,484.25	1	View details
FE074B-14C-AFE074B-14C-A \| Self Feed Drill - 2.73 HP lb-ft Torque Peak$3,557.13	FE074B-14C-A	2.73	1350	$3,557.13	1	View details
FE074B-15C-AFE074B-15C-A \| Self Feed Drill - 2.43 HP lb-ft Torque Peak$3,557.13	FE074B-15C-A	2.43	1516	$3,557.13	1	View details
FE074B-17B-AFE074B-17B-A \| Self Feed Drill - 2.19 HP lb-ft Torque Peak$3,402.44	FE074B-17B-A	2.19	1684	$3,402.44	1	View details
FE074B-17C-AFE074B-17C-A \| Self Feed Drill - 2.19 HP lb-ft Torque Peak$3,557.13	FE074B-17C-A	2.19	1699	$3,557.13	1	View details
FE074B-19C-AFE074B-19C-A \| Self Feed Drill - 1.92 HP lb-ft Torque Peak$3,484.25	FE074B-19C-A	1.92	1904	$3,484.25	1	View details
FE074B-22B-AFE074B-22B-A \| Self Feed Drill - 1.7 HP lb-ft Torque Peak	FE074B-22B-A	1.7	2178		1	View details
FE074B-22C-AFE074B-22C-A \| Self Feed Drill - 1.7 HP lb-ft Torque Peak$3,393.85	FE074B-22C-A	1.7	2137	$3,393.85	1	View details
FE074B-24B-AFE074B-24B-A \| Self Feed Drill - 1.55 HP lb-ft Torque Peak$3,402.44	FE074B-24B-A	1.55	2398	$3,402.44	1	View details
FE074B-27B-AFE074B-27B-A \| Self Feed Drill - 1.37 HP lb-ft Torque Peak$3,402.44	FE074B-27B-A	1.37	2700	$3,402.44	1	View details
FE074B-27C-AFE074B-27C-A \| Self Feed Drill - 1.37 HP lb-ft Torque Peak$3,557.13	FE074B-27C-A	1.37	2700	$3,557.13	1	View details
FE074B-30B-AFE074B-30B-A \| Self Feed Drill - 1.22 HP lb-ft Torque Peak$3,402.44	FE074B-30B-A	1.22	3031	$3,402.44	1	View details
FE074B-30C-AFE074B-30C-A \| Self Feed Drill - 1.22 HP lb-ft Torque Peak$3,557.13	FE074B-30C-A	1.22	2977	$3,557.13	1	View details
FE074B-34B-AFE074B-34B-A \| Self Feed Drill - 1.08 HP lb-ft Torque Peak$3,402.44	FE074B-34B-A	1.08	3398	$3,402.44	1	View details
FE074B-34C-AFE074B-34C-A \| Self Feed Drill - 1.08 HP lb-ft Torque Peak$3,557.13	FE074B-34C-A	1.08	3375	$3,557.13	1	View details
FE074B-38B-AFE074B-38B-A \| Self Feed Drill - 0.98 HP lb-ft Torque Peak	FE074B-38B-A	0.98	3808		1	View details
FE074B-38C-AFE074B-38C-A \| Self Feed Drill - 0.98 HP lb-ft Torque Peak$3,557.13	FE074B-38C-A	0.98	3845	$3,557.13	1	View details
FE074B-43B-AFE074B-43B-A \| Self Feed Drill - 0.86 HP lb-ft Torque Peak$3,487.69	FE074B-43B-A	0.86	4274	$3,487.69	1	View details
FE074B-54B-AFE074B-54B-A \| Self Feed Drill - 0.69 HP lb-ft Torque Peak	FE074B-54B-A	0.69	5400		1	View details
FE074B-59B-AFE074B-59B-A \| Self Feed Drill - 0.62 HP lb-ft Torque Peak	FE074B-59B-A	0.62	5954		1	View details
FE074B-77B-AFE074B-77B-A \| Self Feed Drill - 0.48 HP lb-ft Torque Peak	FE074B-77B-A	0.48	7690		1	View details

Overview

Ingersoll Rand Electric Self Feed Drills

Ingersoll Rand electric self feed drills provide the selection, performance and degree of precision to automate a wide range of secondary machining applications simply and economically. Mounted in fixtures or production cells, they advance, drill and retract on their own for repeatable holes without a dedicated machine tool.

Three Families, Many Speeds

The FE034A, FE054C and FE074B families are offered in a wide range of spindle speeds, with drilling capacities published by material, from stainless steel and alloy steel to aluminum, wood and FRP.

Flexible Assembly Systems can help you select the right self feed drill and integrate it into your fixture or automation cell. Contact our team for pricing, availability and application support.

Features & Benefits
Automates secondary drilling operations
Electric drive
FE034A and FE054C and FE074B families
Wide range of spindle speeds
Capacities published by material
For fixtures and automation cells
