Air Engraving Pen, 13000 BPM
Industrial-grade precision and control—the Ingersoll Rand EP51 Air Engraving Pen handles fine to coarse marking on metals, ceramics, and hard alloys with durable, vibration-dampening steel housing.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview

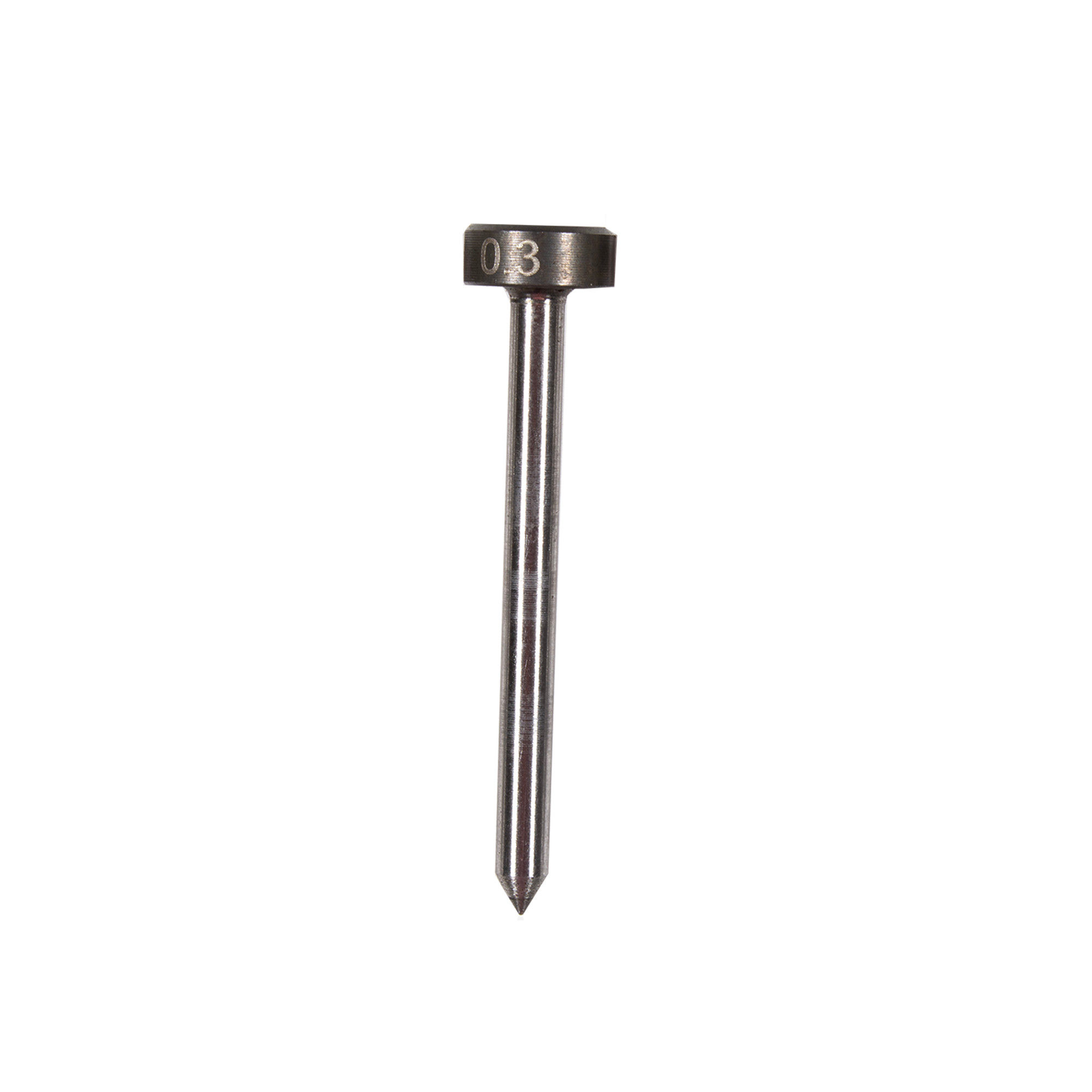

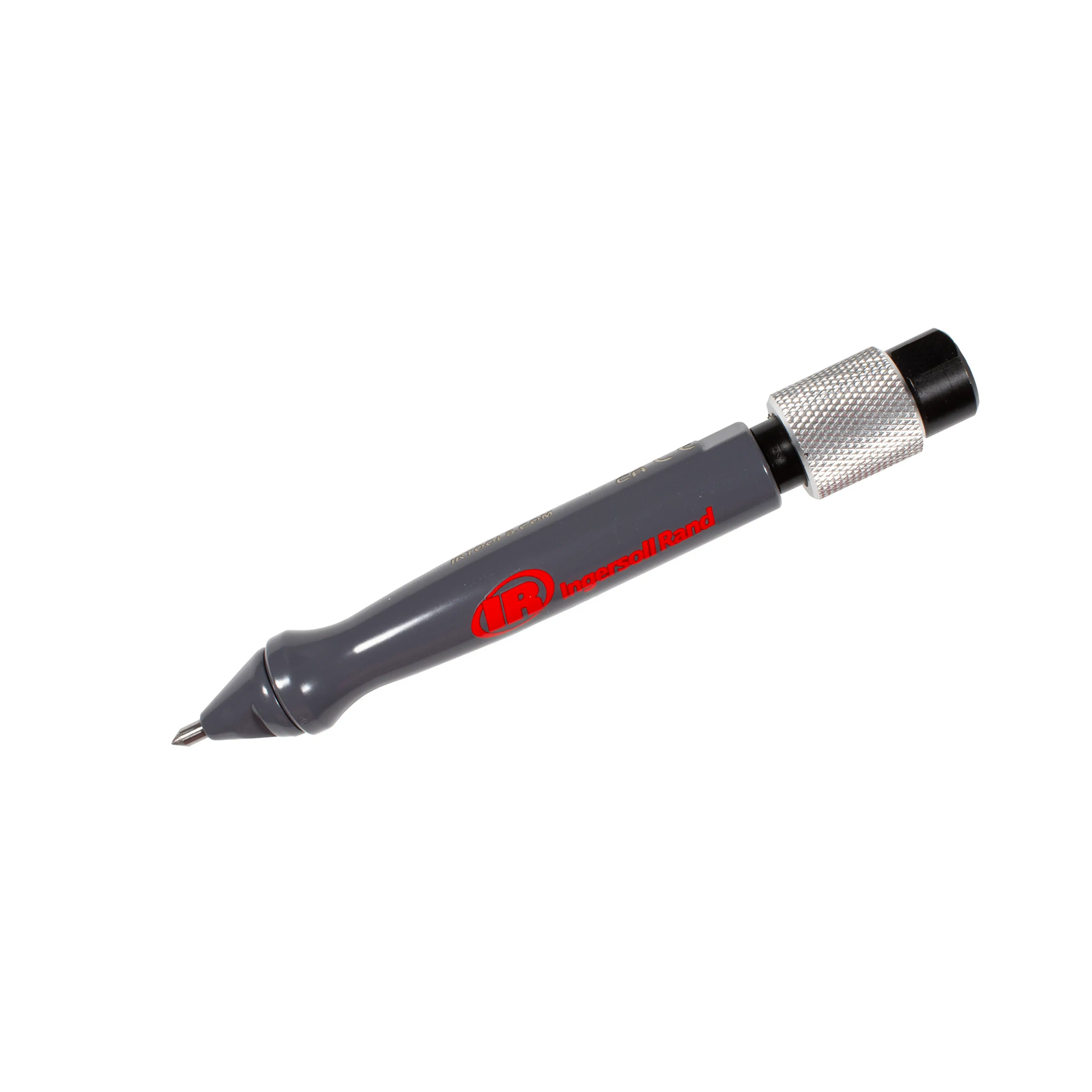

The Ingersoll Rand EP51 Air Engraving Pen delivers precision and control for industrial marking tasks on a wide range of materials. Equipped with three carbide-tipped styluses—fine, medium, and coarse—and a knurled zoom throttle, the EP51 allows operators to engrave even the smallest details with confidence and accuracy. Its rugged steel housing is built to withstand harsh environments while dampening vibration for comfortable, all-day use.
Designed for versatility, the EP51 handles everything from brittle ceramics to hardened alloys, making it ideal for metal fabrication, aerospace, automotive, and maintenance applications. The tool’s ergonomic design, combined with the flexible hose, ensures ease of movement and precise control across complex surfaces.
Also available as the EP51K Kit, which includes the EP51 pen, three styluses (fine, medium, coarse), molded plastic carry case, and flexible hose for maximum convenience and portability.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Sound Pressure | 75/86 |
| Vibration Level | 4.6 |
| Duty Rating | Industrial Duty |
| Air Inlet Size | 1/8" NPT |
| Min Hose Size | Jul-32 |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 1.5 |
| Vibration Uncertainty | 1.07 |
| Weight (lbs) | 0.31 |
| Weight (kg) | 0.14 |
| Length (in) | 5.68 |
| Length (mm) | 144 |
| Width (in) | 0.62 |
| Width (mm) | 16 |
| Height (in) | 0.62 |
| Height (mm) | 16 |
| Housing Material | Steel |
| Color | Grey |
| Configuration | Straight |
| MPN | EP51 |
| Features & Benefits | |
| A knurled, variable zoom throttle acts as a regulator for greater control across a wide range of materials. | |
| Steel housing dampens vibration and a flexible hose allows for easy movement. | |
| Housing made of steel for even the harshest environments while engraving the hardest materials. | |
