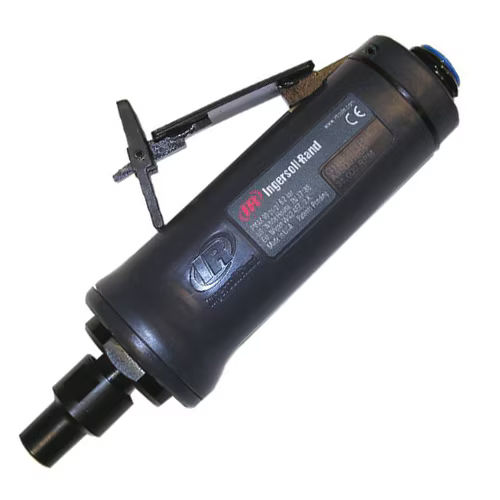

G1 Straight Grinders
The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
13 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Vibration Level | Sound Pressure | Price | Qty | |
|---|---|---|---|---|---|
 G1H200PG4MG1H200PG4M | Die Grinder, Collett - 6 mm, 20000 rpm$457.06 | 2.9 | 78.5 / 89.5 | $457.06 | 1 | View details |
| G1H250PG4MG1H250PG4M | Die Grinder, Collett - 6 mm, 25000 rpm$469.94 | 2.5 | 79.2 / 90.2 | $469.94 | 1 | View details |
 G1H250PH63G1H250PH63 | G1 ANGLE GRINDER, 3'' TYPE 1 WHEEL$556.43 | 10.7 | — | $556.43 | 1 | View details |
Details
Product information
Overview
At 0.40 hp (0.30 kW), the G1-Series packs a lot of power in a small package. Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks. The G1-Series also features low noise and vibration levels and one-nut access for all motor servicing.
- Improved efficiency means big power in a small package
- Ergonomic D-shaped handle for operator comfort
- Laser-etched product information won't wear off
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
- A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )
- 120 = Free Speed (12,000 rpm)
- R = Exhaust Direction (R - rear, F - front, P - piped away)
- P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
- 10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
- 45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard)
- Dual exhaust capabilities
- Ergonomic low-profile locking throttle lever for operator safety
- Composite housing prevent cold feel for operator comfort
- Easy to service one nut removal for motor repair
| Features & Benefits | |
|---|---|
| Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks | |
| Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication | |
| Ideal for light material removal | |
| cleaning rough castings | |
| deburring parts | |
| cleaning up welds | |
| and other finishing tasks | |
| Optimized for general industrial use | |
| MRO | |
| rail | |
| heavy machinery | |
| oil and gas | |
| shipbuilding | |
| construction | |
| aerospace | |
| and metal fabrication |
