Hydraulic Offshore Winch, 330 lb capacity, 98 fpm, Rope length
LS2-150HLP-L | Hydraulic Offshore Winch, 330 lb capacity, 98 fpm, Rope length
A specialist replies within one business day.
Details
Product information
Overview

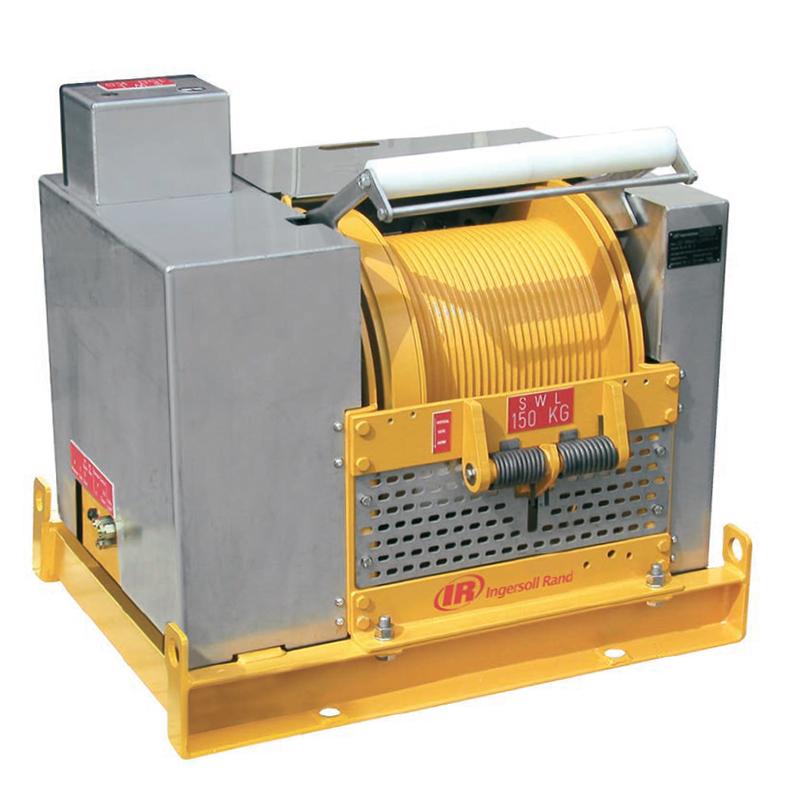

Ingersoll Rand Hydraulic Offshore Winch, 330 lb capacity, 98 fpm, Rope length
LS2-150HLP-L
The Ingersoll Rand hydraulic Man Rider® winch is specifically designed to minimize the risks of lifting people in offshore environments. Its built-in safety features such as emergency stop, emergency lifting and adjustable limit switches meet or exceed strict safe-lifting standards. And to ensure it continues performing, it utilizes a tough, full-stainless steel enclosure and true, marine-grade paint to stand up to the harsh offshore environment. Designed to meet the latest regulations including CE, ATEX and ABS/DNV type approval, Ingersoll Rand's Hydraulic Man Rider® winch will help you lift your personnel safely.
Features:
- Durability
- Stainless Steel Enclosure protects moving parts from the elements
- Marine grade paint provides superior corrosion resistance
- 10:1 Design Factor for extra-long life
- Safety
- Automatic Multi-Disc Brake and Automatic Drum Brake provide the safety of two independent braking systems
- Slack line prevention system automatically stops the winch from paying out in case of slack wire
- Built-in limit switches prevents raising or lowering past set limits
- Performance
- Helical Grooved Drum assists with wire rope spooling
- Press Roller assists with wire rope spooling
- Designed to meet the latest regulations including CE, ATEX and DNV type approval
| Technical Specifications | |
|---|---|
| Application | Onshore, Offshore, Marine |
| SPEED (FT/MIN) | 98 |
| Type | Hydraulic Offshore Winch |
| Manufacturer | Ingersoll Rand |
| SKU | LS2-150HLP-L |
| Weight (lbs) | 838 |
| Rated Flow | 2.64 gpm |
| Operating Pressure | 1523 psi |
| Rope Diameter | 3/8 in. |
| Series | LS2-150 Hydraulic Offshore Man Rider® |
| Capacity (lbs) | 330 |
| MPN | LS2-150HLP-L |
