Ingersoll RandLS2-150HLR-L
Hydraulic Onshore Winch, 330 lb capacity, 98 fpm, Rope length
LS2-150HLR-L | Hydraulic Onshore Winch, 330 lb capacity, 98 fpm, Rope length
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
LS2-150HLR-L | Hydraulic Onshore Winch, 330 lb capacity, 98 fpm, Rope lengthLS2-150HLR-L
Price on request
Details
Product information
Overview

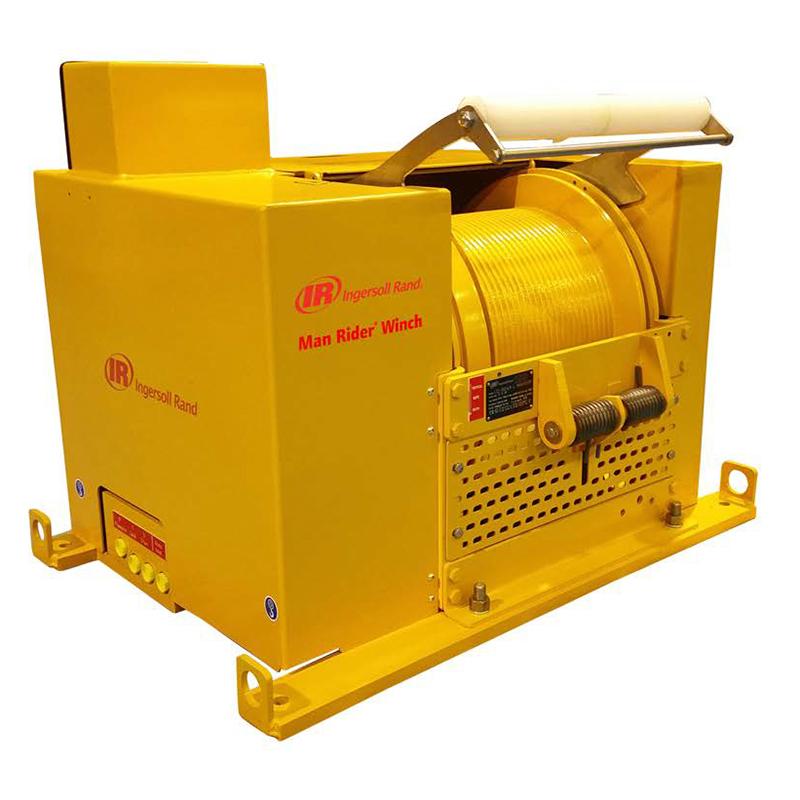

Ingersoll Rand Hydraulic Onshore Winch, 330 lb capacity, 98 fpm, Rope length
LS2-150HLR-L
The Ingersoll Rand LS2-150 Hydraulic Land Rig Man Rider® is designed as a cost-effective solution for lifting people on land rigs. ItÂ’s built-in safety features and rugged construction make this a durable winch no matter where your land rig operates.
Features:
- Durability
- Stainless Steel Enclosure protects moving parts from the elements
- Marine grade paint provides superior corrosion resistance
- 10:1 Design Factor for extra-long life
- Safety
- Automatic Multi-Disc Brake and Automatic Drum Brake provide the safety of two independent braking systems
- Slack line prevention system automatically stops the winch from paying out in case of slack wire
- Built-in limit switches prevents raising or lowering past set limits
- Performance
- Helical Grooved Drum assists with wire rope spooling
- Press Roller assists with wire rope spooling
- Designed to meet the latest regulations including CE, ATEX and DNV type approval
| Technical Specifications | |
|---|---|
| Application | Onshore, Offshore, Marine |
| SPEED (FT/MIN) | 98 |
| Type | Hydraulic Onshore Winch |
| Manufacturer | Ingersoll Rand |
| SKU | LS2-150HLR-L |
| Weight (lbs) | 838 |
| Rated Flow | 2.64 gpm |
| Operating Pressure | 1523 psi |
| Rope Diameter | 3/8 in. |
| Series | LS2-150 Hydraulic Land Rig Man Rider® |
| Capacity (lbs) | 330 |
| MPN | LS2-150HLR-L |
