IC12M Insight Modular Controller
The Insight IC-D and IC-M Fastening Systems are electronic tightening controllers that can be programmed to operate Ingersoll-Rand QE- and QM-series spindles, depending on the model, to perform repetitive fastening operations.
Details
Product information
Overview

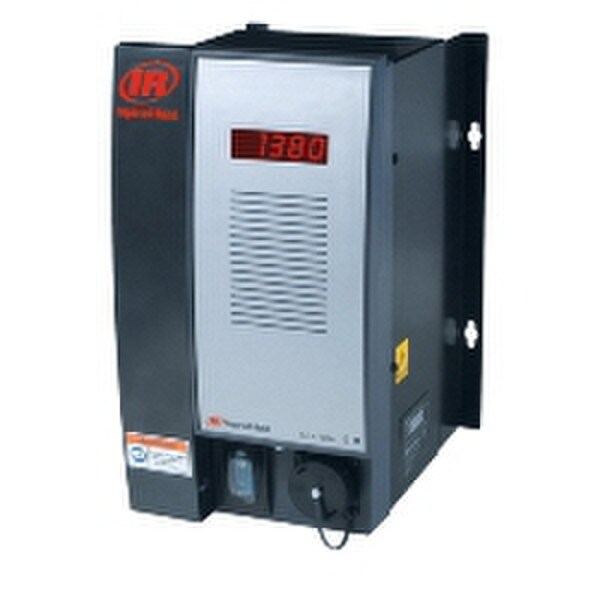

Ingersoll Rand IC12M Insight Modular Controller
The IC12M Series of controllers give you full closed loop-control in an industry leading compact size. With standard features like multiple torque strategies, digital display and Parameter Transfer Key, the IC1M units provide unmatched performance and value. These controllers have full communication capability using Ethernet, RS232, Fieldbus or standard I/O. Units may be programmed either with the Parameter transfer Key or via a PC running ICS software. A 0 to 60 degree C (32 to 140 F) internal operating range allow these units to be used in the most demanding conditions without risk of overheating.IC12M Controllers will self identify and operate all QE and QM Series of tools making set-up and operation an easy task.
| Features & Benefits | |
|---|---|
| One Line digital display | |
| Ethernet, RS232 and I/O communication | |
| DeviceNet and Profibus available | |
| Dual mode power supply: 90 - 120 VAC and 200 - 240 VAC | |
| Ethernet | |
| RS232 and I/O communication |
