Impact Wrench, 1 in. square drive, 1600 ft lbs
With a steel hammer case and metal housing, the 290 Series is built for heavy duty jobs. Through repeated drops in the garage or harsh outdoor weather conditions, this wrench will see you through every job.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 C38341-810C38341-810 | 3-piece combo FRL, 1/2'' NPT, Metal bowl w/sight glass, Manual drain$362.70 | ARO | — | $362.70 | 1 | View details |
| C38351-811C38351-811 | 3-piece combo FRL, 3/4'' NPT, Metal bowl w/sight glass, Automatic drain$478.80 | ARO | — | $478.80 | 1 | View details |
| C383D1-810C383D1-810 | 3-piece combo FRL, 1/2'' BSP, Metal bowl w/sight glass, Manual drain$424.80 | ARO | 4.54 | $424.80 | 1 | View details |
 SK8H8SK8H8 | 1'' Drive standard set, 8 pieces$100.36 | Ingersoll Rand | 14.00 | $100.36 | 1 | View details |
Details
Product information
Overview

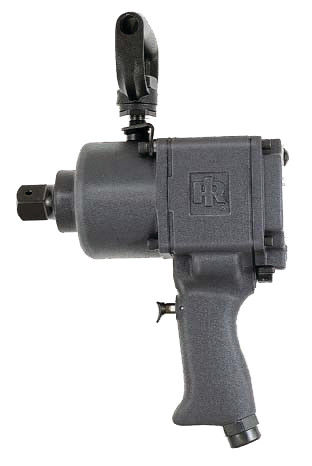

Ingersoll Rand Impact Wrench, 1 in. square drive, 1600 ft lbs
Impact Wrench, 1 in. square drive, 1600 ft lbs, model 290 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
290 by Ingersoll Rand
The 290 Impact Wrench has a 1 in. square drive and a free speed of 6000 rpm.
With the ability to go up to 800 bpm, The Ingersoll Rand 290 can go up to a maximum torque of 1600 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 22.7 |
| Duty Rating | Super Duty |
| Air Inlet Size | 1/2" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 55 |
| Avg Air Consumption | 10 |
| Retainer | Thru-hole |
| Drive Size | 1 |
| Max Torque (ft-lb) | 1600 |
| Max Torque (in-lb) | 19197 |
| Max Torque (Nm) | 2169 |
| Free Speed (RPM) | 6000 |
| Drive Type | Square |
| Mechanism | Jumbo Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Non-Biased |
| Weight (lbs) | 21.9 |
| Weight (kg) | 9.93 |
| Length (in) | 9.75 |
| Length (mm) | 248 |
| Housing Material | Impact and chemical-resistant composite housing and patented steel reinforced frame |
| Color | Grey |
| Handle Material | Composite |
| Configuration | Pistol Grip |
| MPN | 290 |
| Features & Benefits | |
| Great Power-to-Weight Ratio | |
| Work with minimal exertion | |
| Increased control without increased effort | |
