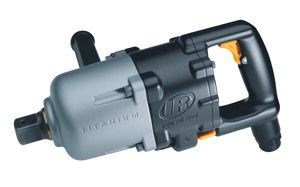

Impact Wrench, 1 in. square drive, 2500 ft lbs, outside trigger
With a titanium hammercase, bronze end plates and torque up to 2500 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFWarrantyOpen
- PDFManualsOpen
- PDFProductInfoOpen
- PDFPartInfoOpen
- PDFMaintenanceInfoOpen
- PDFIngersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)Open
- PDFIngersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)Open
- PDFIngersoll Rand Air Impact Wrench Safety Information (PDF)Open
- PDFIngersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)Open
Recommended Accessories
7 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Manufacturer | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 10G10G | Air Tool Lubricant, Class 1 #10, 1 Gallon$76.76 | Ingersoll Rand | 7.30 | $76.76 | 1 | View details |
 10GW10GW | Air Tool Lubricant and Antifreeze, Class 1 #10, 1 Gallon$109.75 | Ingersoll Rand | 9.20 | $109.75 | 1 | View details |
 10P10P | Air Tool Lubricant, Class 1 #10, 1 Pint$15.48 | Ingersoll Rand | 0.90 | $15.48 | 1 | View details |
 10Z410Z4 | Air Tool Oil, 4oz.$9.43 | Ingersoll Rand | 0.27 | $9.43 | 1 | View details |
 3940-TK13940-TK1 | 3940-Tk1-Tune Up Kit$215.00 | Ingersoll Rand | 0.5 | $215.00 | 1 | View details |
 C38351-811C38351-811 | 3-piece combo FRL, 3/4'' NPT, Metal bowl w/sight glass, Automatic drain$478.80 | ARO | — | $478.80 | 1 | View details |
 SK8H8SK8H8 | 1'' Drive standard set, 8 pieces$100.36 | Ingersoll Rand | 14.00 | $100.36 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand Impact Wrench, 1 in. square drive, 2500 ft lbs, outside trigger
Impact Wrench, 1 in. square drive, 2500 ft lbs, outside trigger, model 3940A2Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3940A2Ti by Ingersoll Rand
The 3940A2Ti Impact Wrench has a 1 in. square drive and a free speed of 6000 rpm.
With the ability to go up to 800 bpm, The Ingersoll Rand 3940A2Ti can go up to a maximum torque of 2500 ft lbs.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Vibration Level | 13.1 |
| Duty Rating | Super Duty |
| Air Inlet Size | 1/2" NPT |
| Min Hose Size | 3/4" |
| Air Pressure (PSI) | 90 |
| Avg Air Consumption | 64 |
| Retainer | Thru-hole |
| Drive Size | 1 |
| Max Torque (ft-lb) | 2750 |
| Max Torque (in-lb) | 33004 |
| Max Torque (Nm) | 3729 |
| Free Speed (RPM) | 6000 |
| Drive Type | Square |
| Mechanism | Twin Hammer |
| Exhaust Direction | Bottom |
| Motor Type | Reverse Bias |
| Vibration Uncertainty | 1.6 |
| Weight (lbs) | 21.2 |
| Weight (kg) | 9.62 |
| Length (in) | 13.5 |
| Length (mm) | 343 |
| Housing Material | Aluminum |
| Color | Grey |
| Configuration | D-Handle |
| MPN | 3940A2Ti |
| Features & Benefits | |
| Corrosion and wear resistant | |
| Can withstand the harshest conditions | |
| Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding | |
| Optimized for general industrial use | |
| MRO | |
| rail | |
| heavy machinery | |
| and shipbuilding | |
